Foreword

Feature

• 6-in-1 Integrated Design: 6 ESCs on a single board for compact hexacopter builds
• High Current Handling: 80A/100A continuous, 90A/110A burst current
• Wide Voltage Compatibility: 2–8S LiPo battery support
• 32-bit Firmware: BLHeli_32 / BlueJay (BLHeli_S) options for smooth throttle response
• Integrated Current Sensor: Real-time current monitoring (scale 100)
• Overheat & Overcurrent Protection: Built-in safety mechanisms
• Aluminum Heatsink: Efficient heat dissipation and dust protection
• Standard Mounting: 30.5×30.5mm hole spacing (M3)
• Direct PWM Support: Accepts standard 1000–2000μs RC PWM signals (per channel)
• No BEC Design: Direct high-power delivery for heavy loads
• Easy Installation: Solder pads + optional MR60PW connectors for motors
• Plug-and-Play FC Connection: 12-pin dedicated cable included

Recommended Configuration

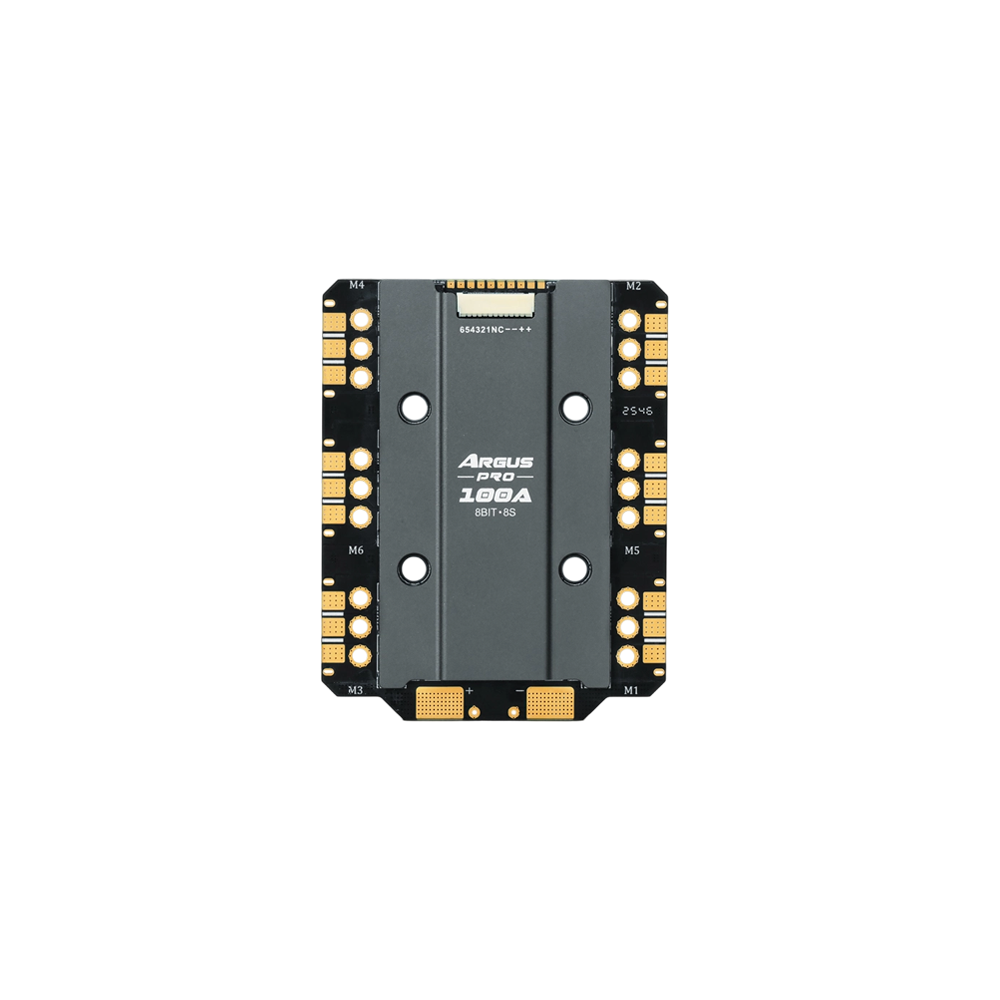

• Model: Argus Pro 8S 80A/100A 6-in1 ESC
• Input Voltage: 2–8S LiPo
• Continuous Current: 80A / 100A
• Burst Current: 90A / 110A
• Application: 13–15 inch hexacopters, heavy-lift drones, industrial FPV platforms
• Mount: 30.5×30.5mm (M3)

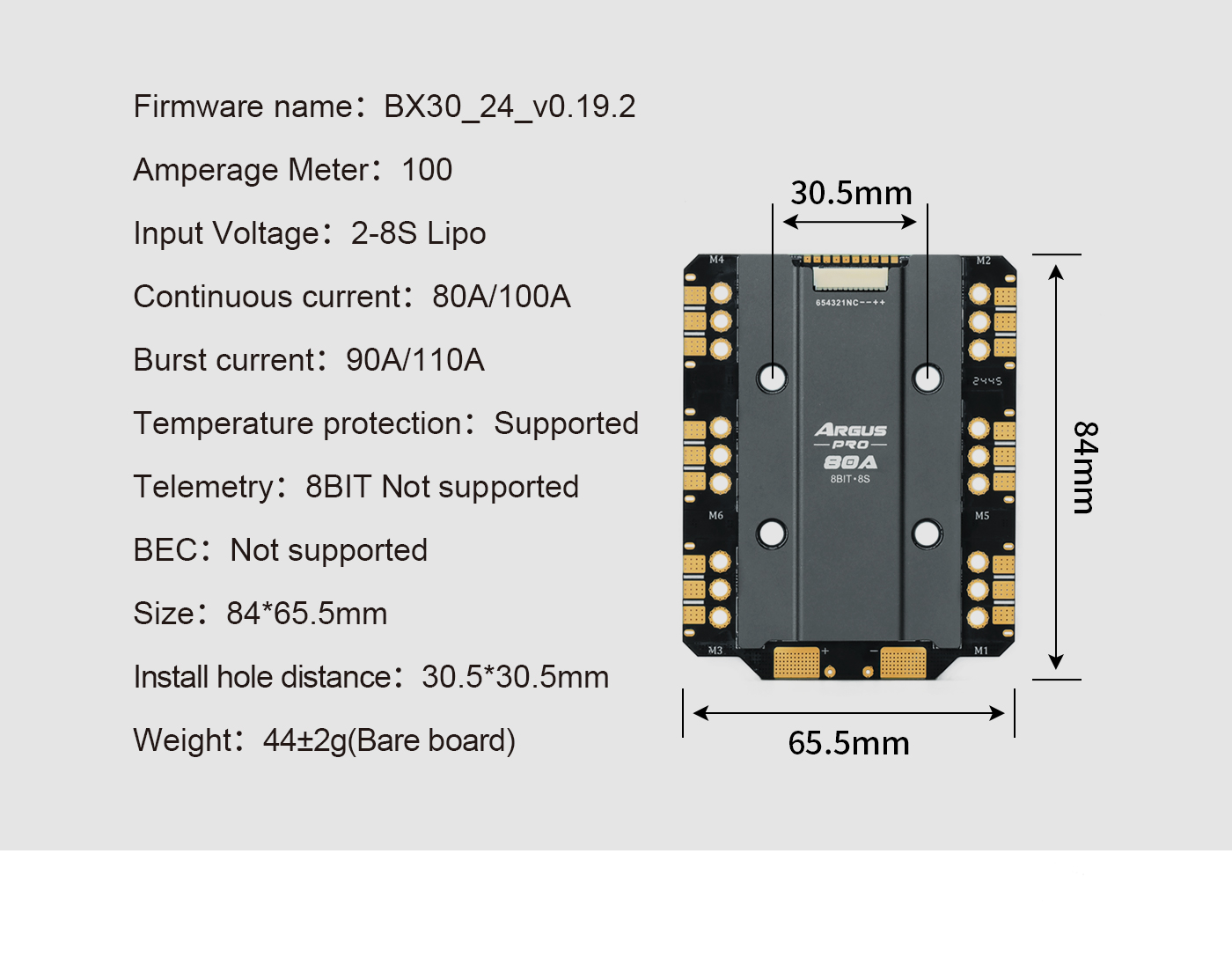

Specifications

• Model: Argus Pro 8S 80A/100A 6-in1 ESC
• Firmware: BLHeli_32 / BlueJay (BLHeli_S)
• MCU: 32-bit
• Input Voltage: 2–8S LiPo
• Continuous Current: 80A / 100A
• Burst Current: 90A / 110A
• Current Sensor: Yes (scale 100)
• BEC: Not supported
• Signal Input: Standard RC PWM (1000–2000μs, 50Hz, per channel)
• Motor Channels: 6 (S1–S4 + S5–S6 on pads)
• Size: 84 × 65.5 × 7mm
• Install Hole Distance: 30.5 × 30.5mm (M3)
• Weight: 44g (approx.)
• Protection: Overheat, overcurrent, voltage surge
• Heat Dissipation: CNC aluminum alloy heatsink

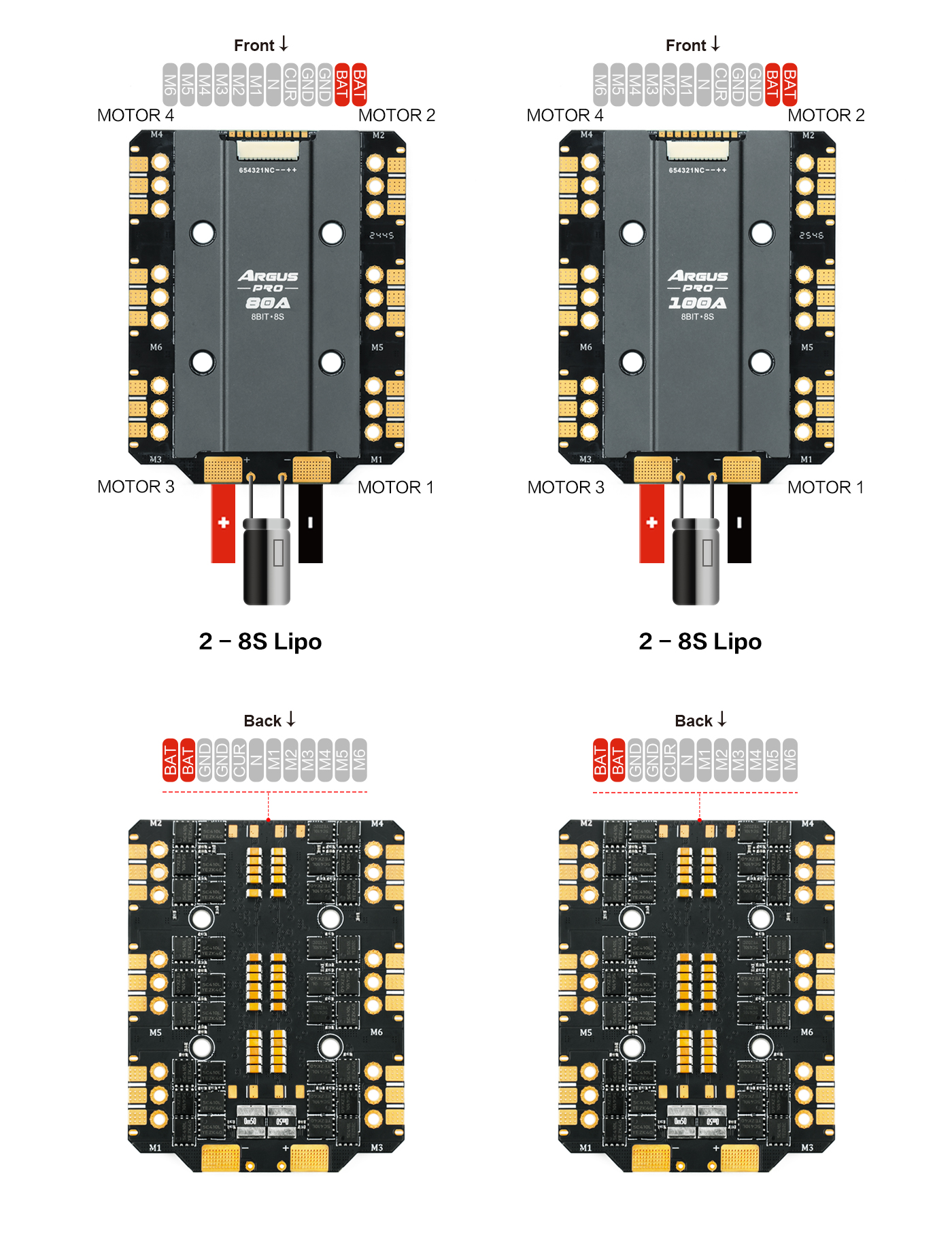

Interface Definition (Pads & Wiring)

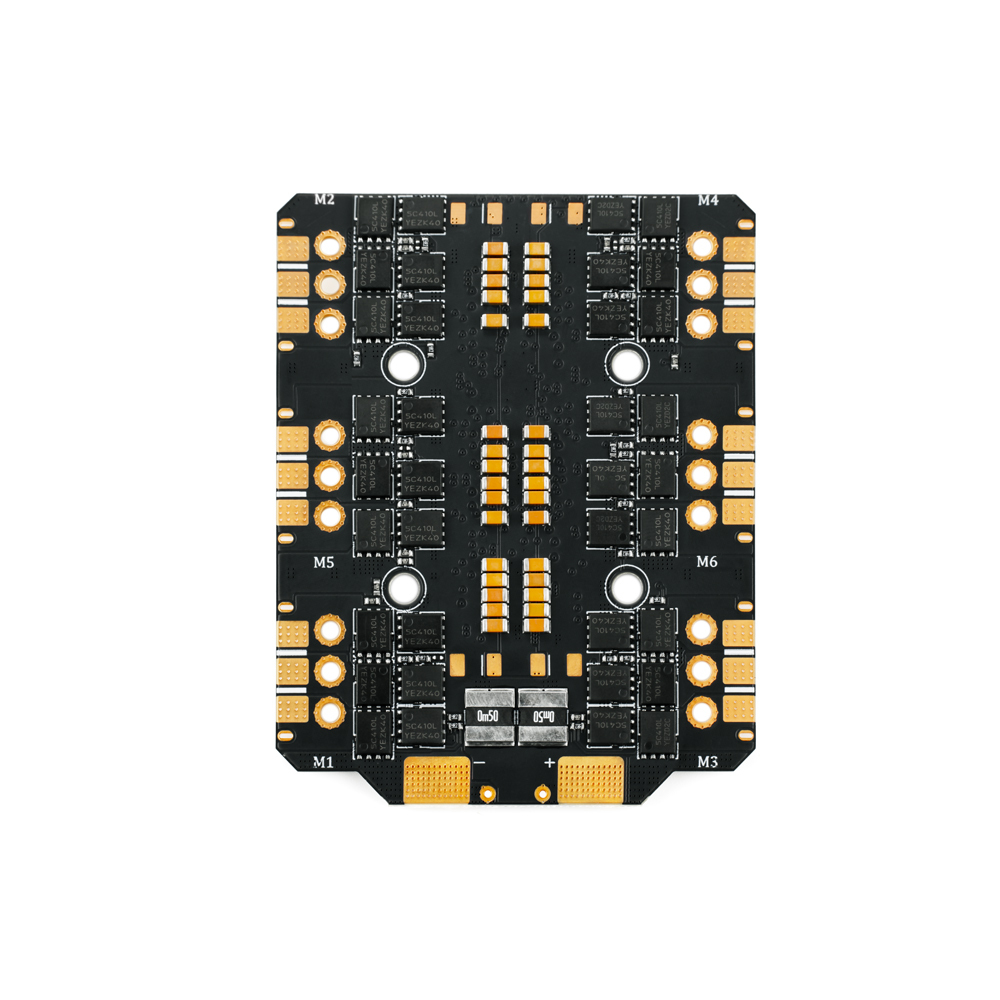

Signal Pads (Bottom Side)

• S1–S6: Motor 1–6 throttle signal input (PWM)
• GND: Common ground (for all signal channels)
• VBAT: Main battery voltage (2–8S)
• CAP: External capacitor solder pads

Motor Outputs

• M1–M6: 3-phase motor solder pads (per channel)

FC Connection

• 12-pin dedicated cable (non-standard) for full ESC–FC communication

Direct PWM Operation (No FC)

• Connect servo tester/RC receiver PWM outputs to S1–S6
• Common GND between ESC and signal source
• No throttle calibration required (factory default 1000–2000μs)

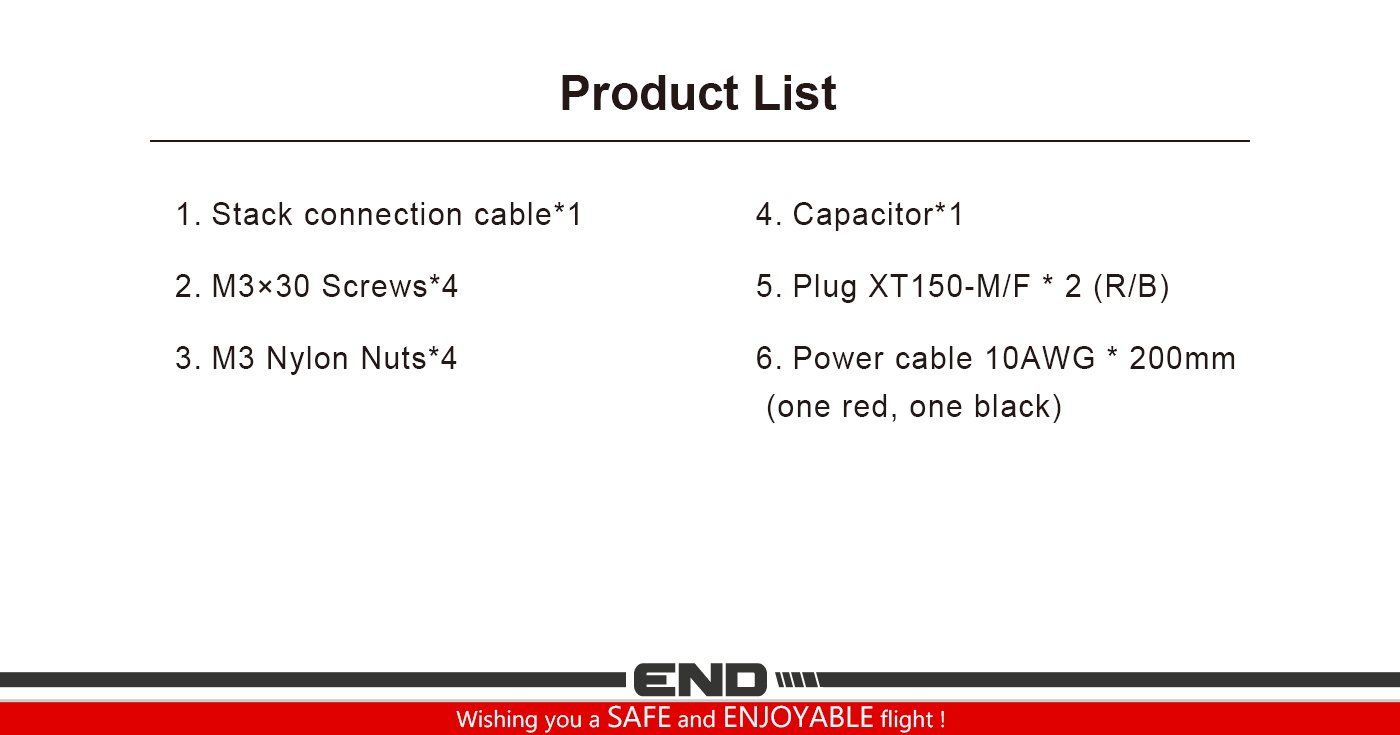

Package Contents

1. Argus Pro 8S 6-in1 ESC ×1
2. 12-pin FC connecting cable ×1
3. M3×30 screws ×4
4. M3 nylon nuts ×4
5. XT150 connectors ×2
6. 10AWG power cables (200mm) ×2
7. External capacitor ×1
