Foreword

Features

• CNC aluminum alloy housing: Efficient heat dissipation & full component protection
• 8-bit/32-bit compatible: Supports BLHeli32 (32-bit) / Bluejay (8-bit) firmware
• Precise throttle control: Linear, smooth output for cinematic shooting
• Heavy-load durability: 100A continuous / 110A burst current capability
• Multi-protection: Over-current, over-temperature, over/under-voltage safeguards
• Standard mounting: 30.5×30.5mm hole spacing for stack compatibility
• High-quality MOSFETs: Strong instantaneous load capacity & long-term stability

Recommended Configuration

• Model: Argus Pro Eco 100A
• Application: 13–15 inch long-range / cinematic / heavy-load FPV drones
• Voltage: 4–8S LiPo
• Firmware: BLHeli32 (32-bit) / Bluejay (8-bit)
• Mount: 30.5×30.5mm

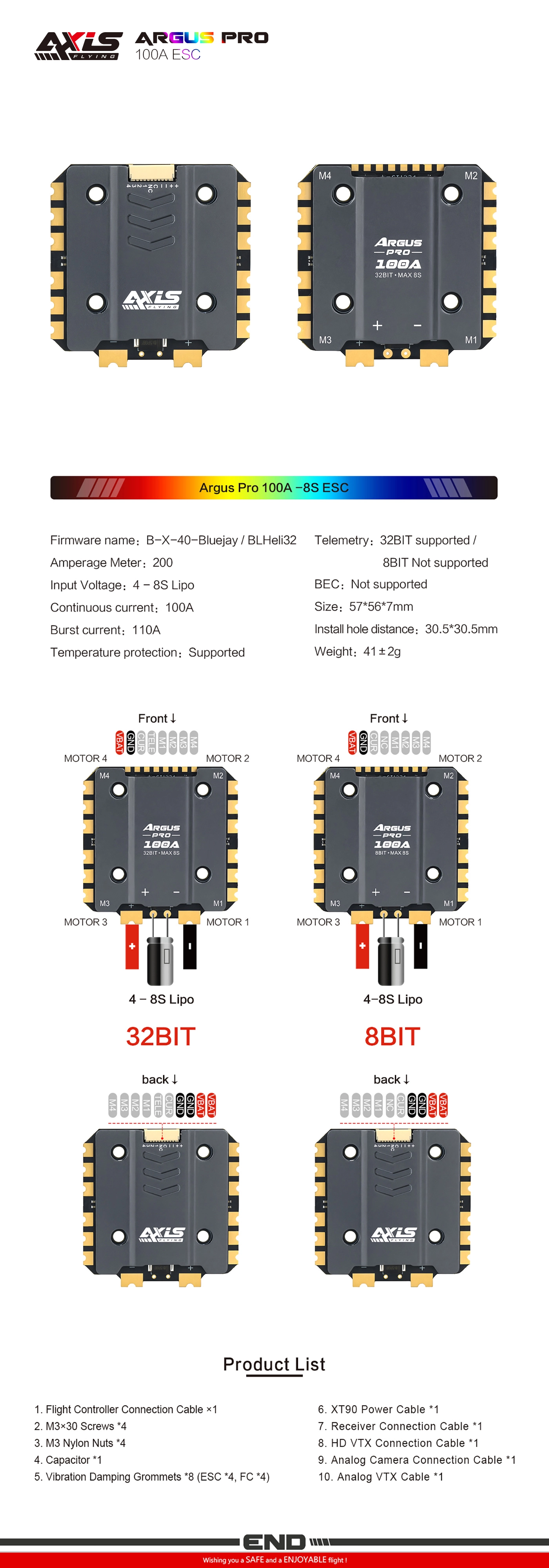

Specifications

• Model: Argus Pro Eco 100A
• Continuous Current: 100A
• Burst Current: 110A
• Input Voltage: 4–8S LiPo
• Firmware Support: BLHeli32 / Bluejay
• Telemetry: 32-bit supported; 8-bit not supported
• Amperage Meter: 200A (32-bit only)
• BEC: Not supported
• Protection: Over-current, over-temperature, over/under-voltage
• Size: 57×56×7mm
• Weight: 41±2g
• Mounting Holes: 30.5×30.5mm

Package Contents

1. Argus Pro Eco 100A ESC ×1
2. XT90 Power Cable ×1
3. Flight Controller Cables (Analog/HD/VTX/RX) ×1 set
4. Capacitor ×1
5. M3 Mounting Screws & Damping Grommets ×4 sets

US Tariff Information

• Tariff: 3.7% + Section 301 additional duty (as of May 2026)
• Note: Type 86 ($800 duty-free) is terminated; all commercial shipments dutiable.
•
