Foreword

Feature

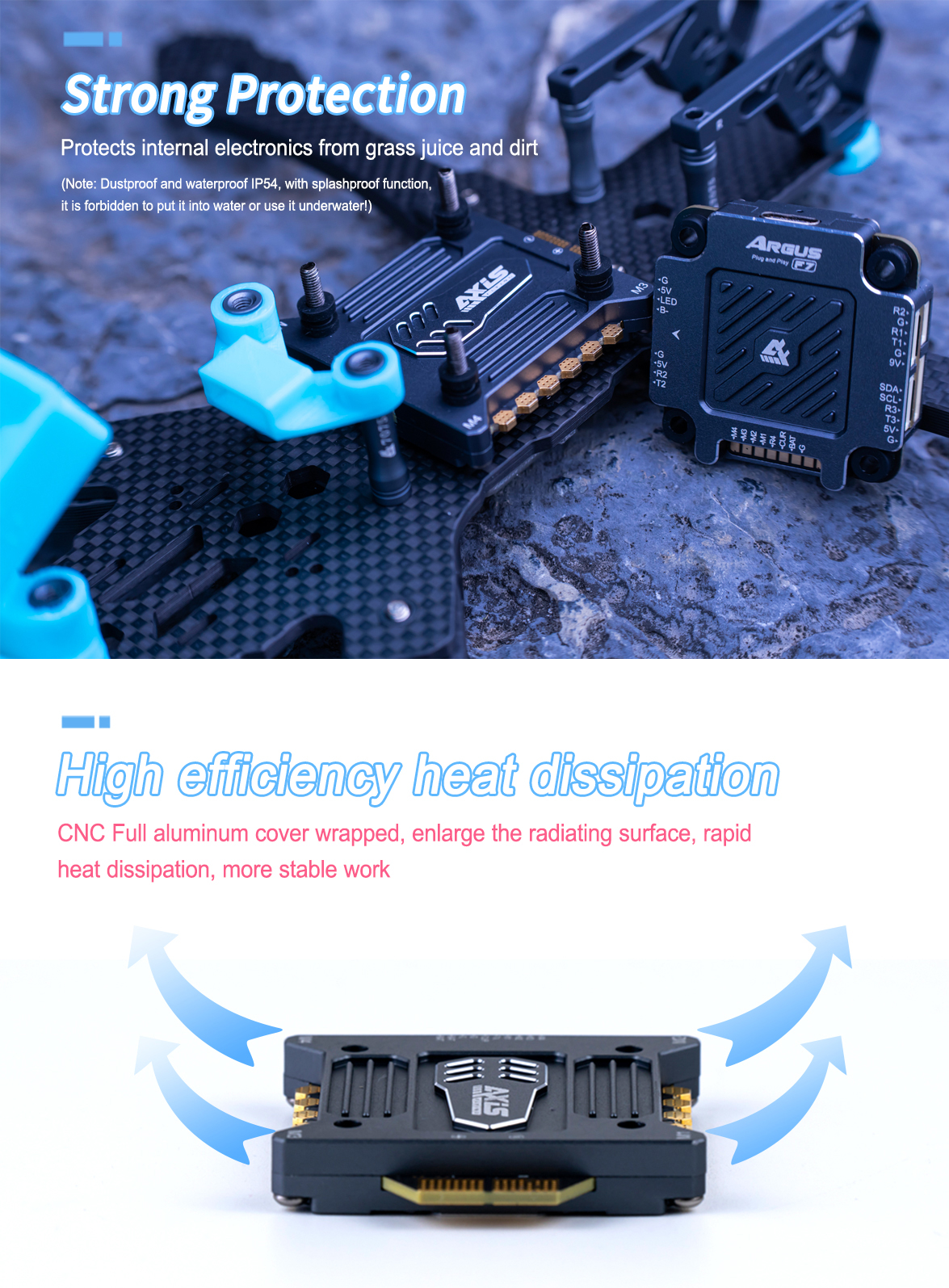

• IP54 dustproof & splash-proof (do not immerse in water)

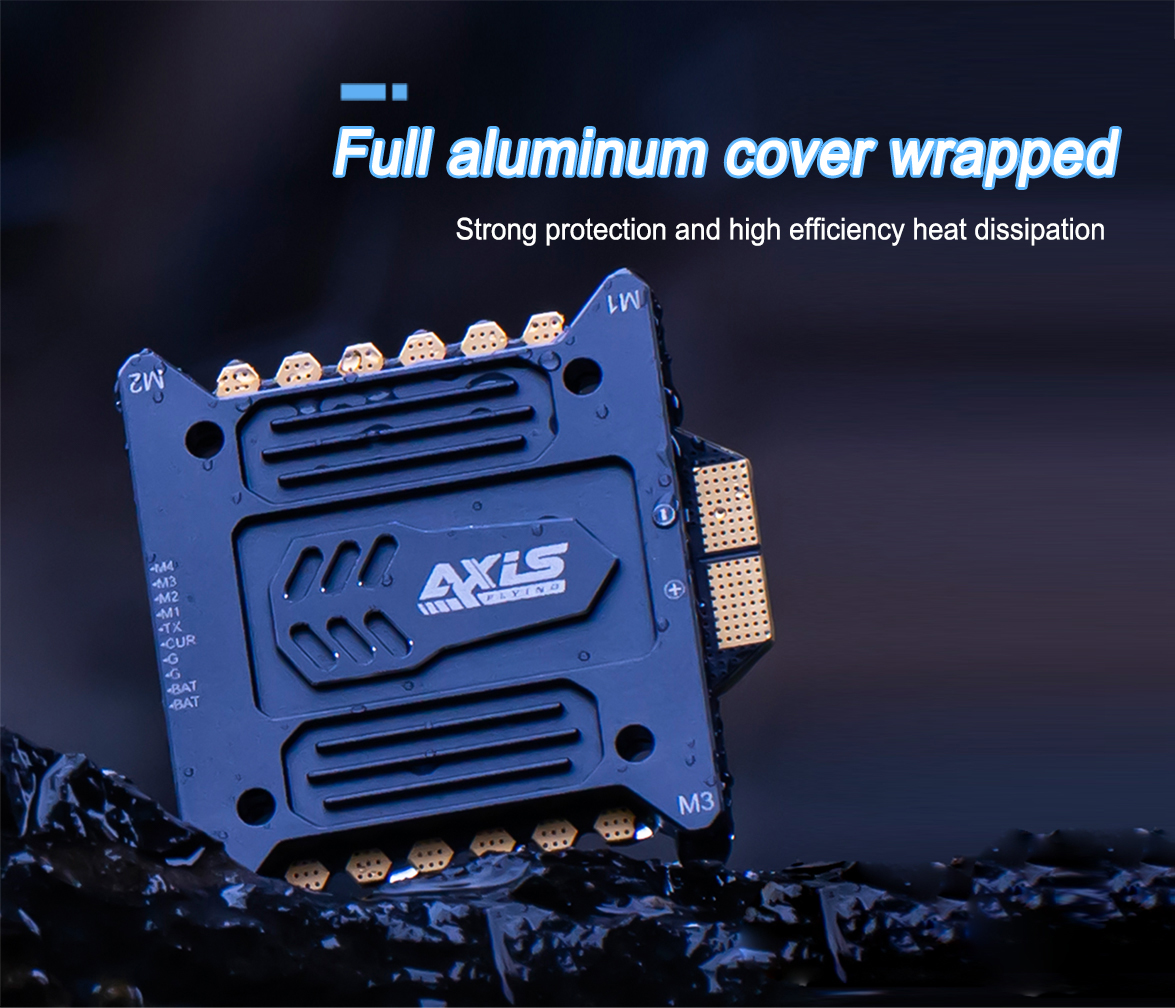

• Full CNC aluminum cover for larger heat dissipation area and stable running

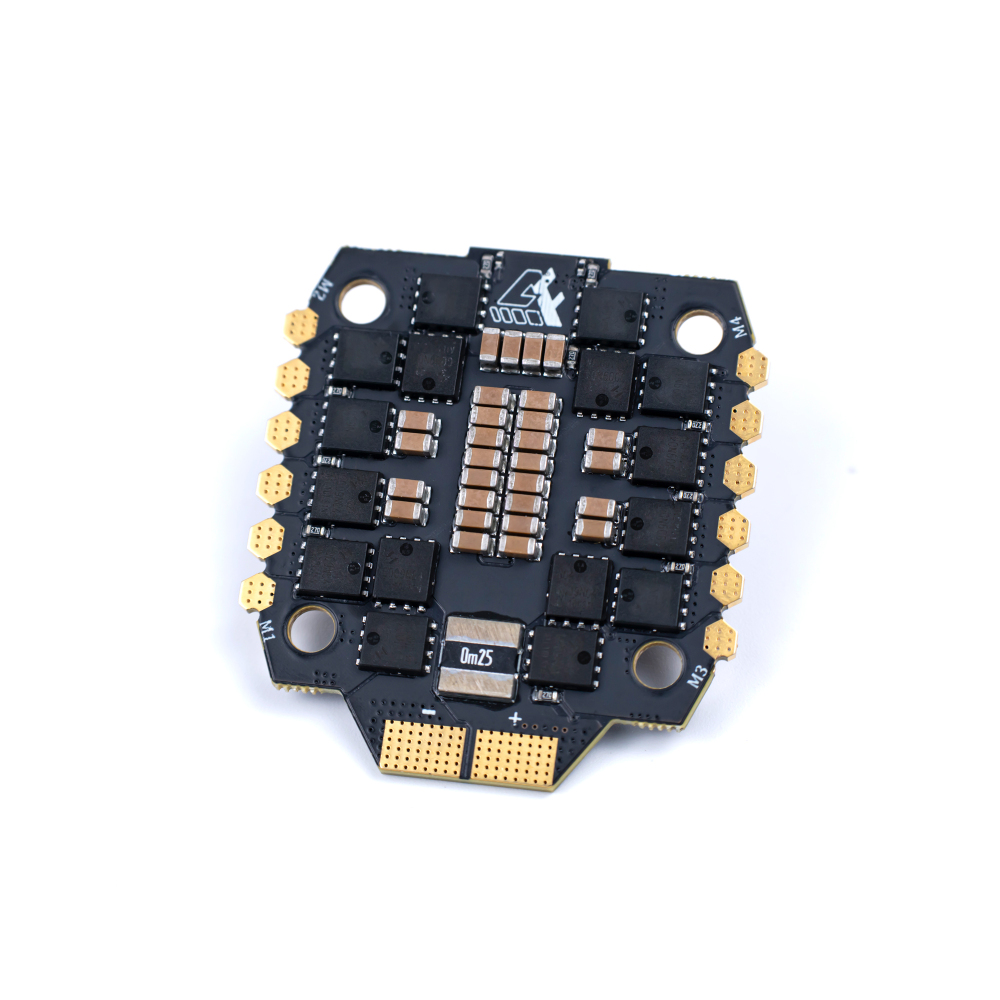

• High-quality large-size MOSFET, low internal resistance & low heat generation
• Native AM32 firmware, 32-bit high-performance processor
• Support telemetry & ammeter, precise power monitoring
• Plug-and-play design, compatible with FC, HD Air Unit, GPS, etc.
• Standard 30.5×30.5mm mounting, universal for most frames

Recommended Configuration

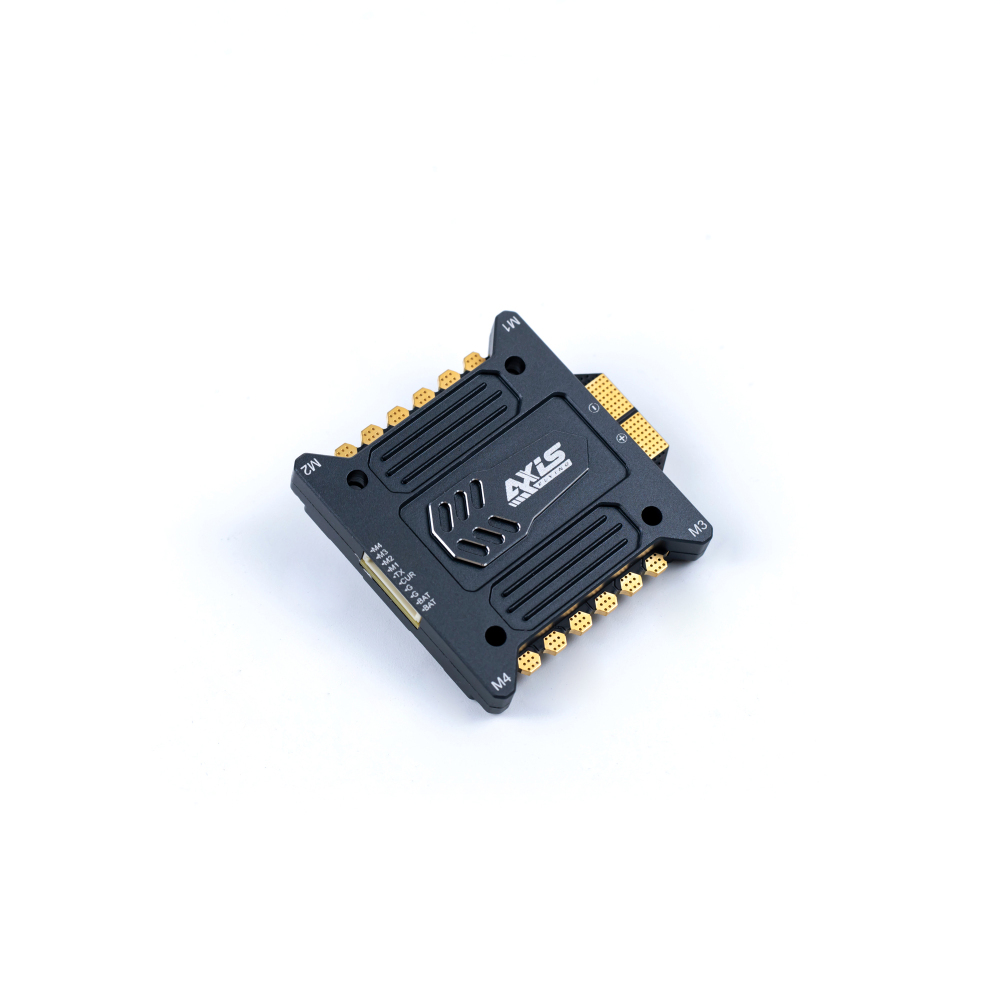

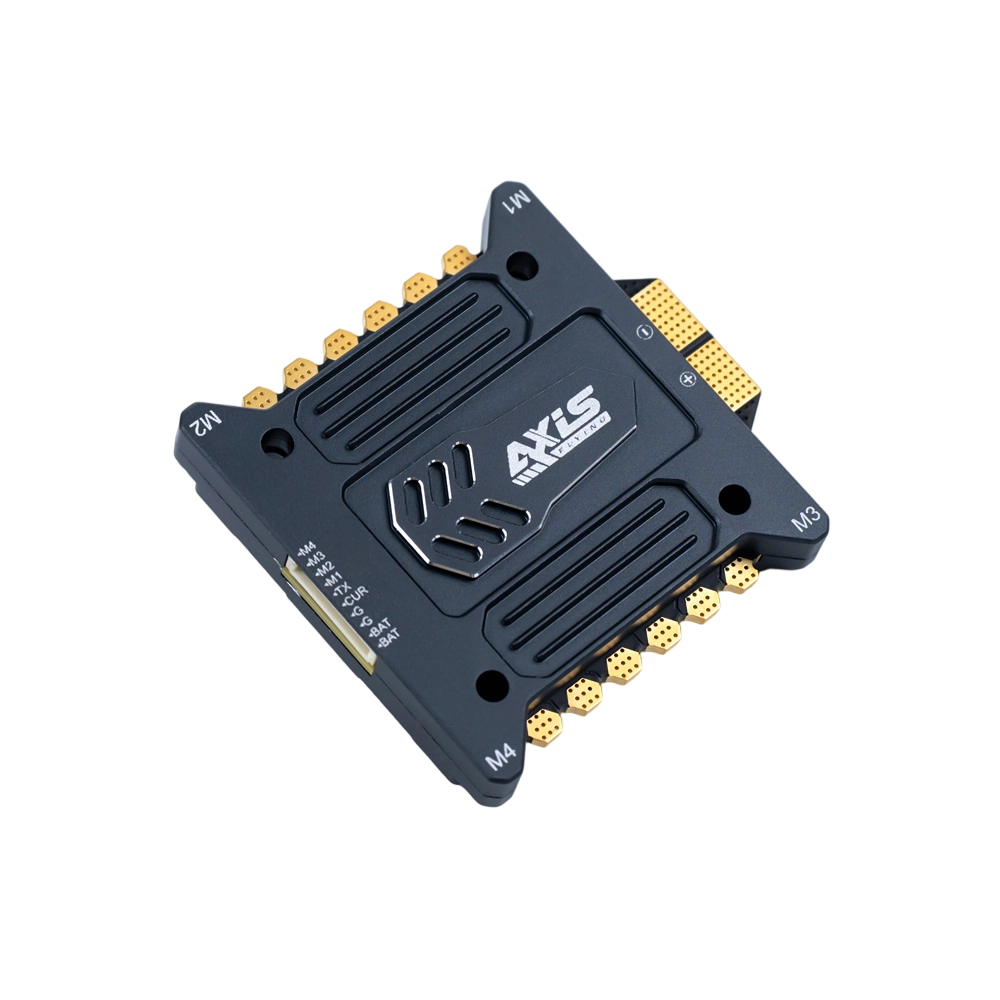

• Model: Argus PRO 55A / 65A 32Bit ESC
• Input: 3–6S LiPo (12–30V MAX)
• Firmware: AM32
• PWM: 16–96KHz
• Mount: 30.5×30.5mm / M3
• Application: 4–6S 5-inch FPV, freestyle, racing

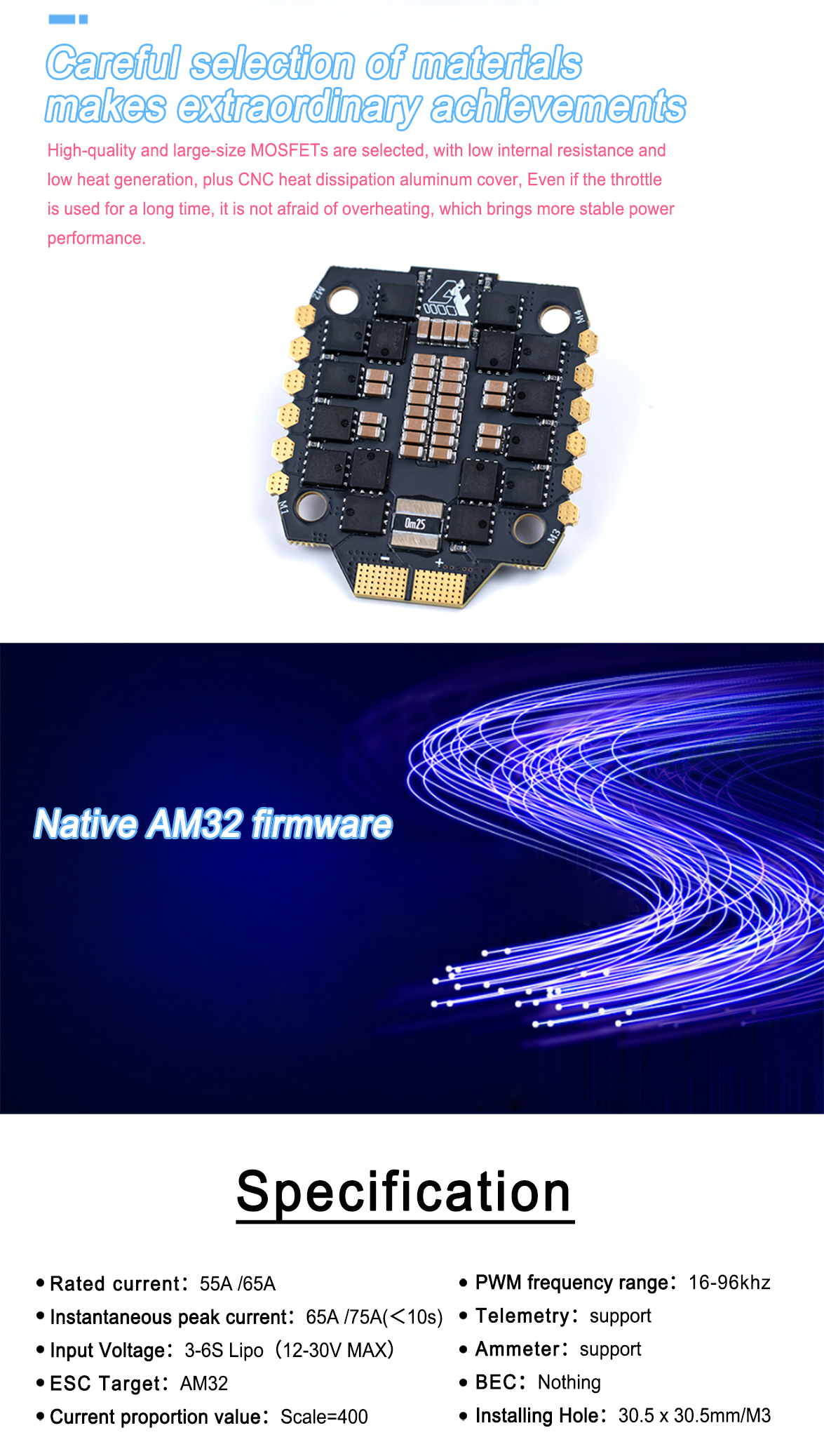

Specifications

Basic Parameters

• Model: Argus PRO 55A / 65A
• Input Voltage: 3–6S LiPo (12–30V MAX)
• Continuous Current: 55A / 65A
• Burst Current: 65A / 75A (<10s)
• Processor: 32-bit
• Firmware: AM32
• PWM Frequency: 16–96KHz
• Telemetry: Supported
• Ammeter: Supported (Scale=400)
• BEC: Not supported
• Protection: IP54 dustproof & splash-proof
• Size: 48.6×46.6×8.7mm
• Weight: 32g
• Mounting Holes: 30.5×30.5mm / M3

Package Contents

1. Argus PRO 4-in-1 ESC ×1
2. ESC to FC connection cable ×1
3. Rubber rings ×8
4. XT60 power cable ×1
5. 35V 470uF capacitor ×1
6. SH1.0 8P plastic case ×1

US Tariff Information

• Tariff: 3.7% + Section 301 additional duty (as of May 2026)
• Type 86 ($800 duty-free) is terminated; all commercial shipments dutiable
