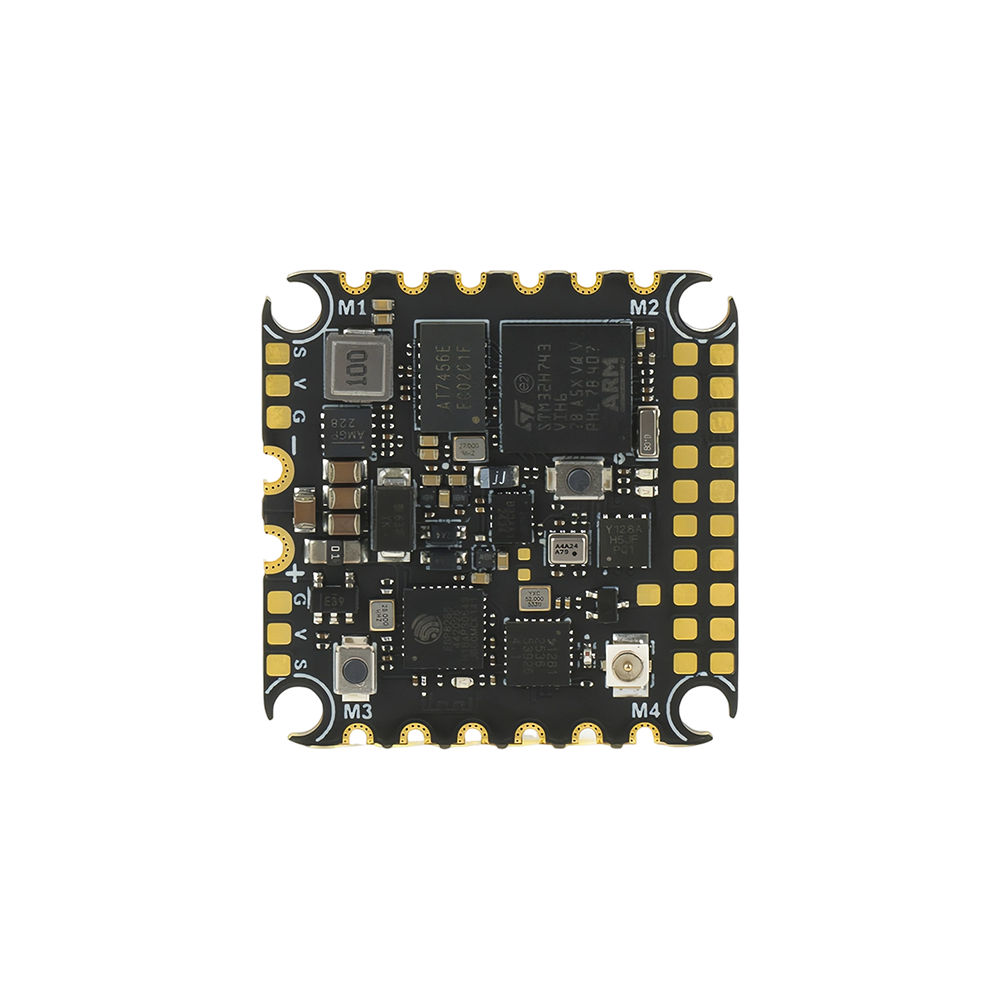

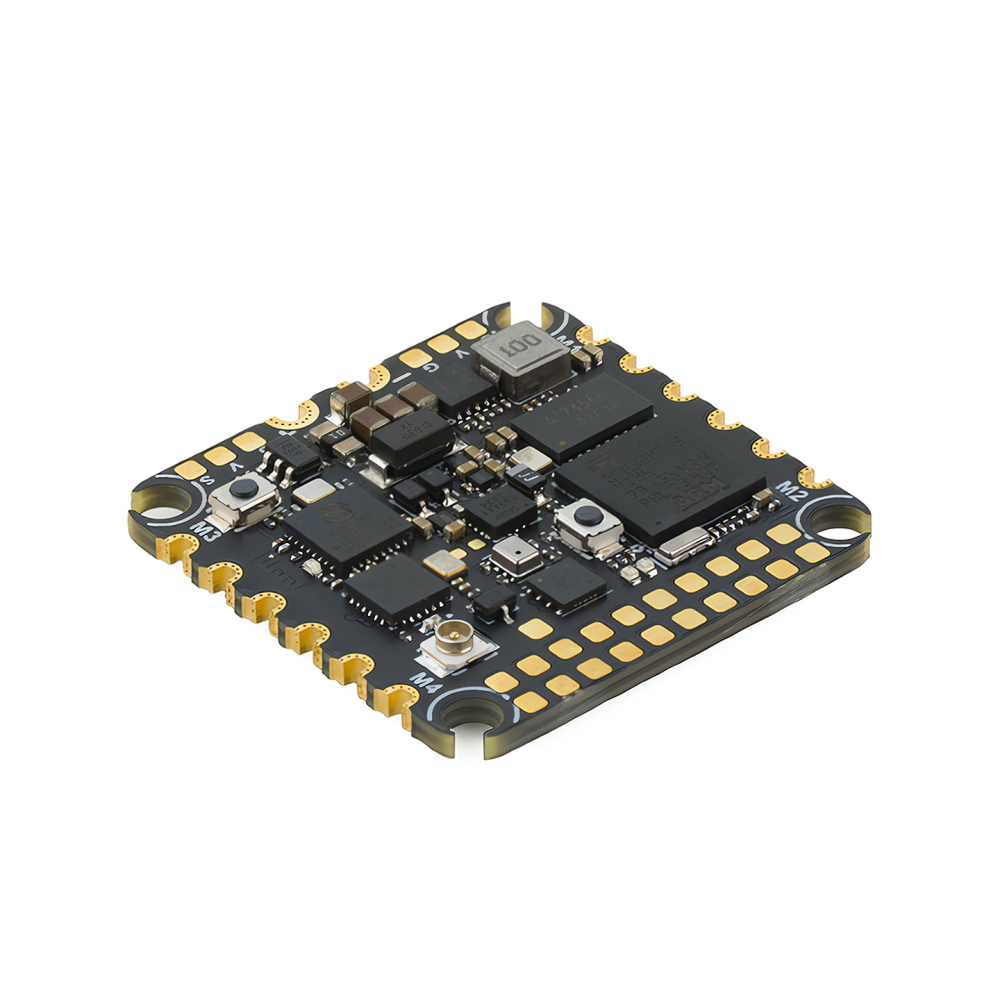

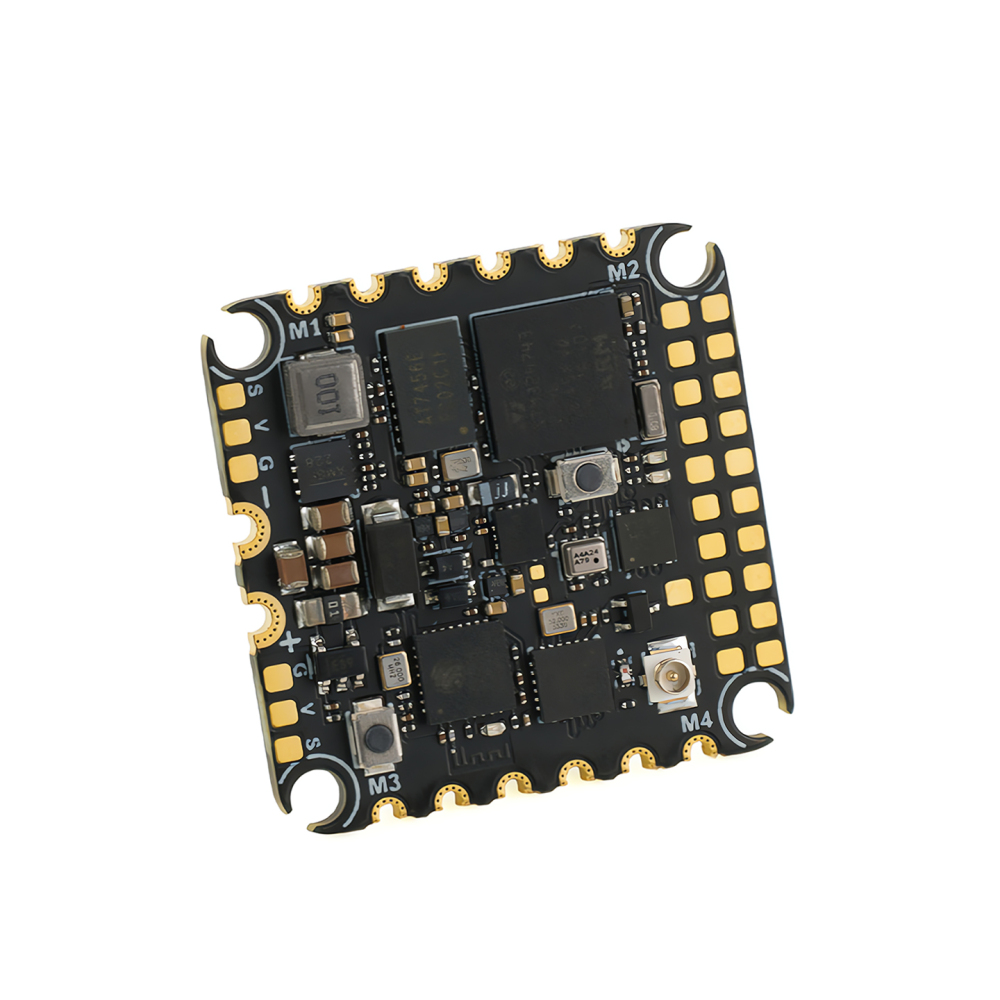

ARGUS H743 25A AIO 2-3S

With elrs / 32BIT /42688

Sufficient stock available, DHL delivery in 3-7 days (excluding drone assembly time).

Received successfully

Coupon Code

CONTINUE SHOPPING

Need Help?

Our experts are online 24/7 to help you choose the right drone and gear

Chat Now

ARGUS H743 25A AIO 2-3S

$74.00

Quantity

Reward points

Total

1 * $74 = $74

Starting at $27.22/mo or as low as 0% APR with

Learn more

Free shipping on select items over $200

Global Support

Payment Method

Description

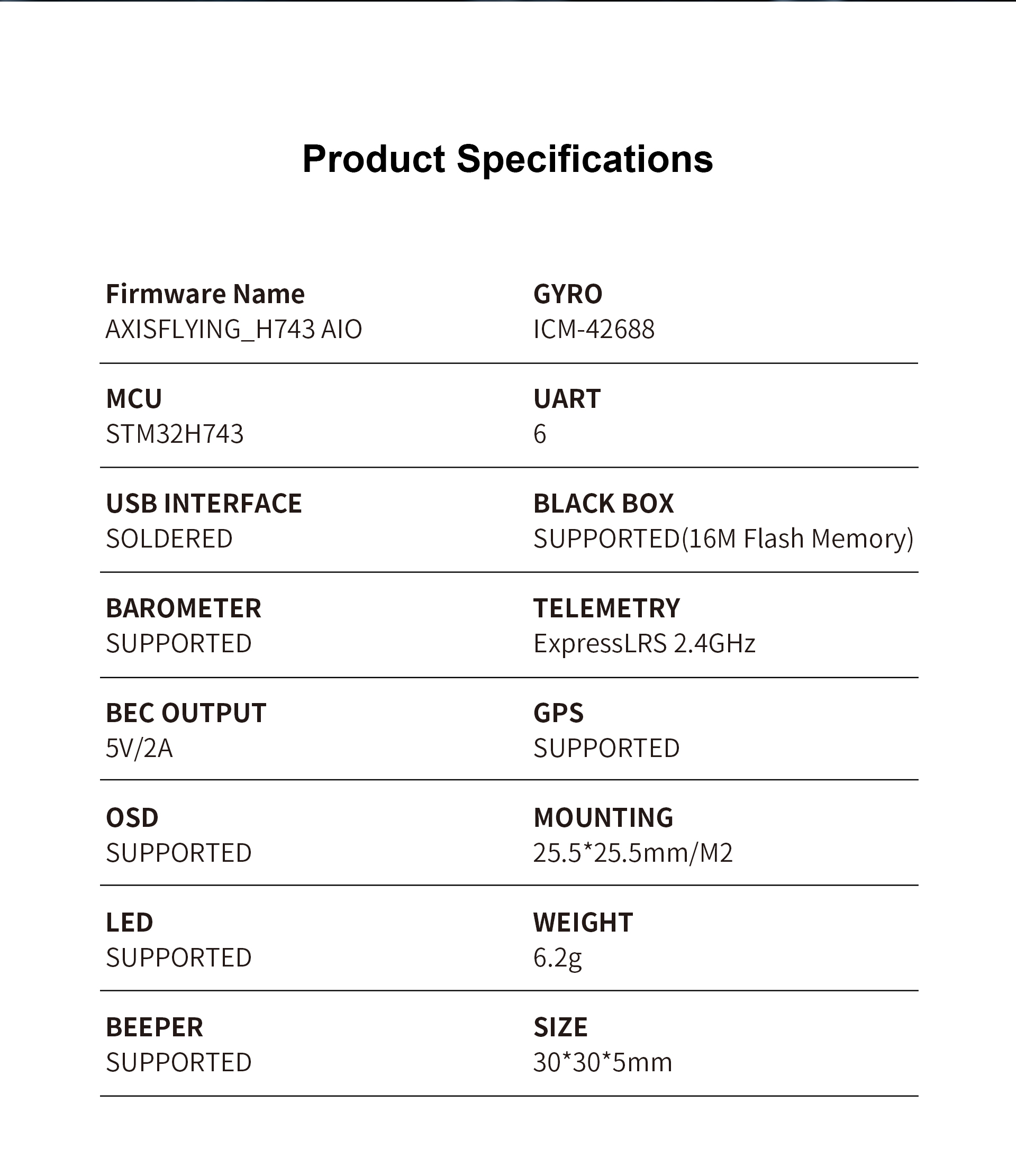

Product Specifications

Item	Parameter
Model	ARGUS H743 25A AIO 2-3S

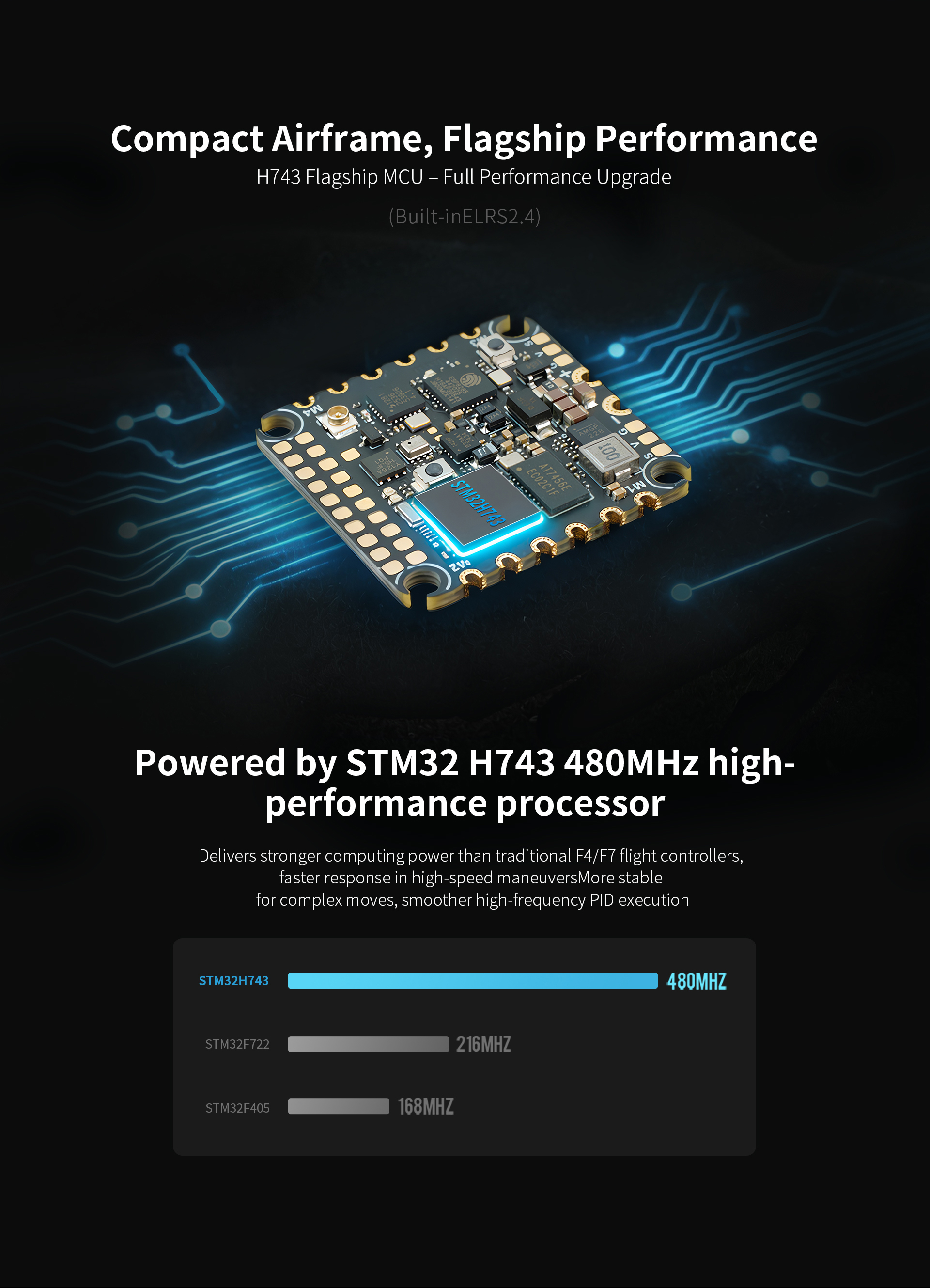

Main MCU	STM32H743 (480MHz)
Gyroscope	ICM-42688P

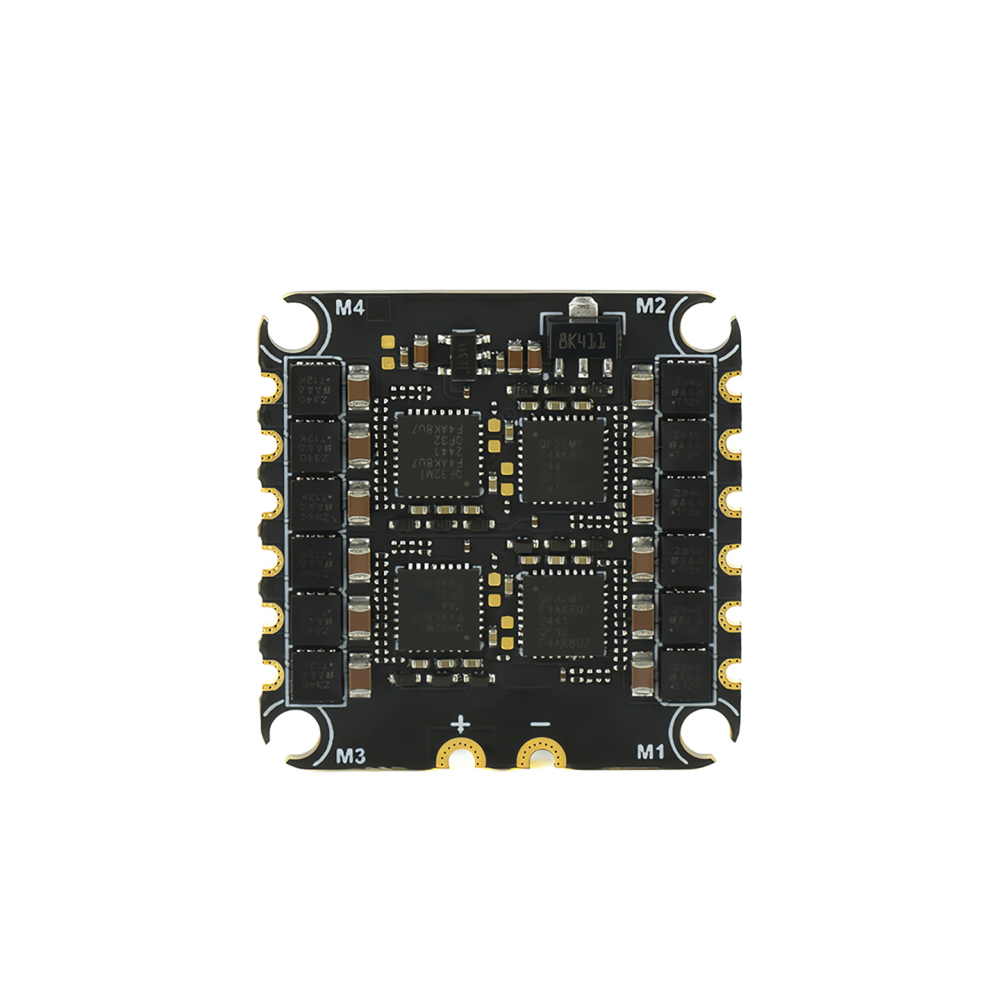

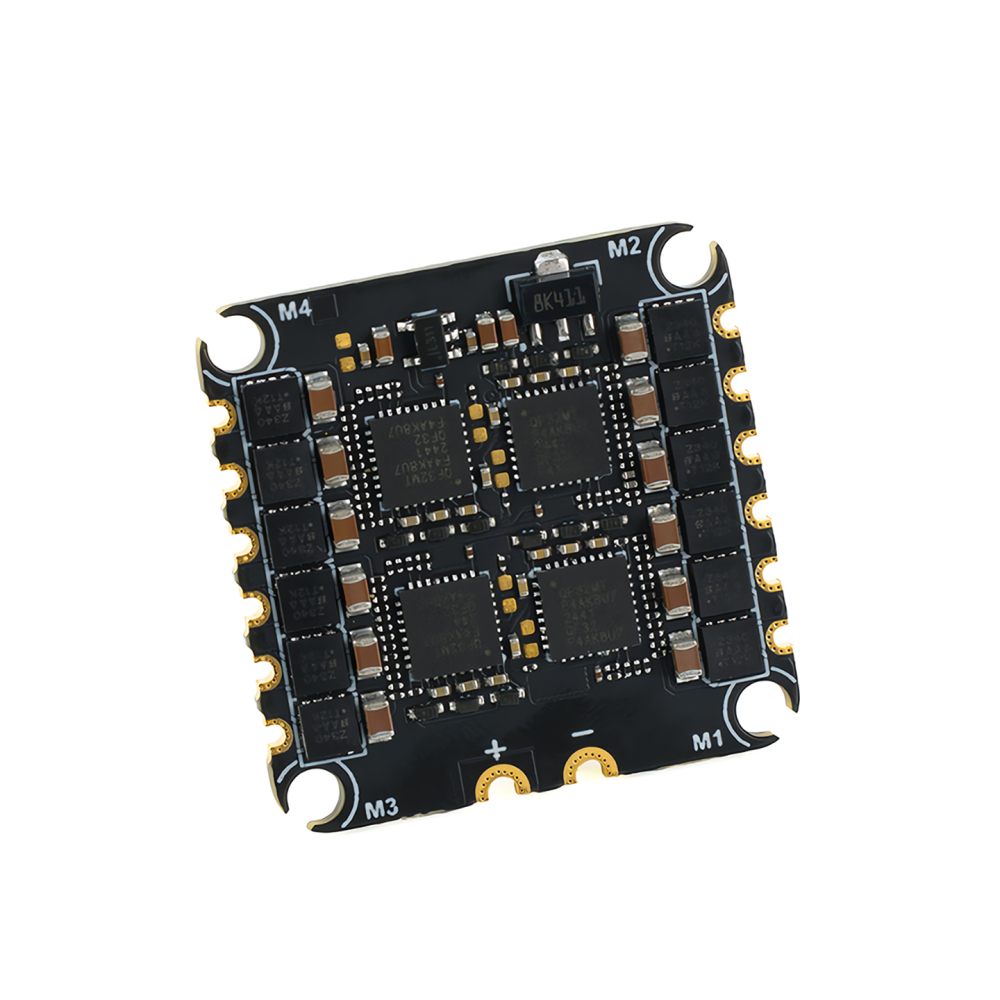

ESC Spec	25A 4-in-1, 32-bit ESC Firmware

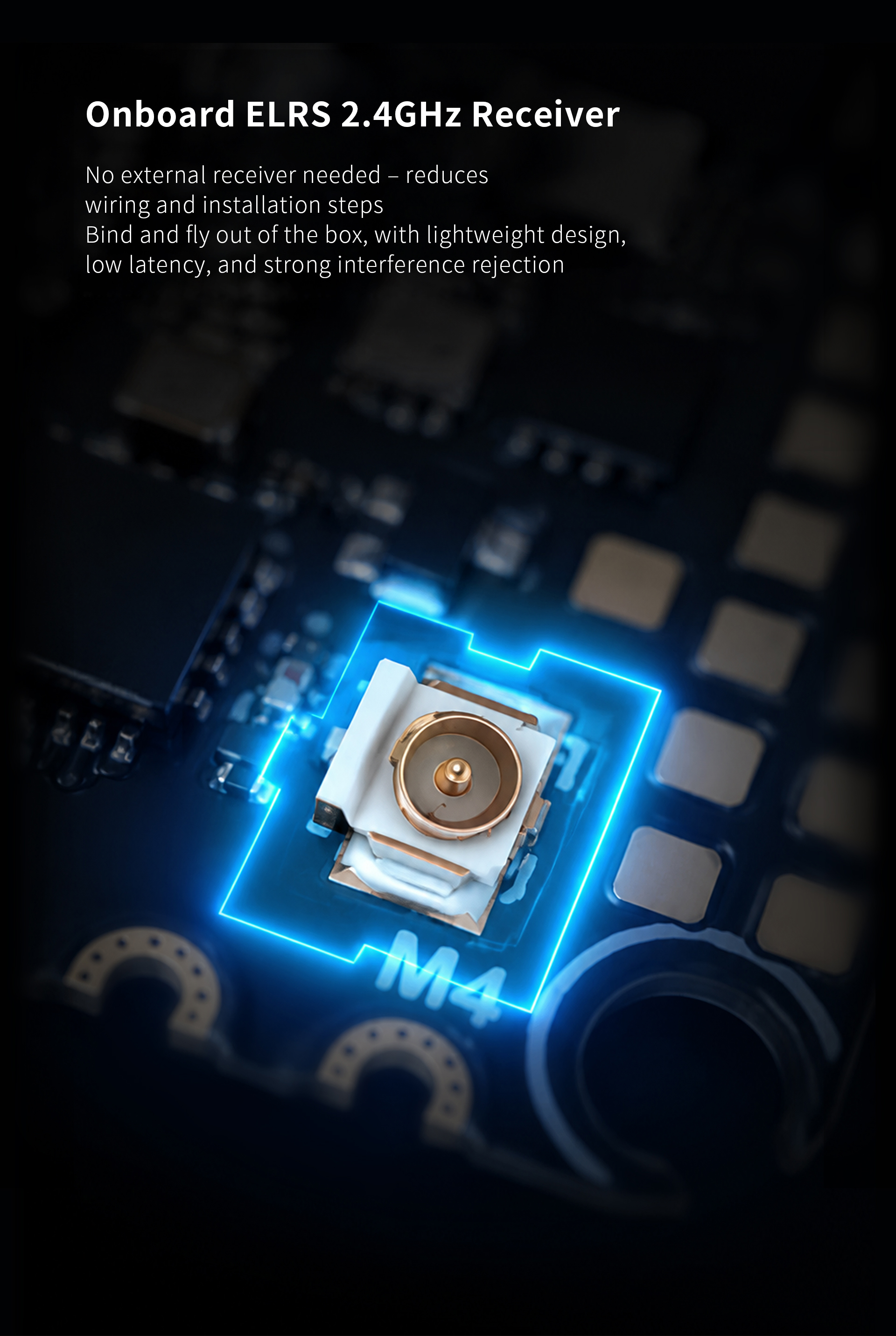

Built-in RX	ExpressLRS 2.4GHz Telemetry Receiver
Supported Battery	2S–3S LiPo
BEC Output	5V/2A
Blackbox Flash	16M

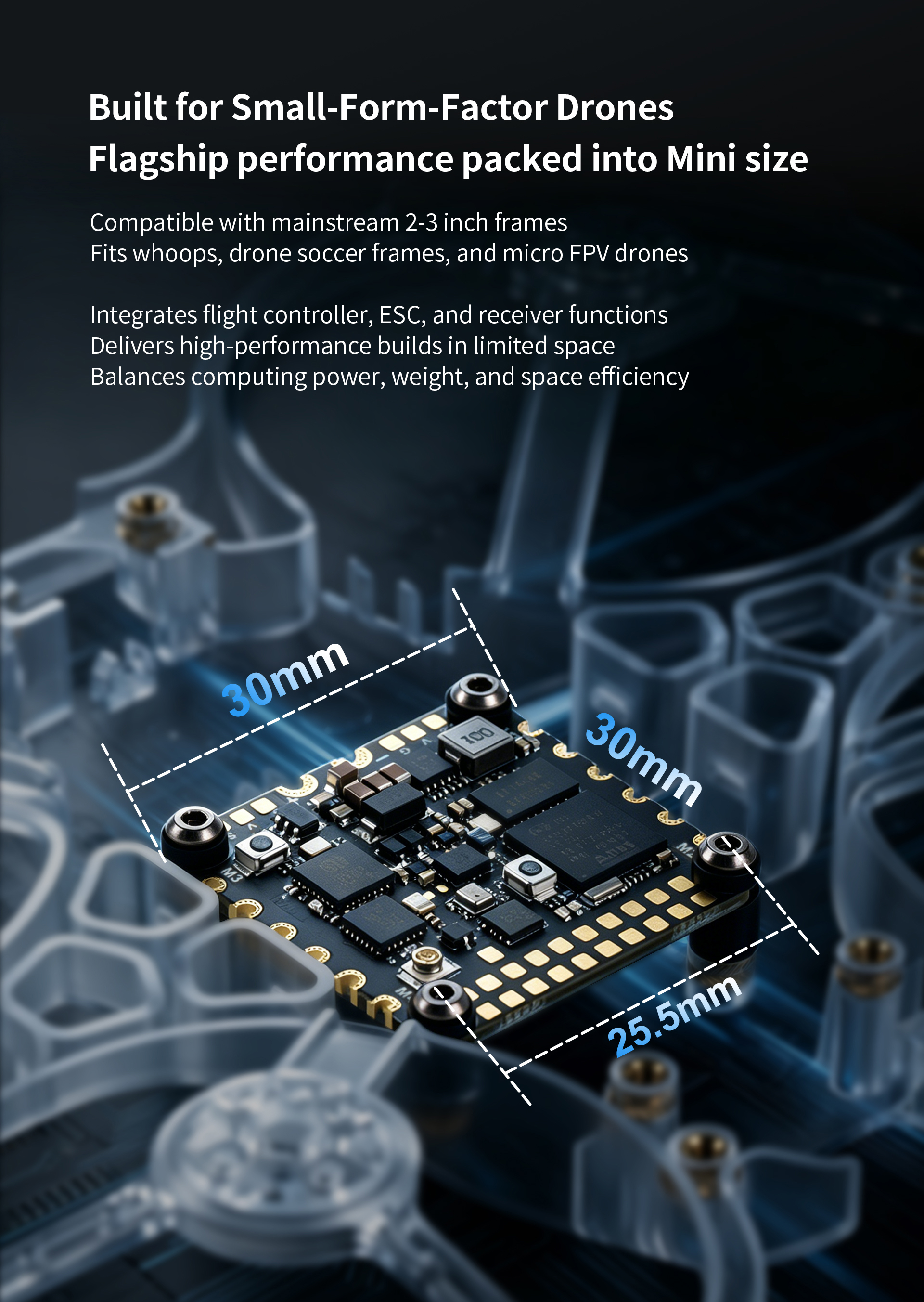

Mount Hole	25.5*25.5mm, M2 standard
Overall Dimension	30305mm
Net Weight	6.2g
Supported Modules	Barometer, GPS, OSD, Beeper, RGB LED
VTX Compatibility	Analog VTX + HD Digital VTX
Debug Port	Soldered USB Interface

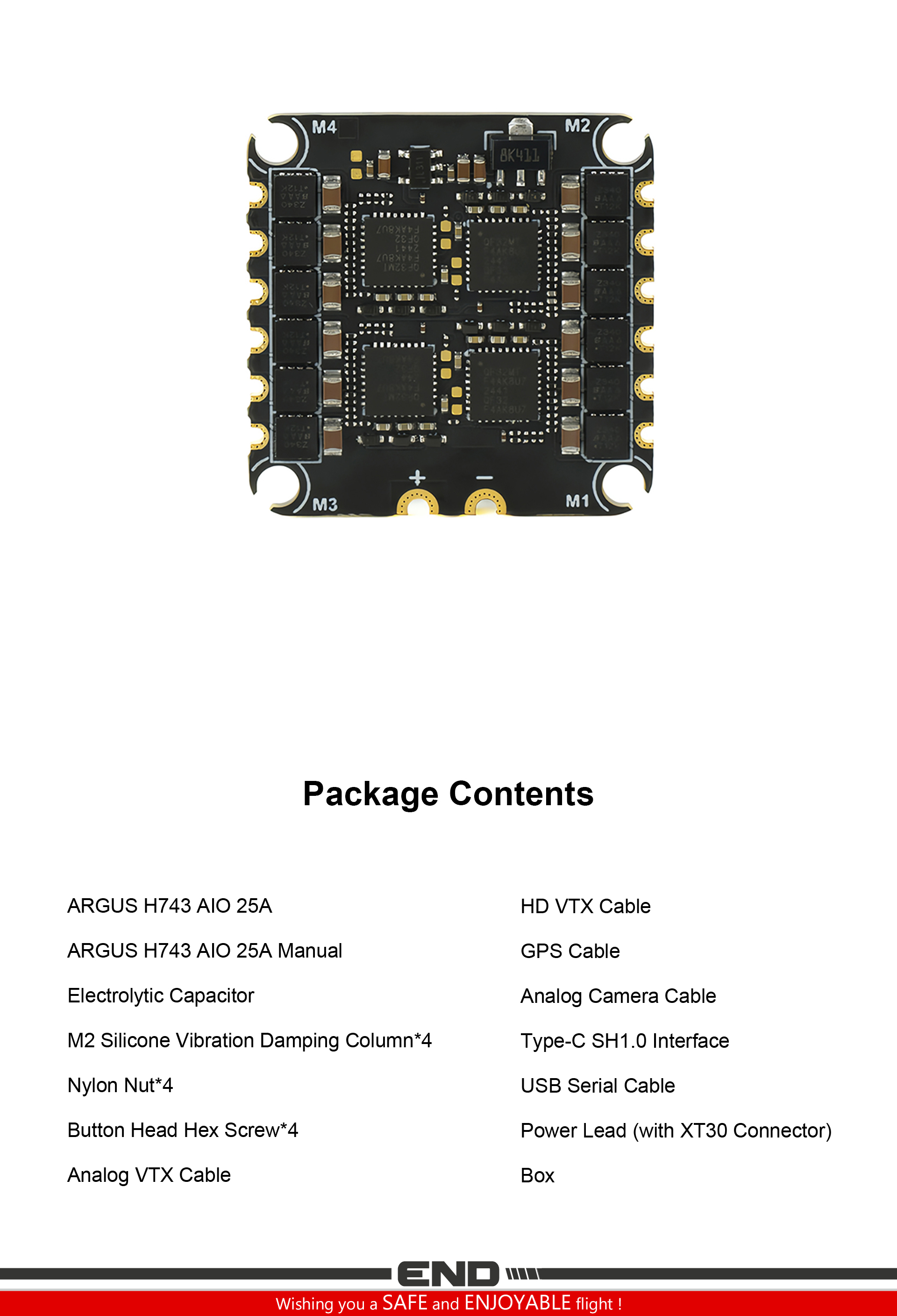

Package Contents

1 × ARGUS H743 25A AIO Main Board

1 × User Manual

1 × Electrolytic Capacitor (for voltage spike protection)

4 × M2 Silicone Vibration Damping Column

4 × Nylon Nut

4 × Button Head Hex Screw

1 × HD VTX Cable

1 × Analog Camera Cable

1 × Analog VTX Cable

1 × GPS Cable

1 × Type-C SH1.0 Serial Cable

1 × USB Debug Cable

1 × XT30 Power Lead

1 × Original Packaging Box

FAQ

Are Axisflying products universal for most FPV drones?

Yes, all Axisflying parts are standard size and universal, compatible with most mainstream FPV models for easy assembly and replacement.

Do you provide after-sales support and technical guidance?

Sure. We offer professional technical support, installation tips and after-sales service to solve your usage problems.

Do I need to pay import duties or taxes?

Import duties, taxes and customs clearance fees are not included in the product price. They are the buyer’s responsibility and vary by country/region, local tax policy and order value.

We can provide commercial invoice, packing list, CE/RoHS certificates to help with customs clearance. For detailed rates, please check with your local customs office.

Where can I download product manuals and printable documents?

All user manuals, quick guides, specification sheets and printable files are available in the Support / Download Center on our official website.
