Foreword

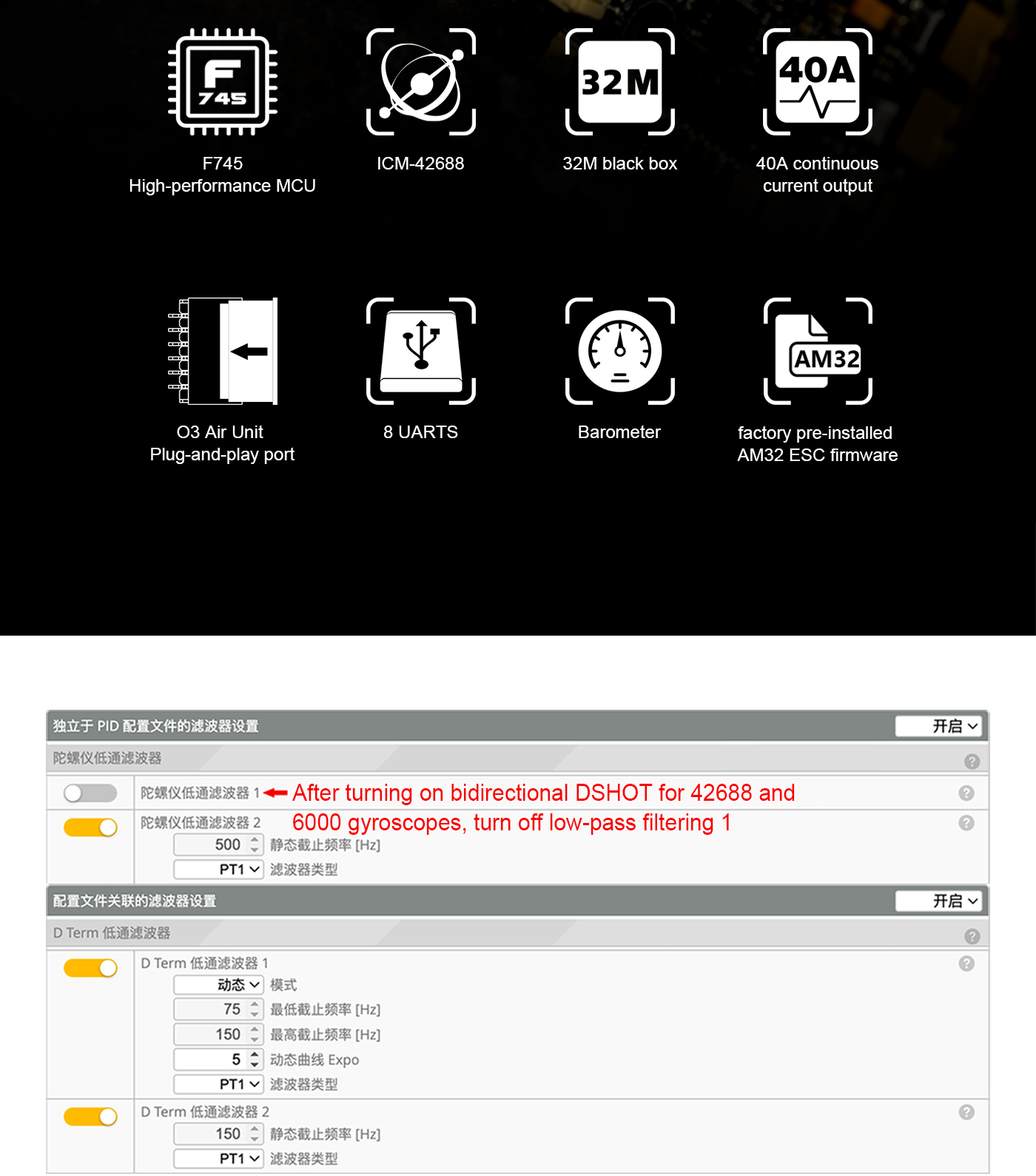

Feature

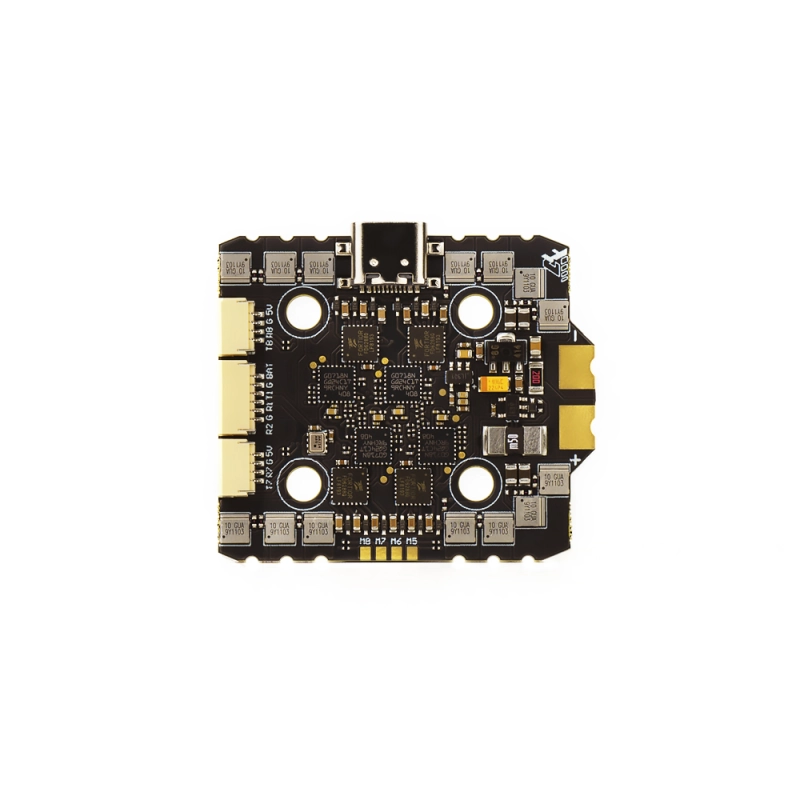

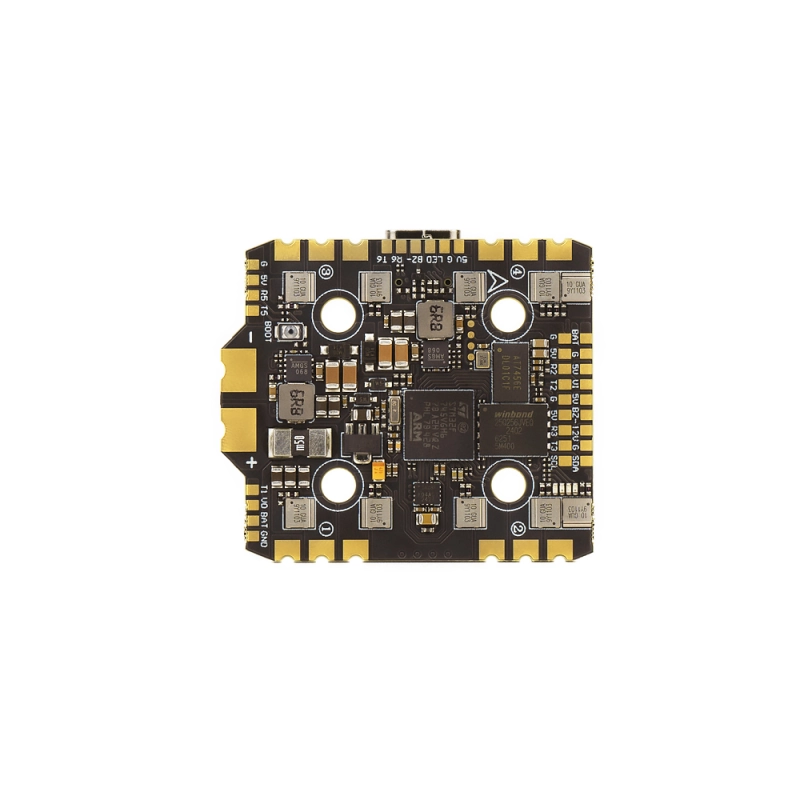

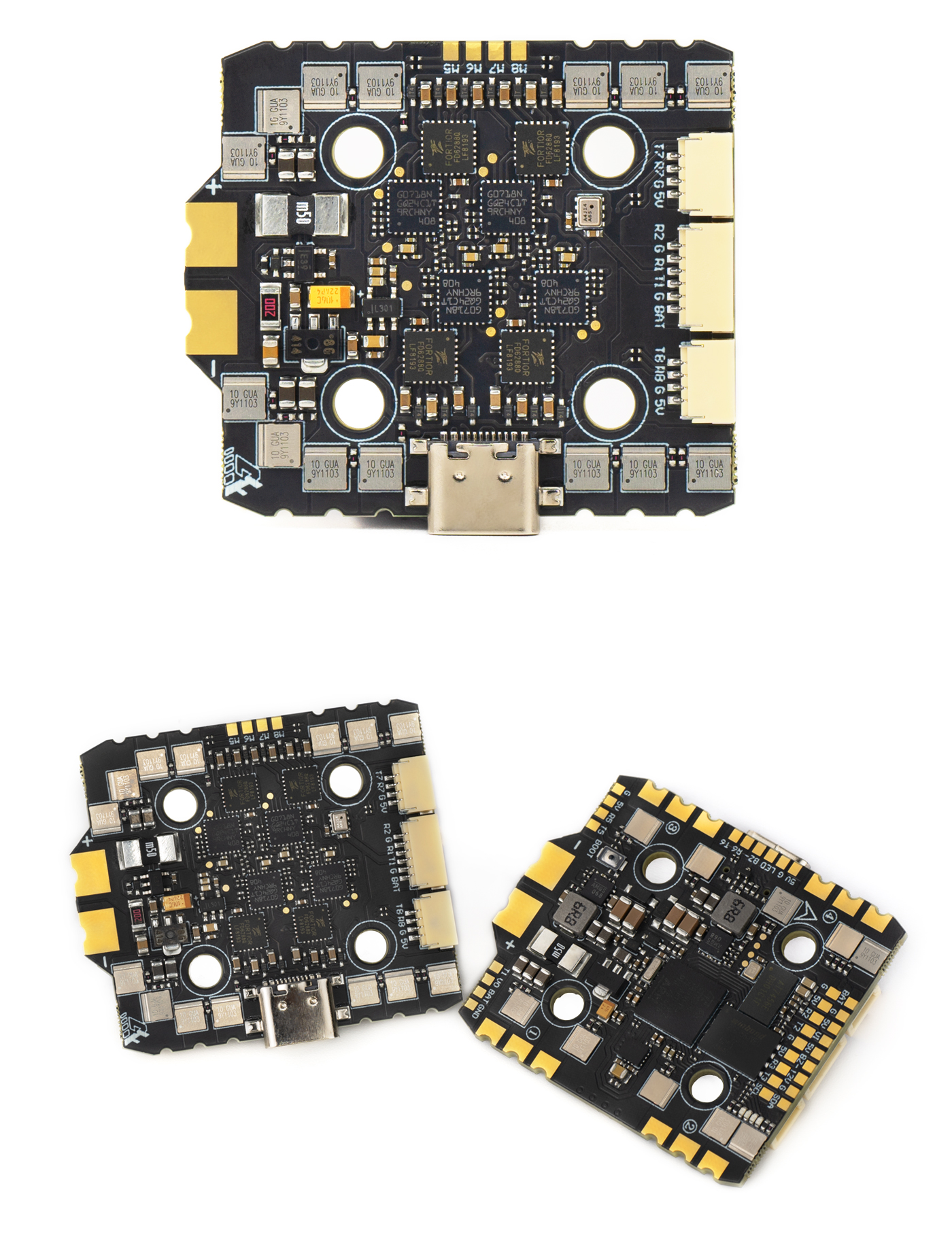

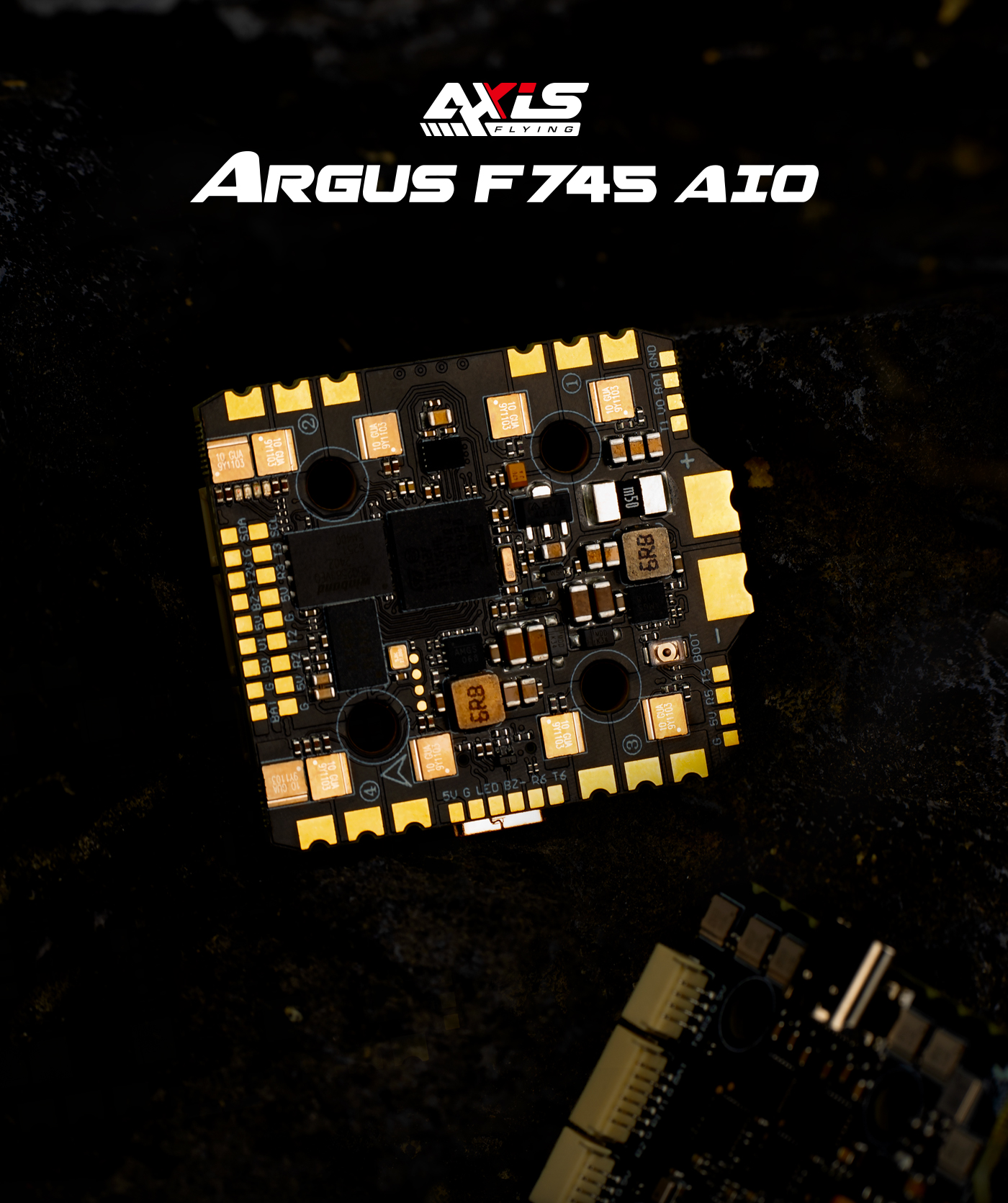

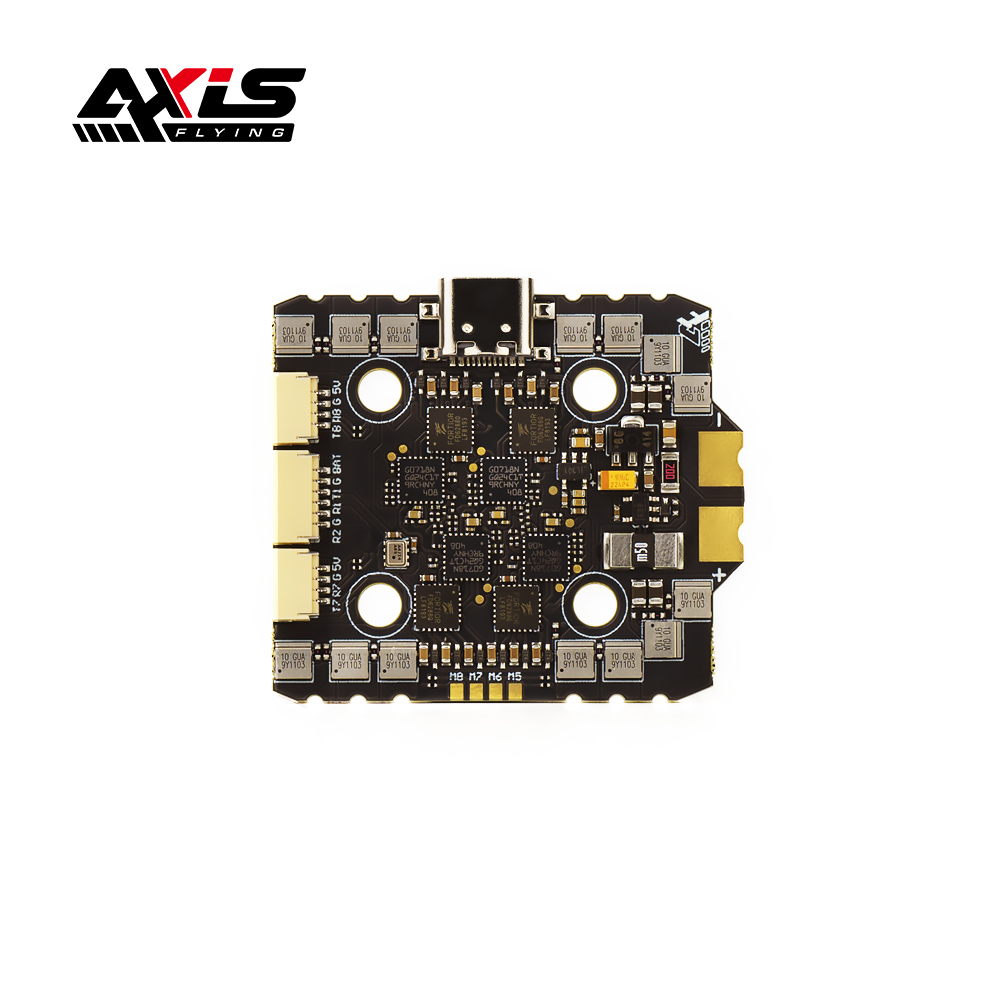

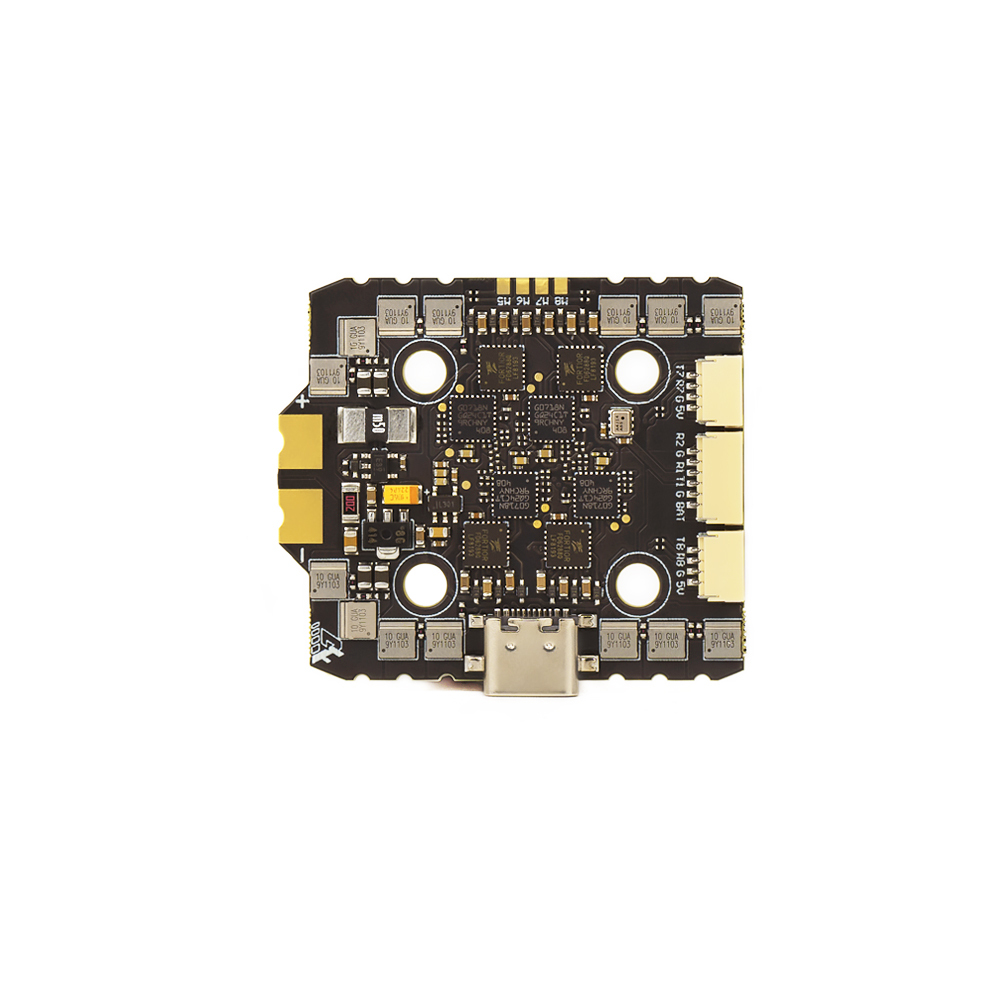

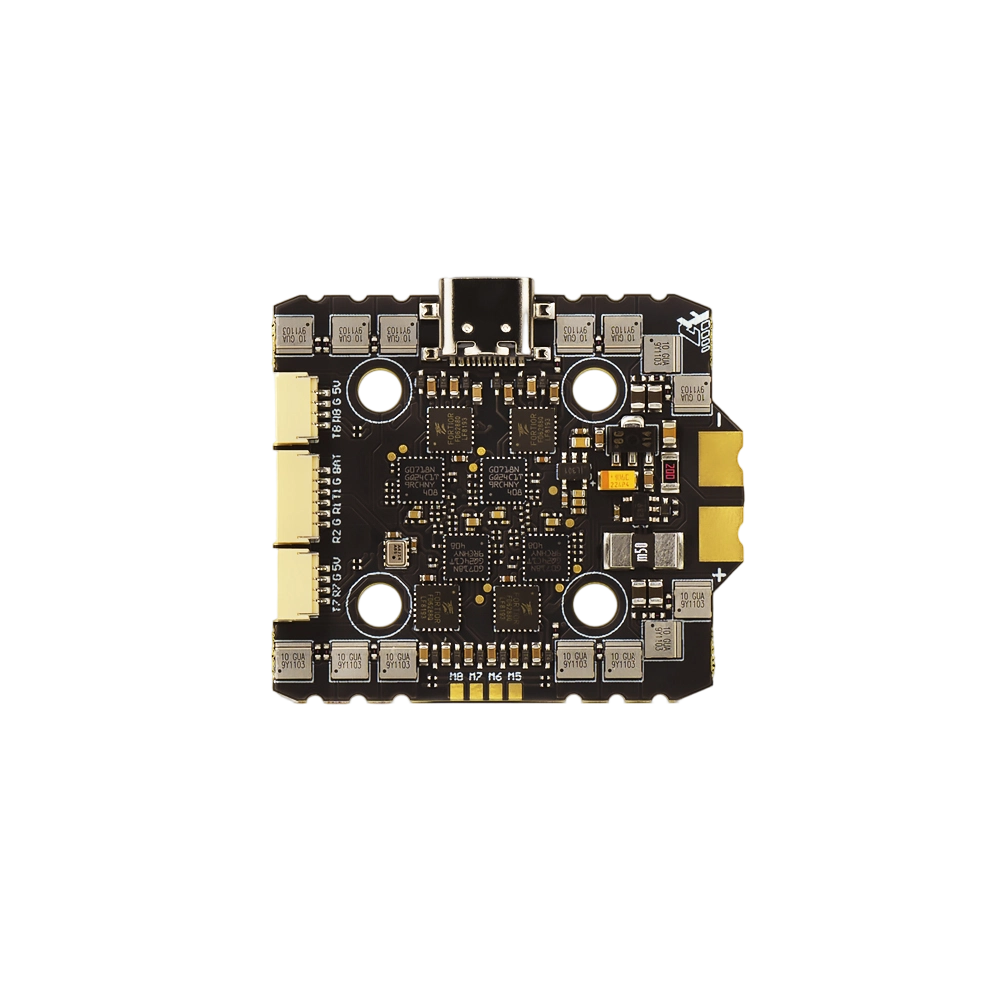

• All-in-one design: F745 Flight Controller + 40A 4-in-1 ESC
• MCU: STM32F745 high-performance processor
• Gyro: ICM42688P for super stability
• 32M blackbox for detailed log recording
• 8 UARTs for rich expansion
• Built-in barometer for altitude hold
• AM32 ESC firmware pre-installed
• DJI O4 Air Unit dedicated plug-and-play port
• Dual BEC: 5V/2A(MAX 3A) + 12V/2A(MAX 3A)
• Support GPS, LED, buzzer, OSD, ammeter
• Compact 20×20mm mounting, lightweight

Recommended Configuration

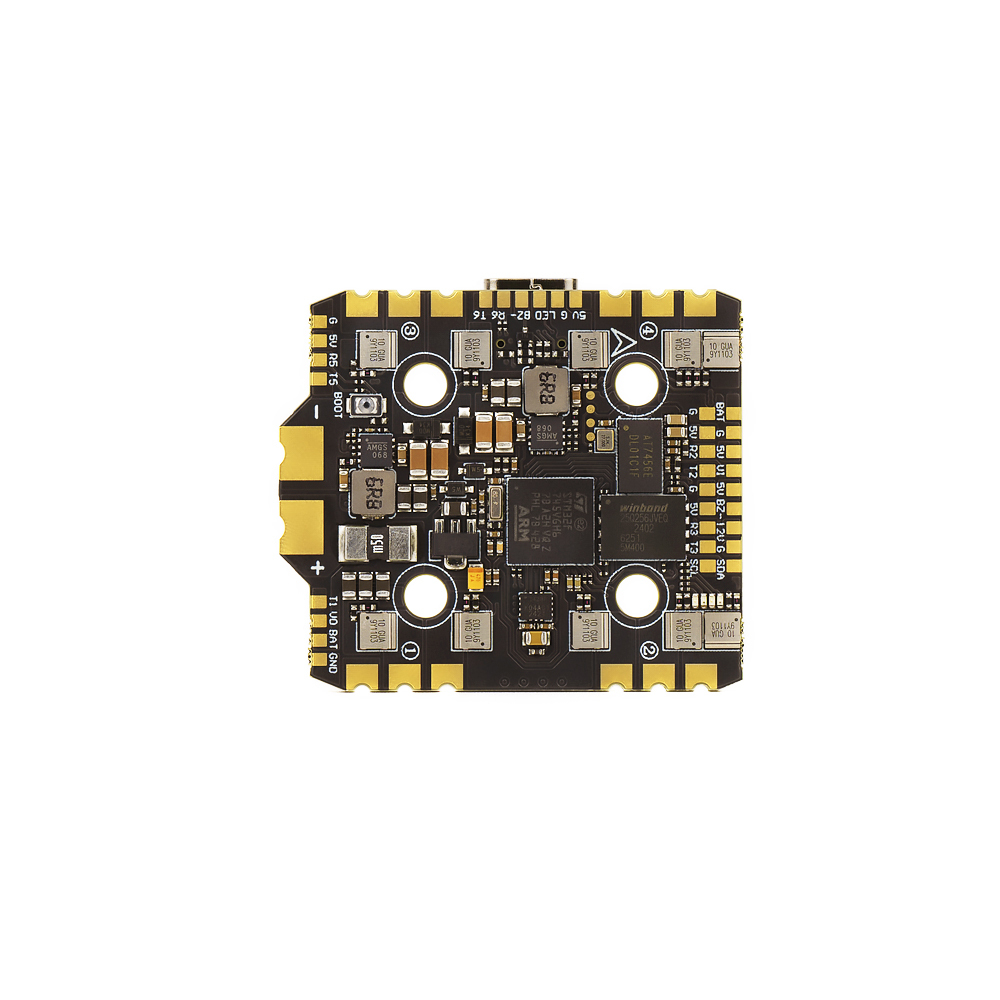

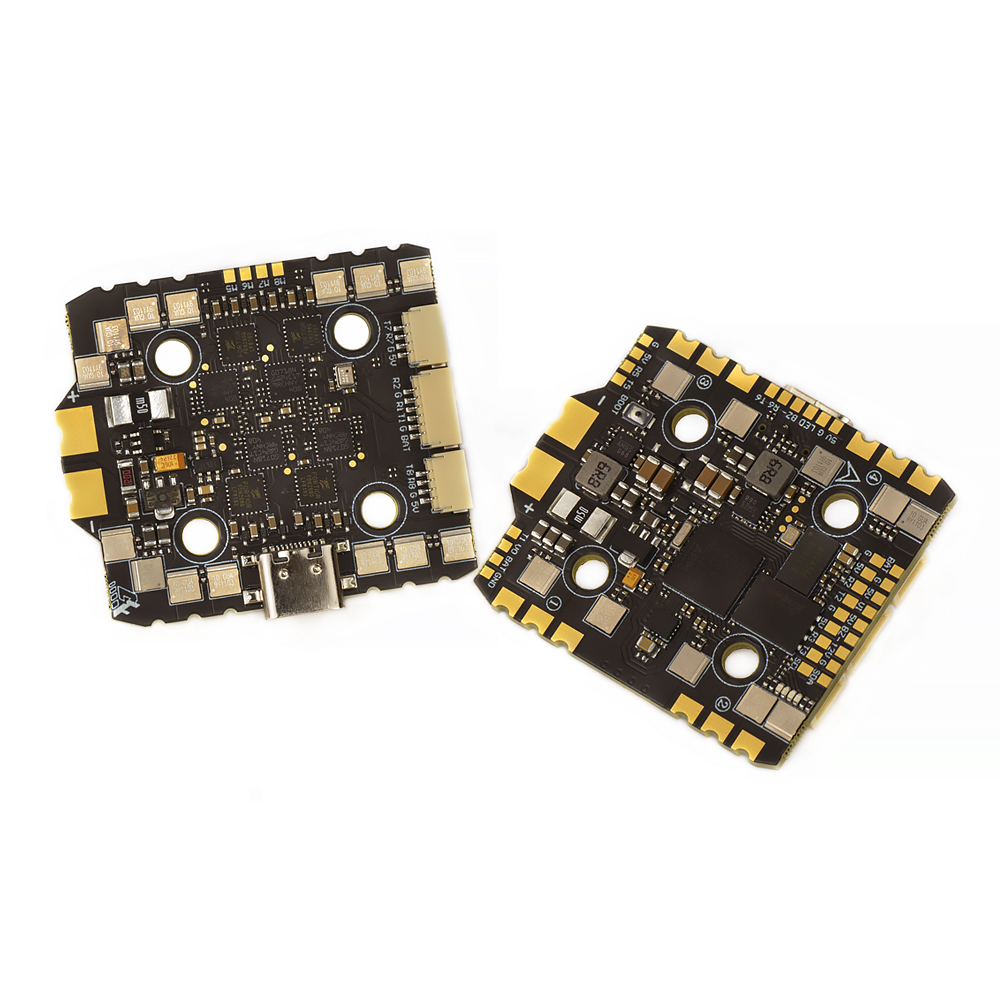

• Stack: ARGUS 40A + F745 AIO
• Input Voltage: 4–6S LiPo
• ESC Current: 40A continuous
• Firmware: AM32 (ESC)
• Mount: 20×20mm
• Application: 4–6S FPV, freestyle, long-range

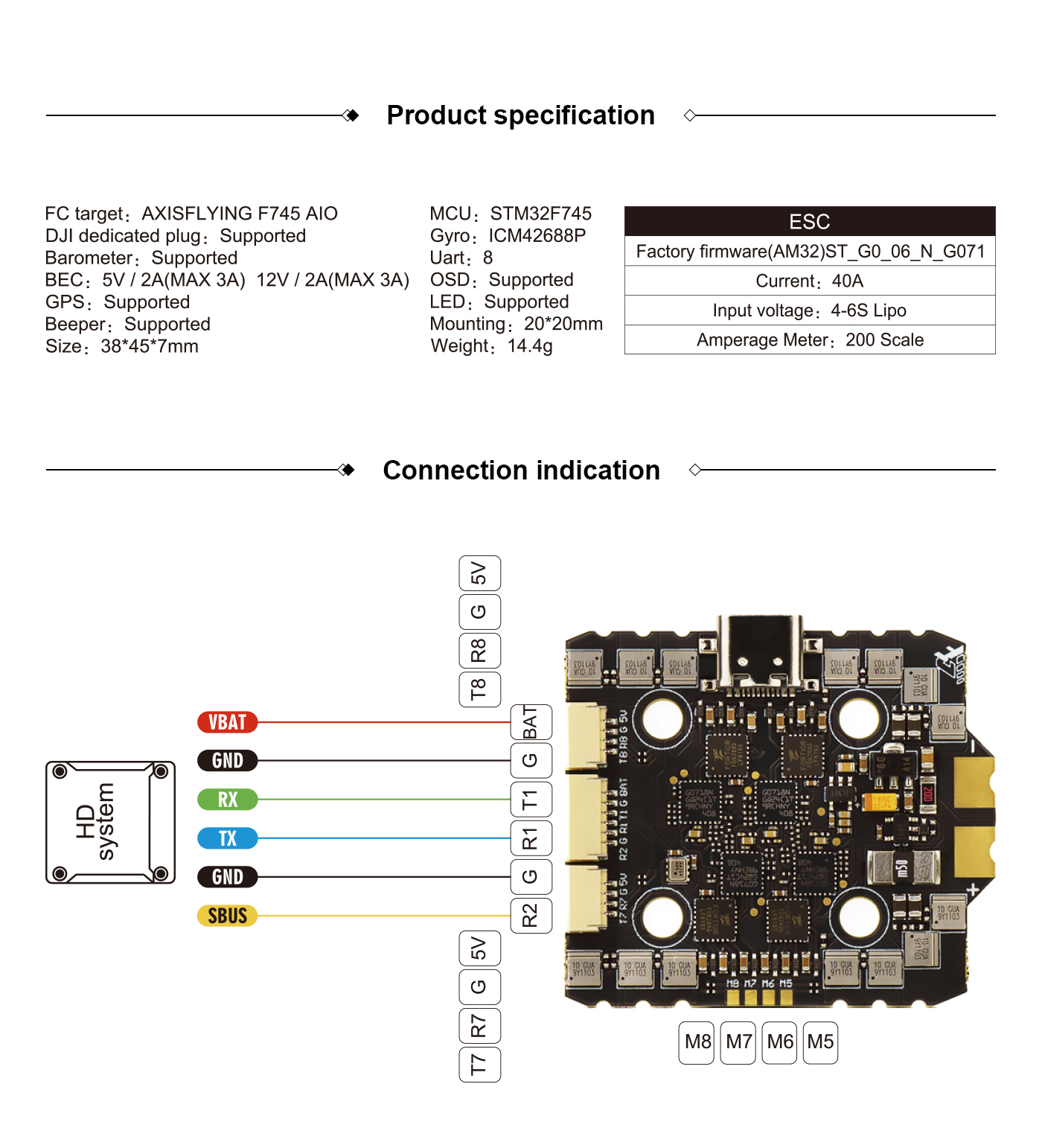

Specifications

Flight Controller

• FC Target: AXISFLYING F745 AIO
• MCU: STM32F745
• Gyro: ICM42688P
• Barometer: Supported
• Blackbox: 32M
• UART: 8 ports
• BEC: 5V 2A (max 3A); 12V 2A (max 3A)
• OSD: Supported
• LED: Supported
• GPS: Supported
• Beeper: Supported
• DJI O3 Plug: Supported

ESC

• Continuous Current: 40A
• Input Voltage: 4–6S LiPo
• Firmware: AM32 (ST_G0_06 / N G071)
• Ammeter: 200 Scale

General

• Size: 38×45×7mm
• Mounting: 20×20mm
• Weight: 14.4g
• • Tariff: 3.7% + Section 301 additional duty (as of May 2026)
  • Type 86 ($800 duty-free) is terminated; all commercial shipments dutiable
  • ---

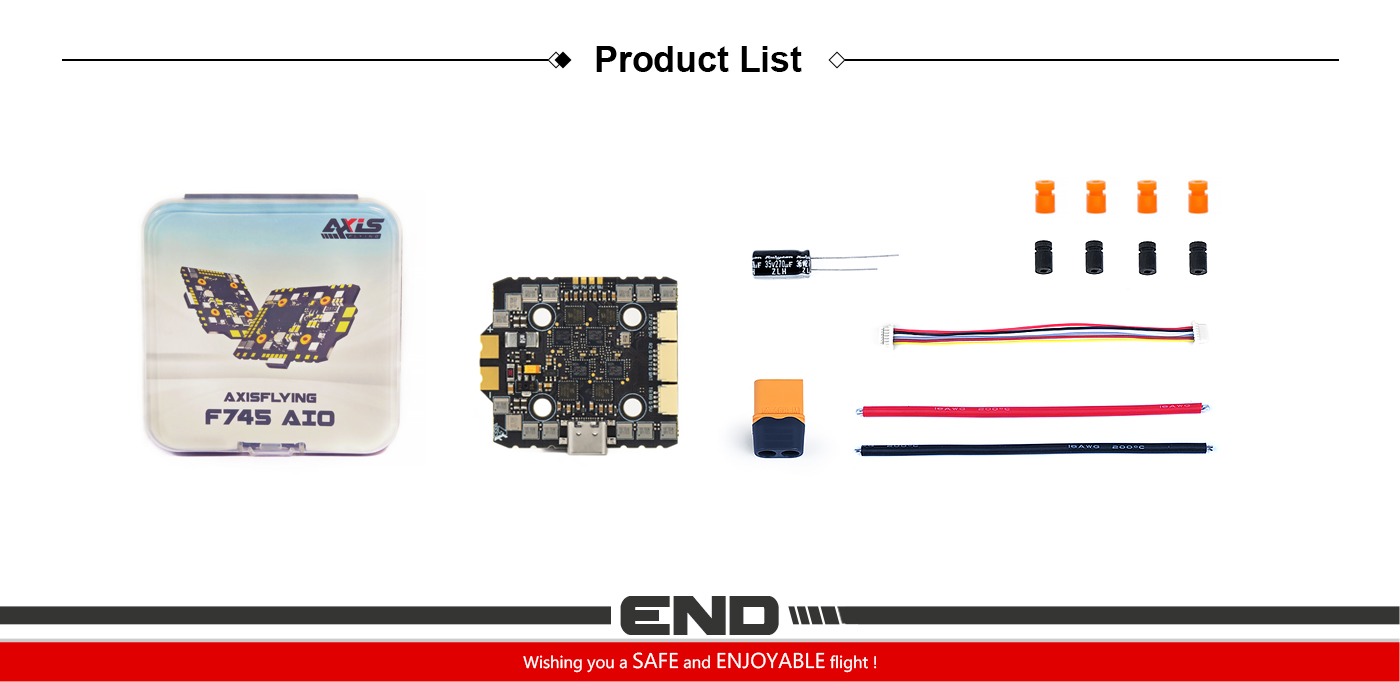

    Package Contents

    1. ARGUS 40A+F745 AIO Stack ×1
    2. Connection cables set ×1
    3. Mounting screws & vibration dampers ×1 set

    ---
