Foreword

Feature

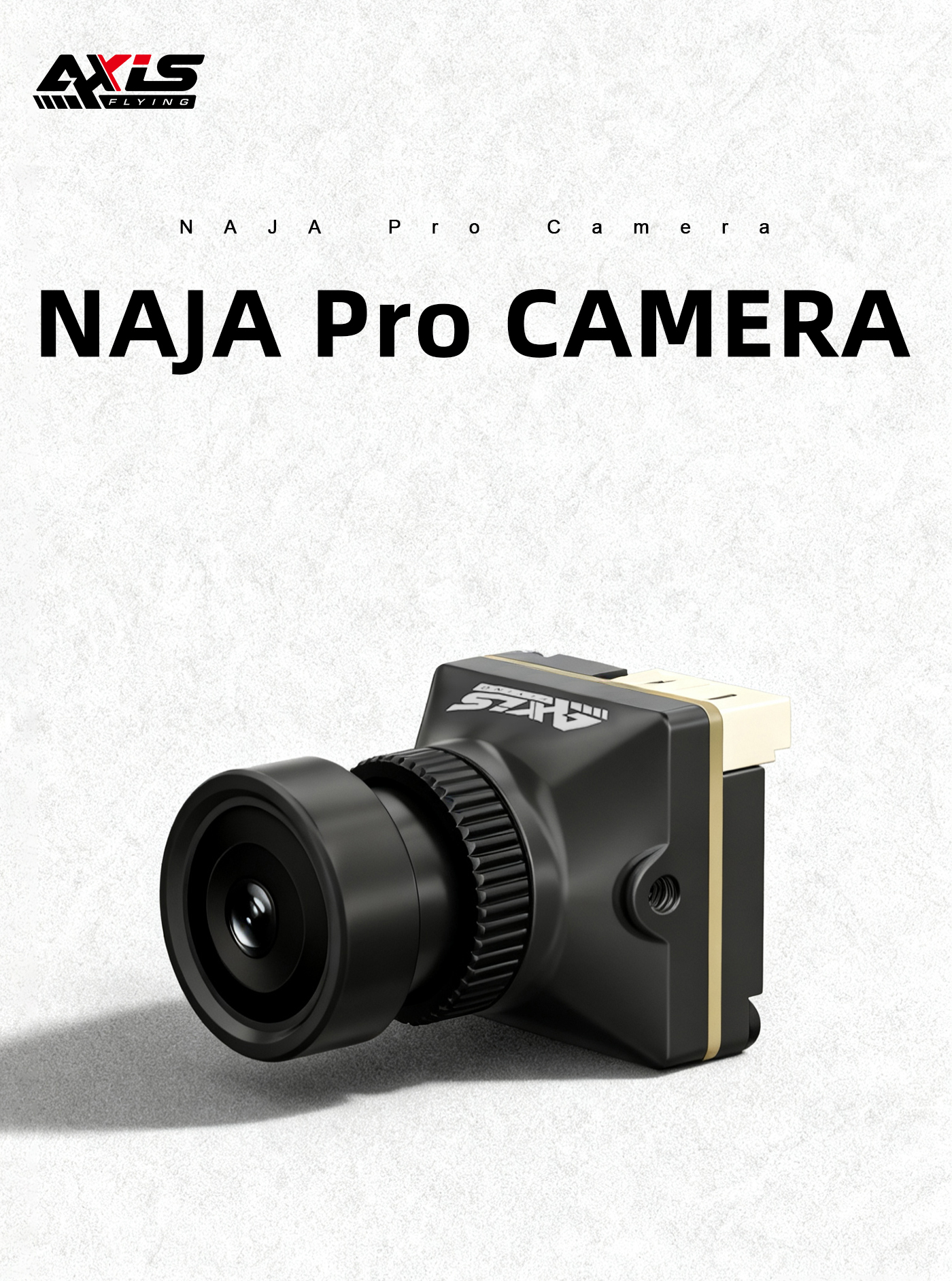

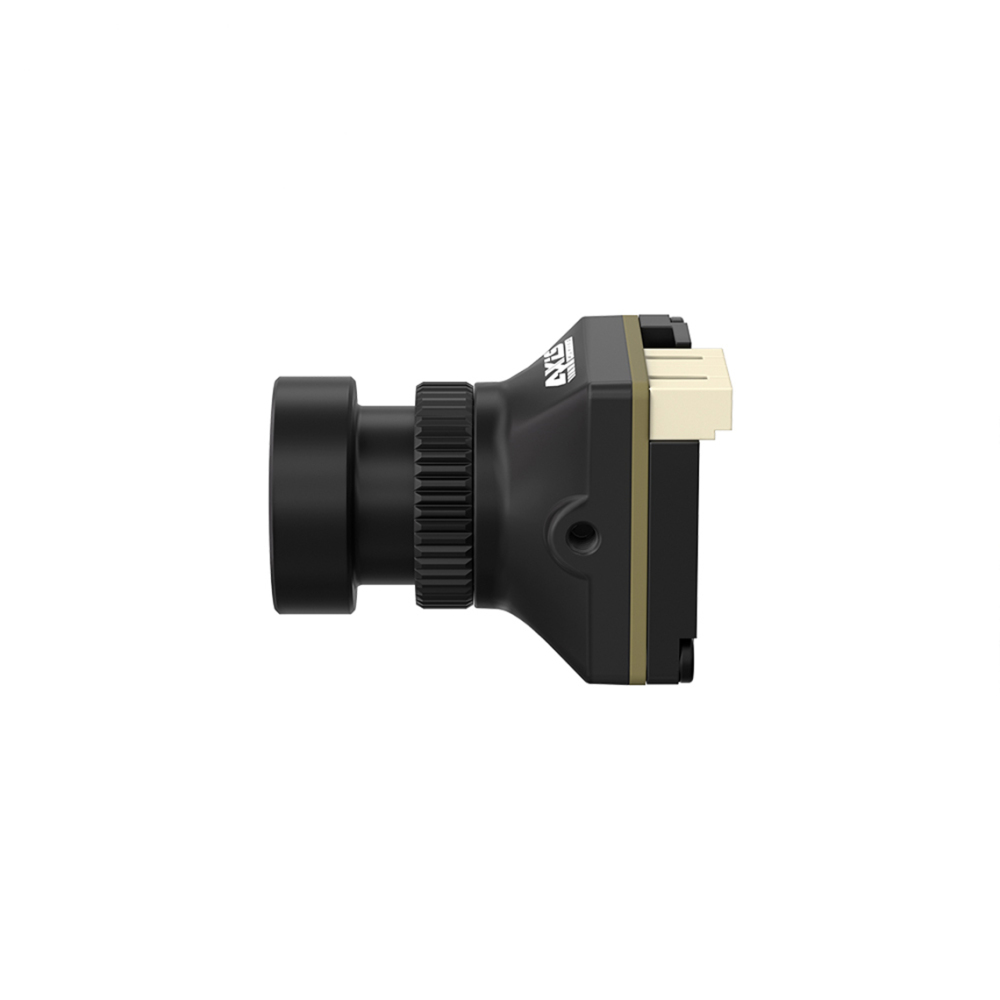

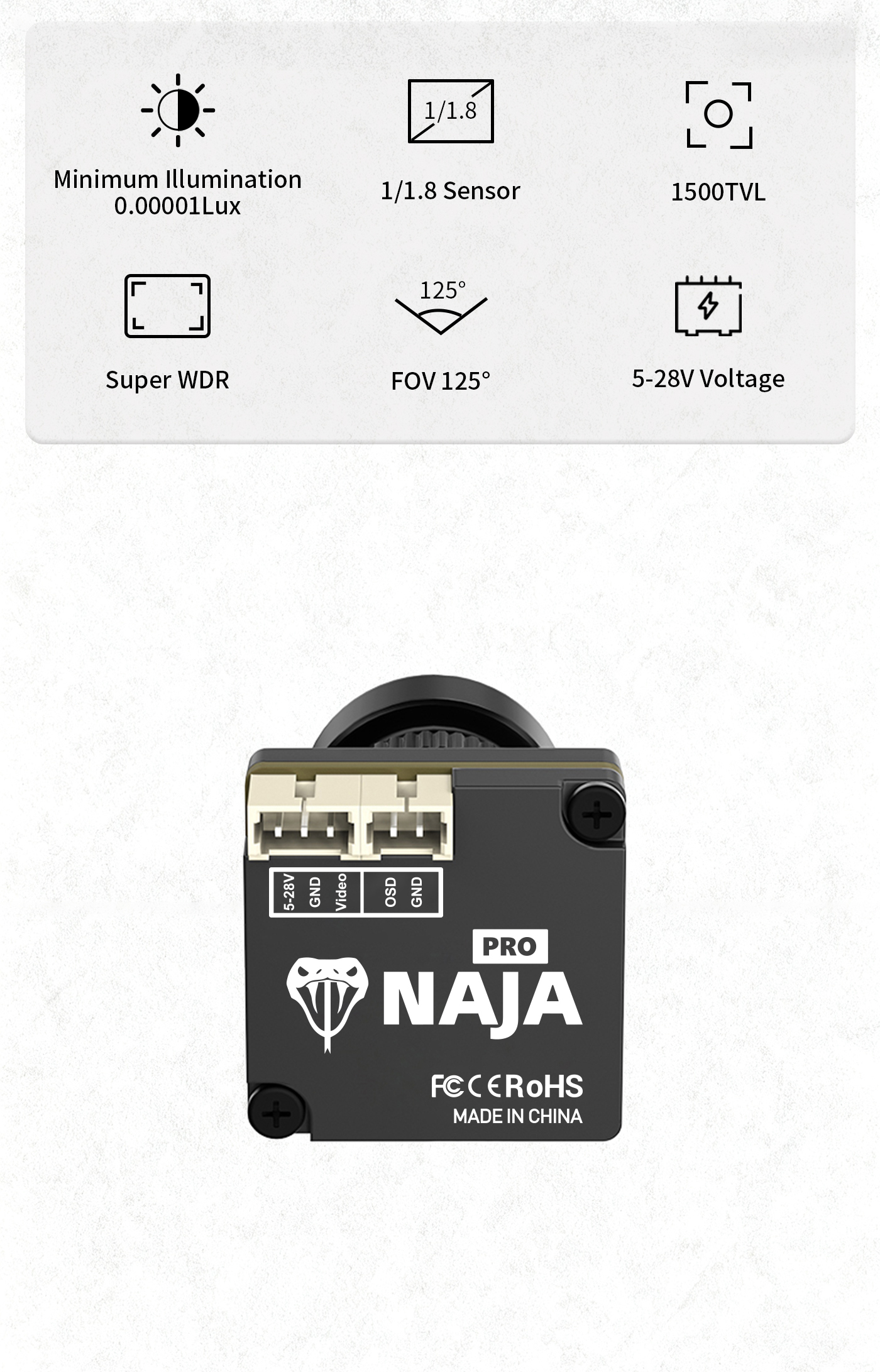

• NAJA Camera is a high-performance 1500TVL analog FPV camera, specially designed for DIY FPV drones and freestyle flight.

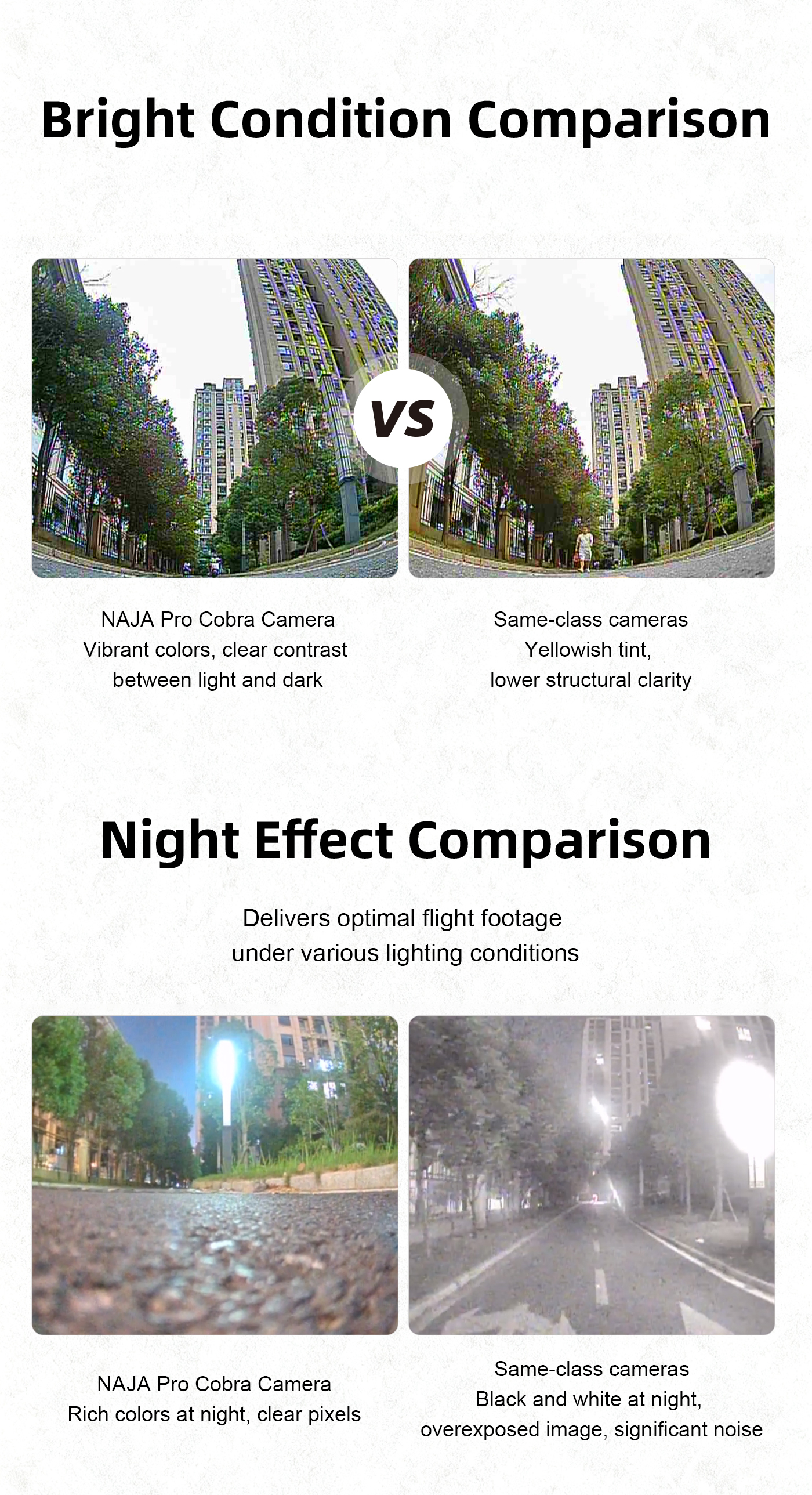

• Built-in 1/1.8" high-sensitivity sensor, with 0.00001 Lux ultra-low light capability, clear imaging day and night.

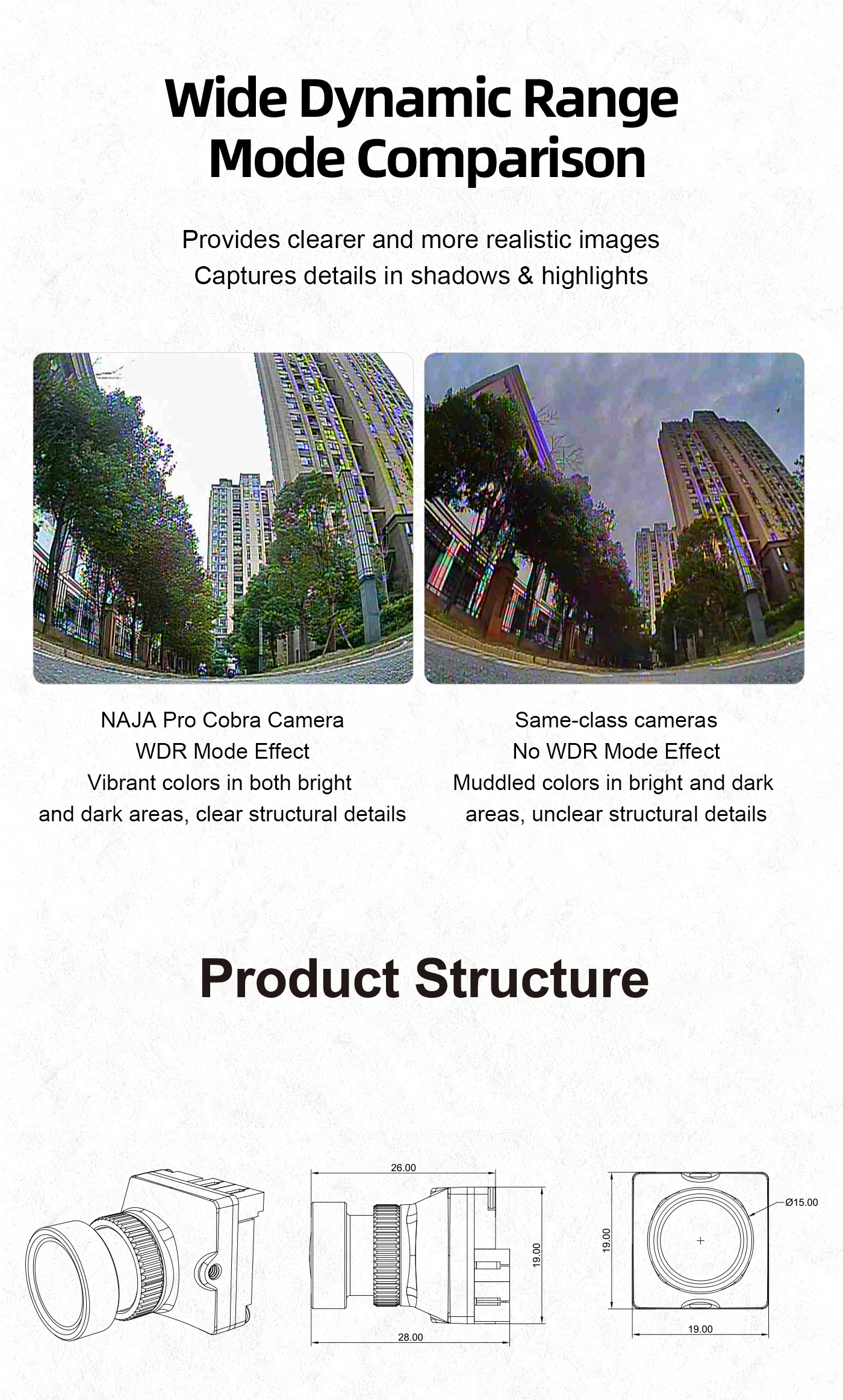

• Equipped with Super WDR (HDR) wide dynamic range, effectively suppresses glare and backlight, restores shadow and highlight details.
• 1500TVL high resolution with 125° super wide field of view, large view and stable picture for FPV control.

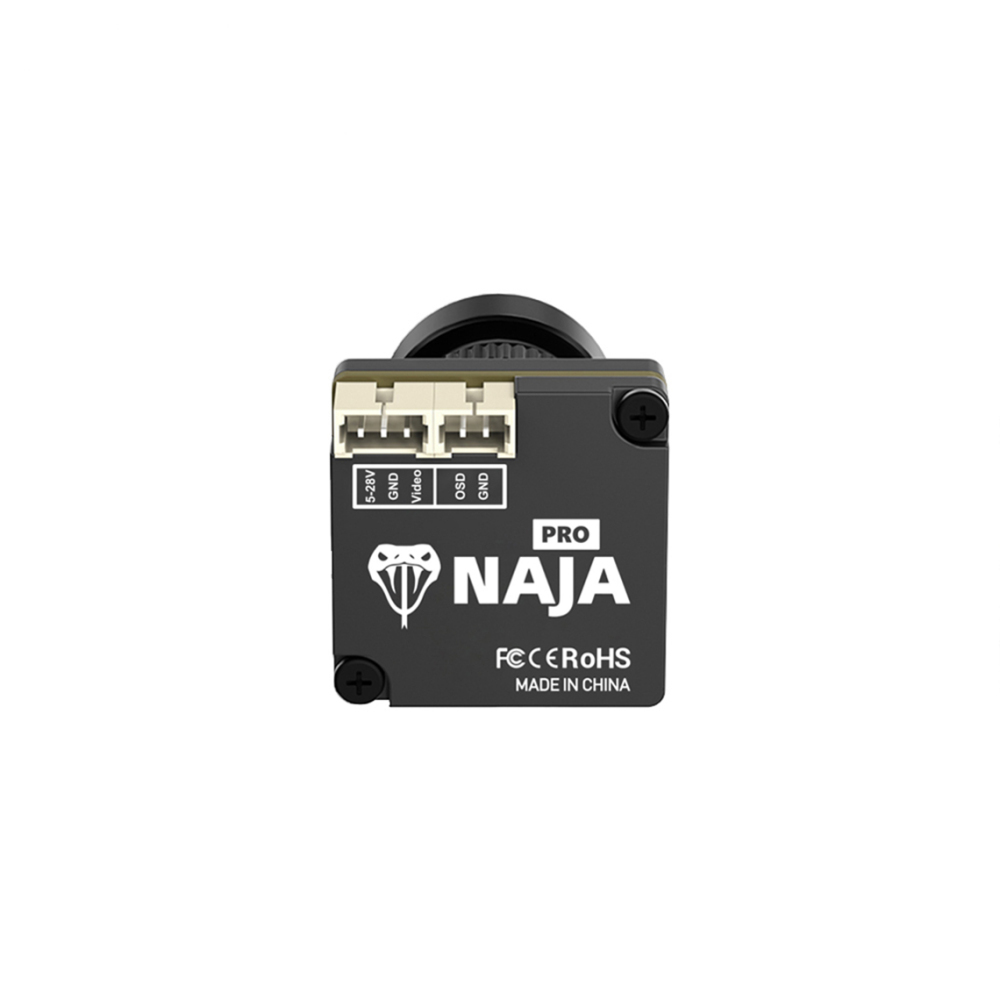

• Wide voltage input DC 5V–28V, compatible with 2S–6S battery systems, strong adaptability.
• Supports NTSC / PAL dual system, auto day/night mode, color/black-and-white switching.
• Built-in 3D-DNR digital noise reduction, effectively reduces image noise and improves picture clarity.

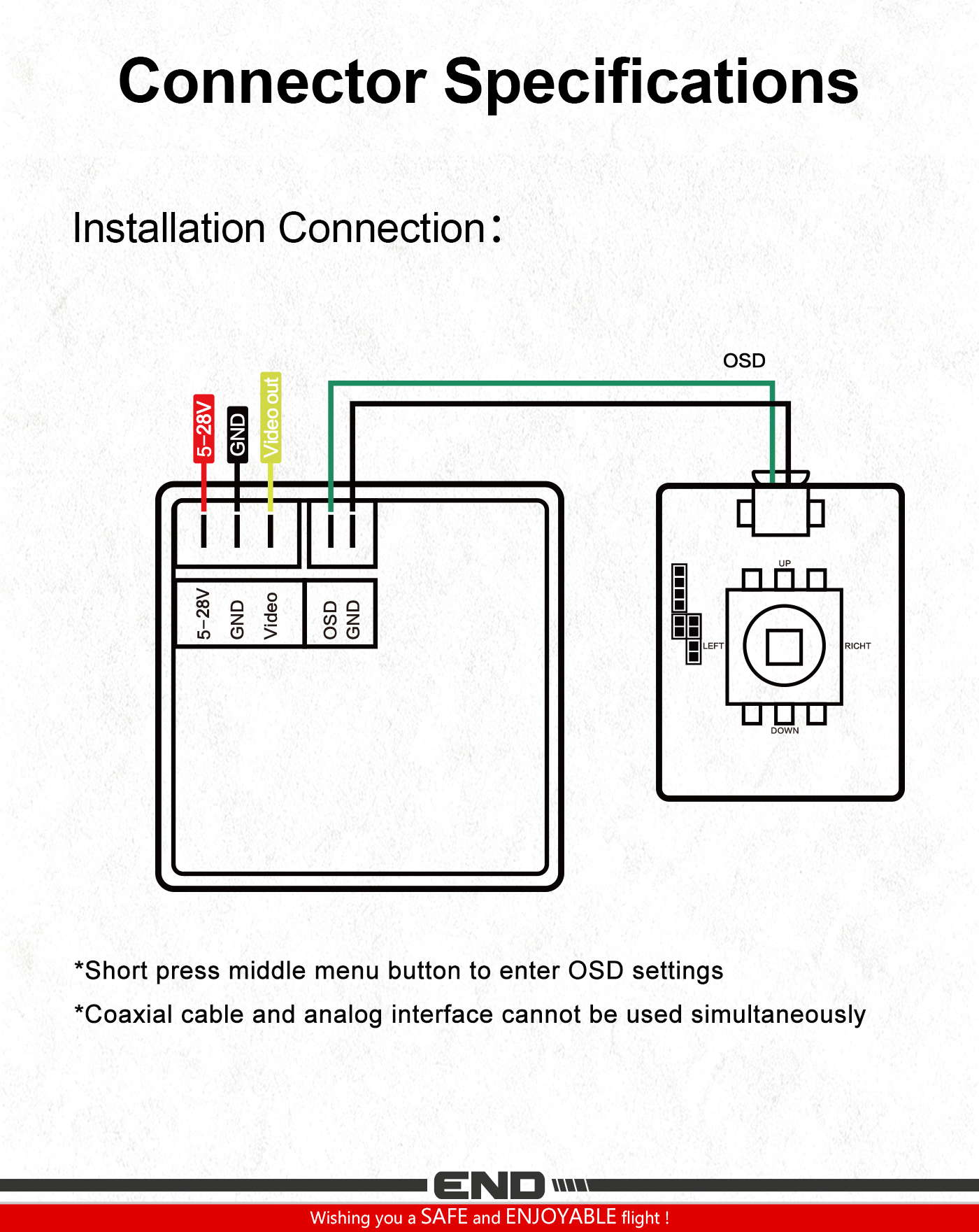

• Full-function OSD menu control, adjustable brightness, contrast, sharpness, saturation, white balance, etc.

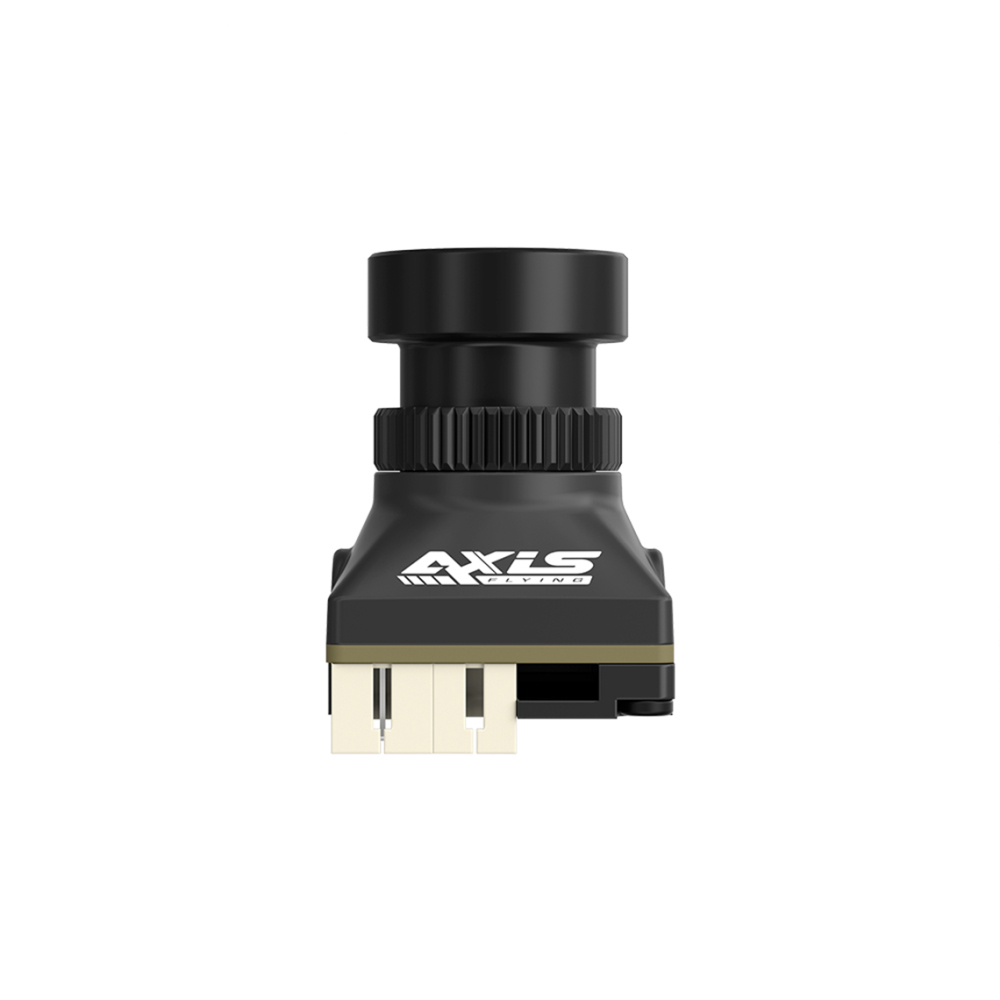

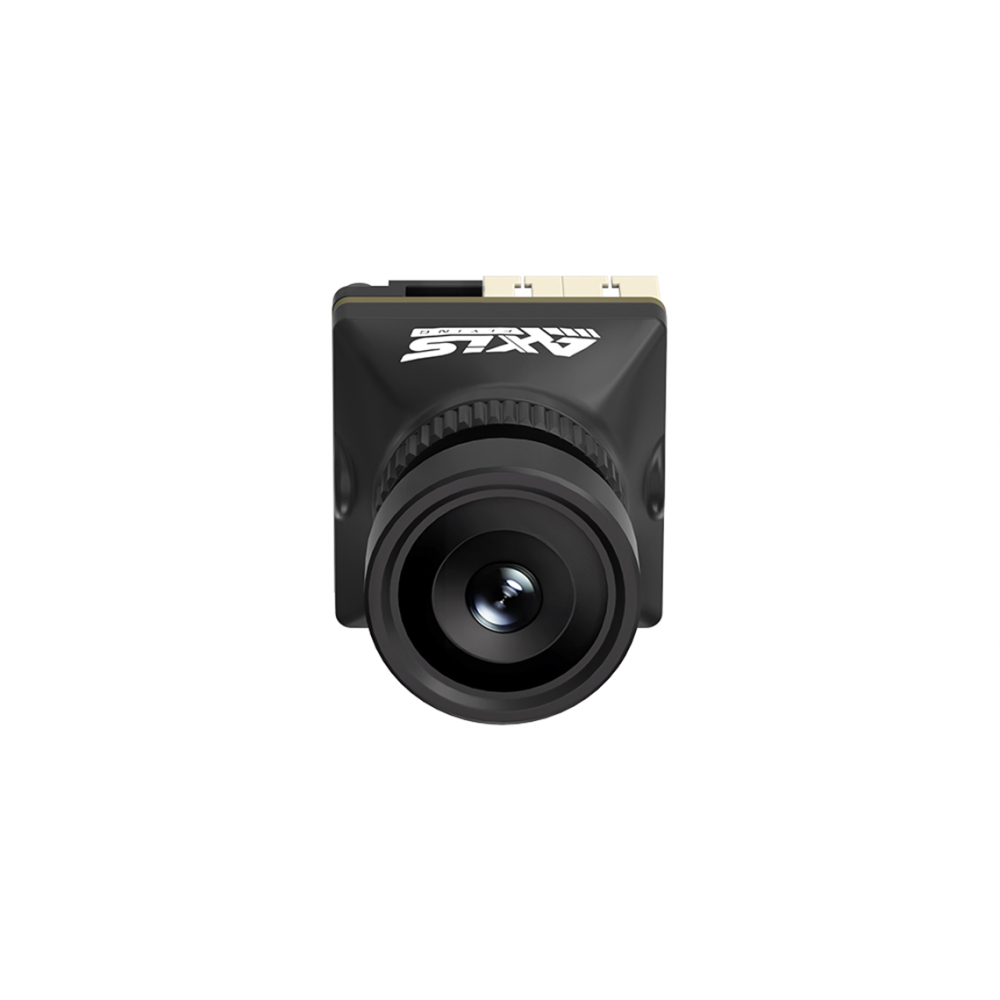

• Compact size 19×19mm (M2), standard installation, compatible with most FPV frames.
• Light weight only 6.0g, suitable for small FPV drones and DIY builds.

Recommended configuration

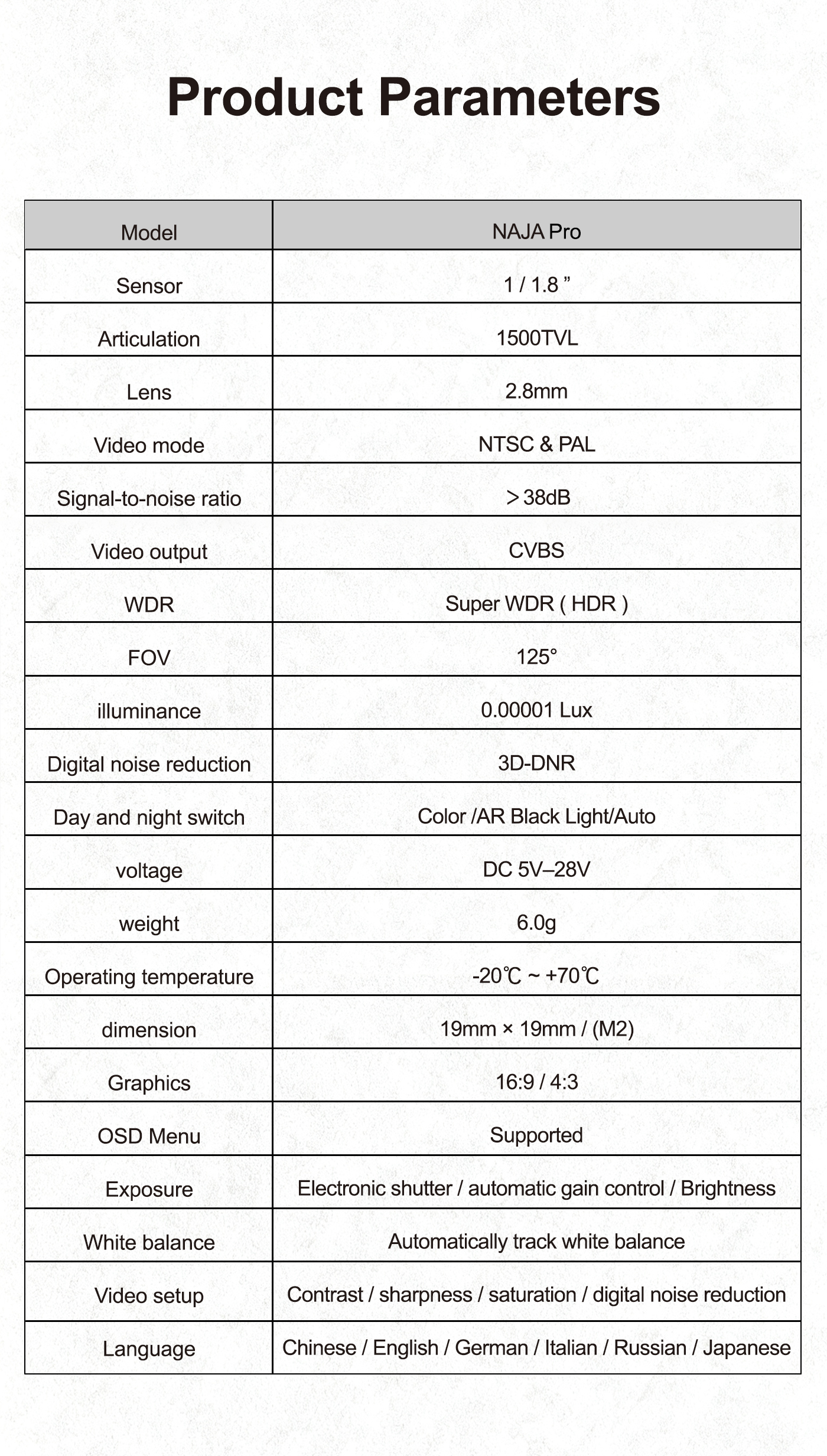

Specifications

US Tariff Information (for export to USA)

• Current US tariff for FPV cameras from China: 30% (composite tariff, valid as of May 2025)
• Key policy changes:
  • Entry Type 86 ($800 duty-free) is terminated; all shipments are dutiable.
  • Tariff reduced from 145% to 30% temporarily (90 days).
