*Forword

- Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Axisflying combines CNC aluminum parts with high quality carbon plates to bring the MANTA series of freestyle frame with a unique and innovative design in the industry.

*Feature

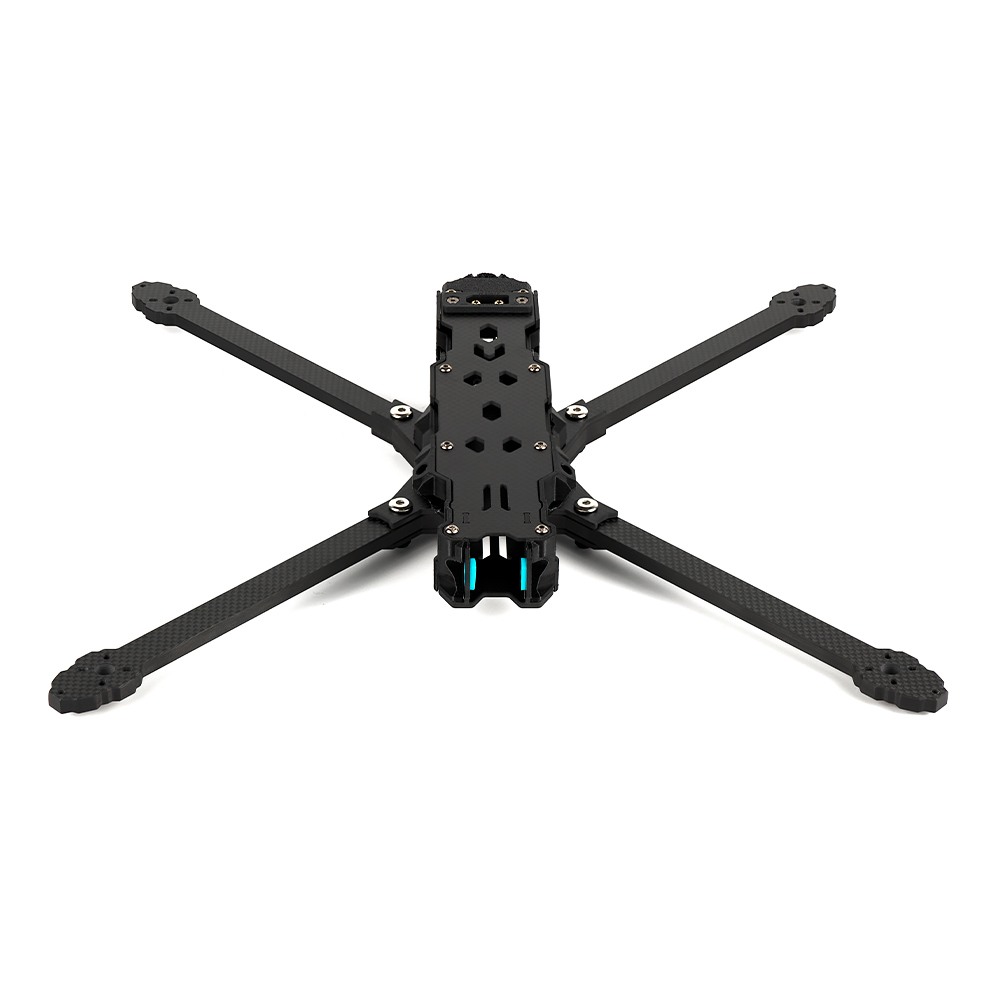

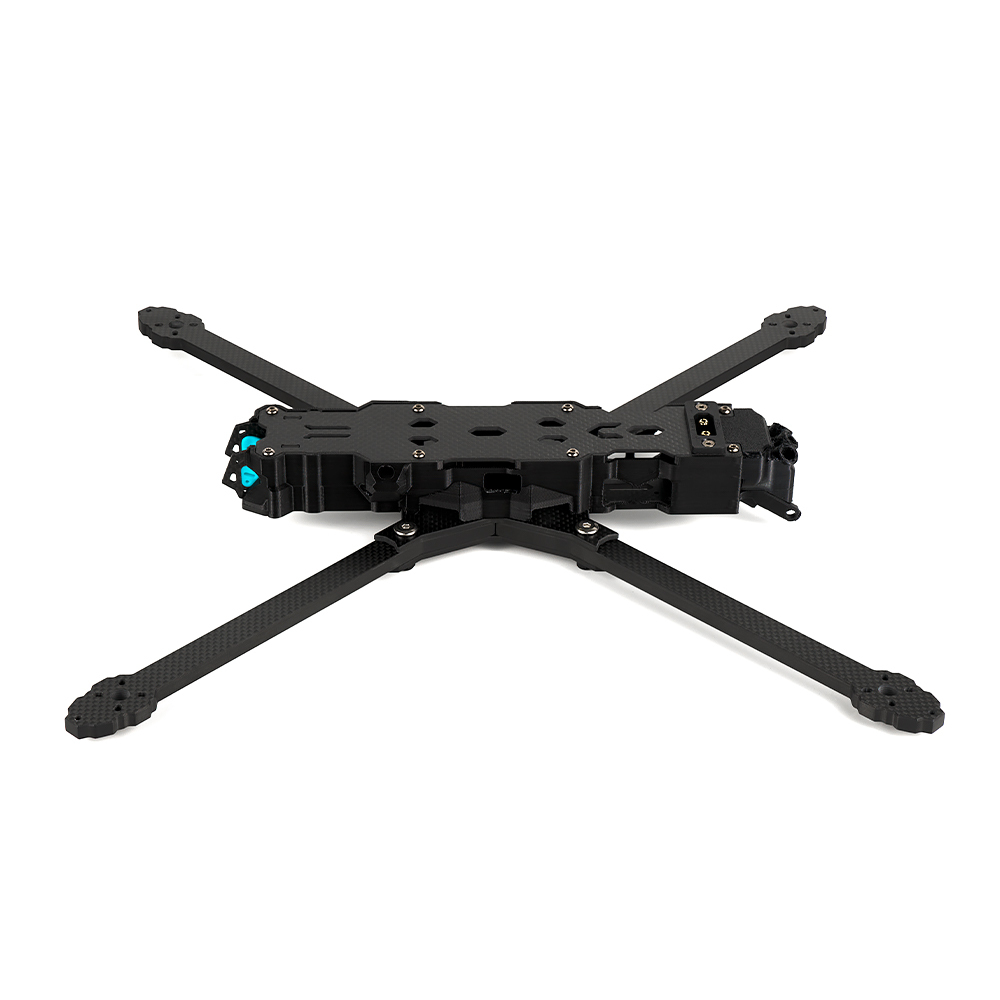

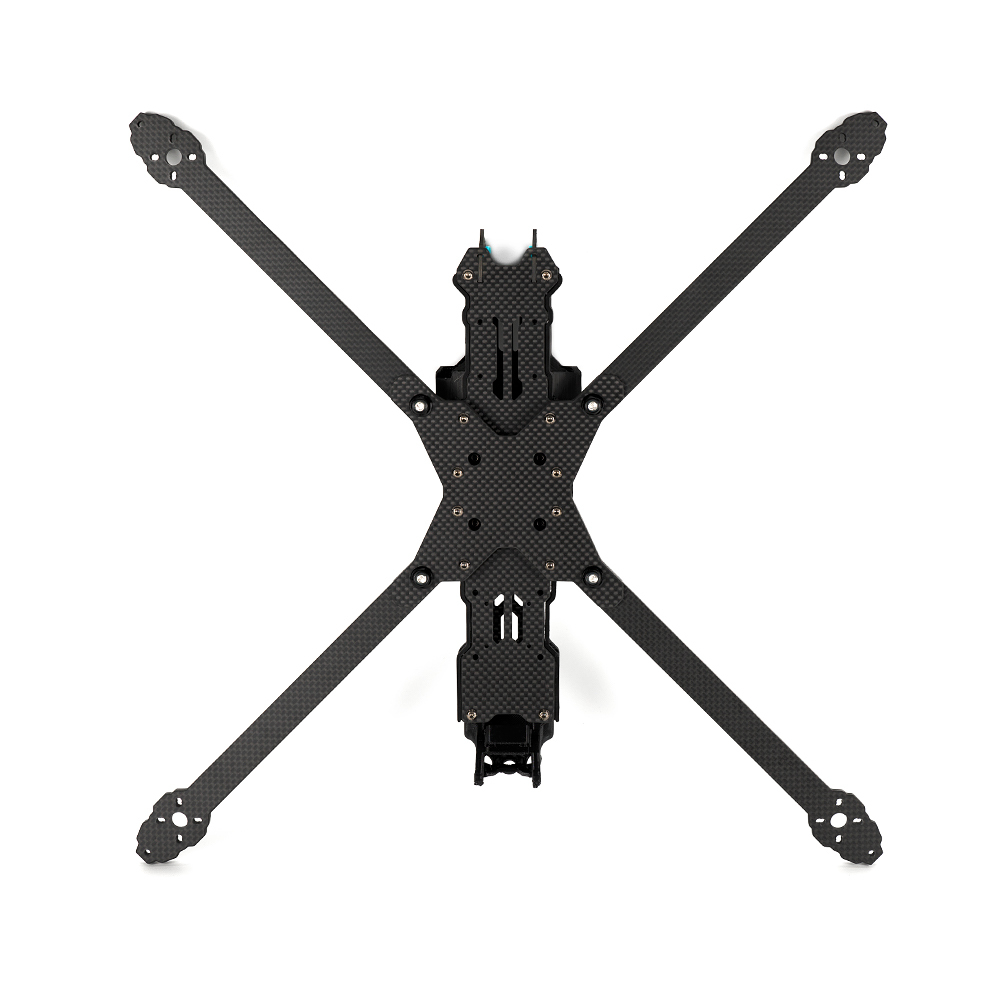

- MANTA frame is specially designed for 10-inch Freestyle and Cine, launched in two versions: Squashed X and True X.

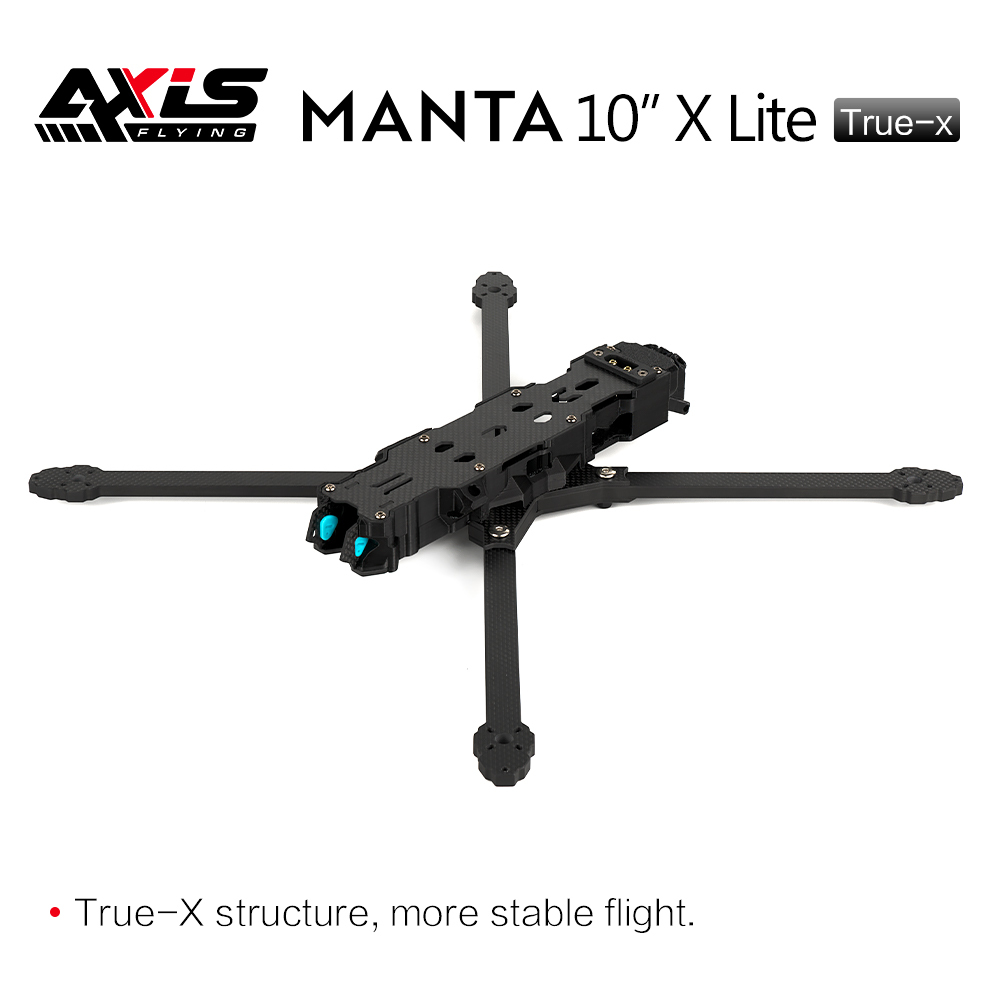

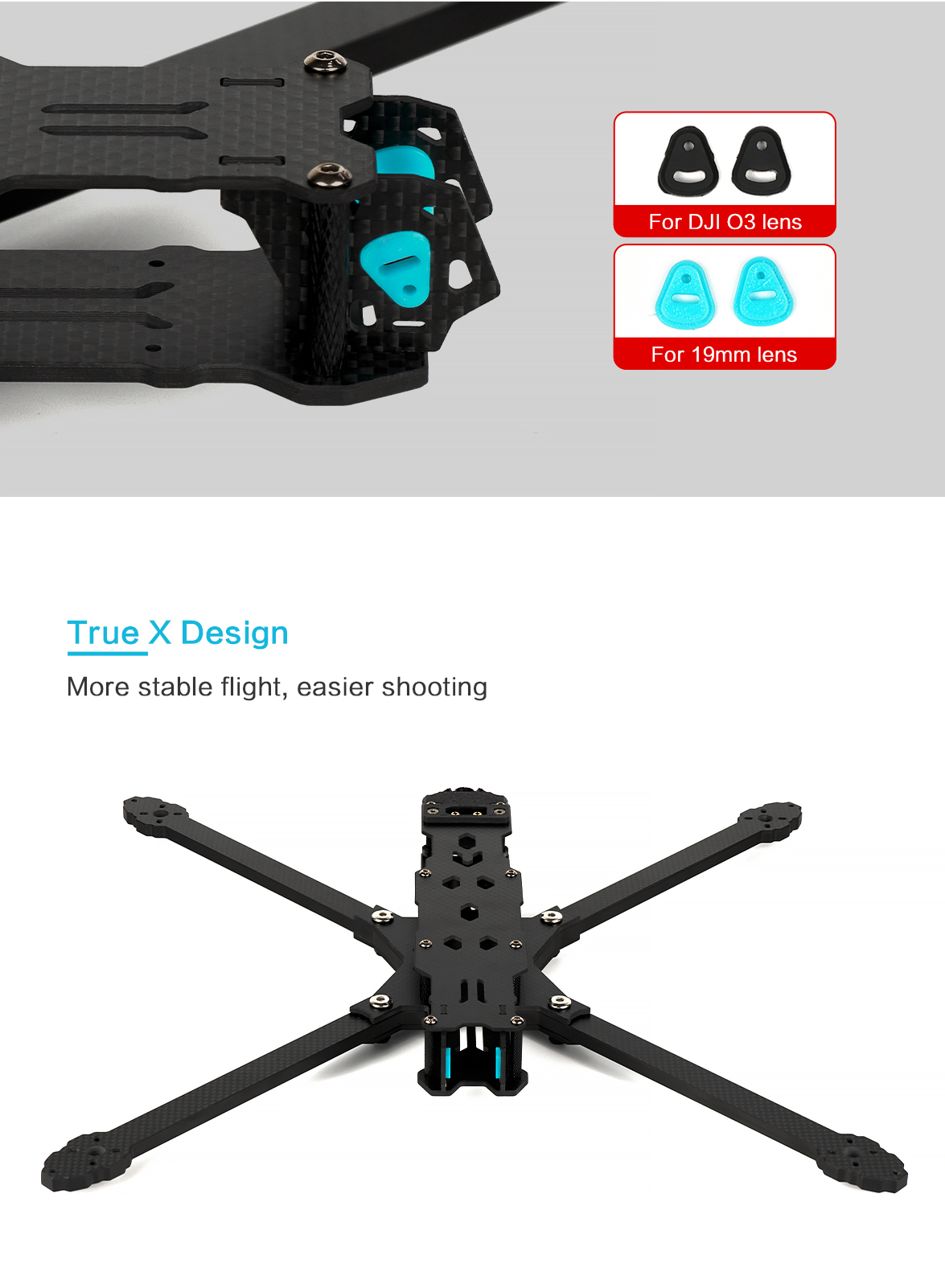

- True X design is silky smooth and more stabled which more suitable for cinematic shooting

- The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.

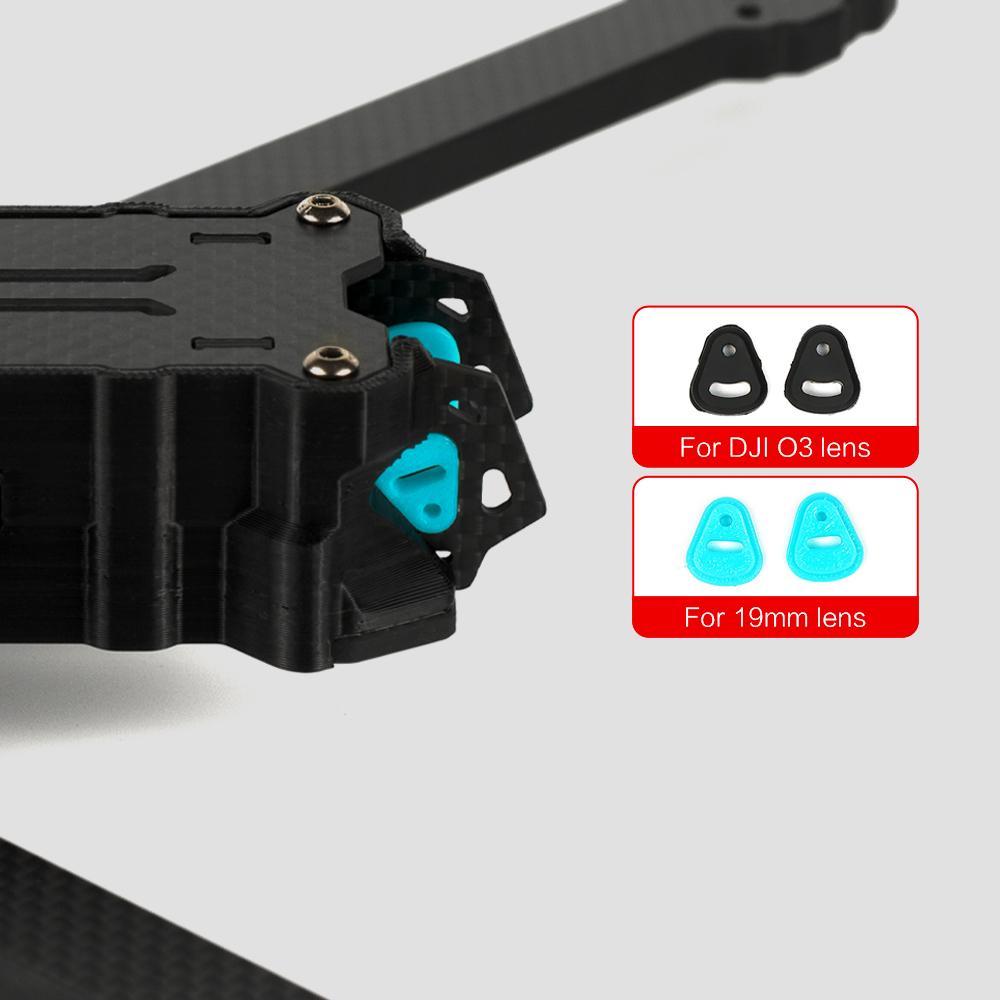

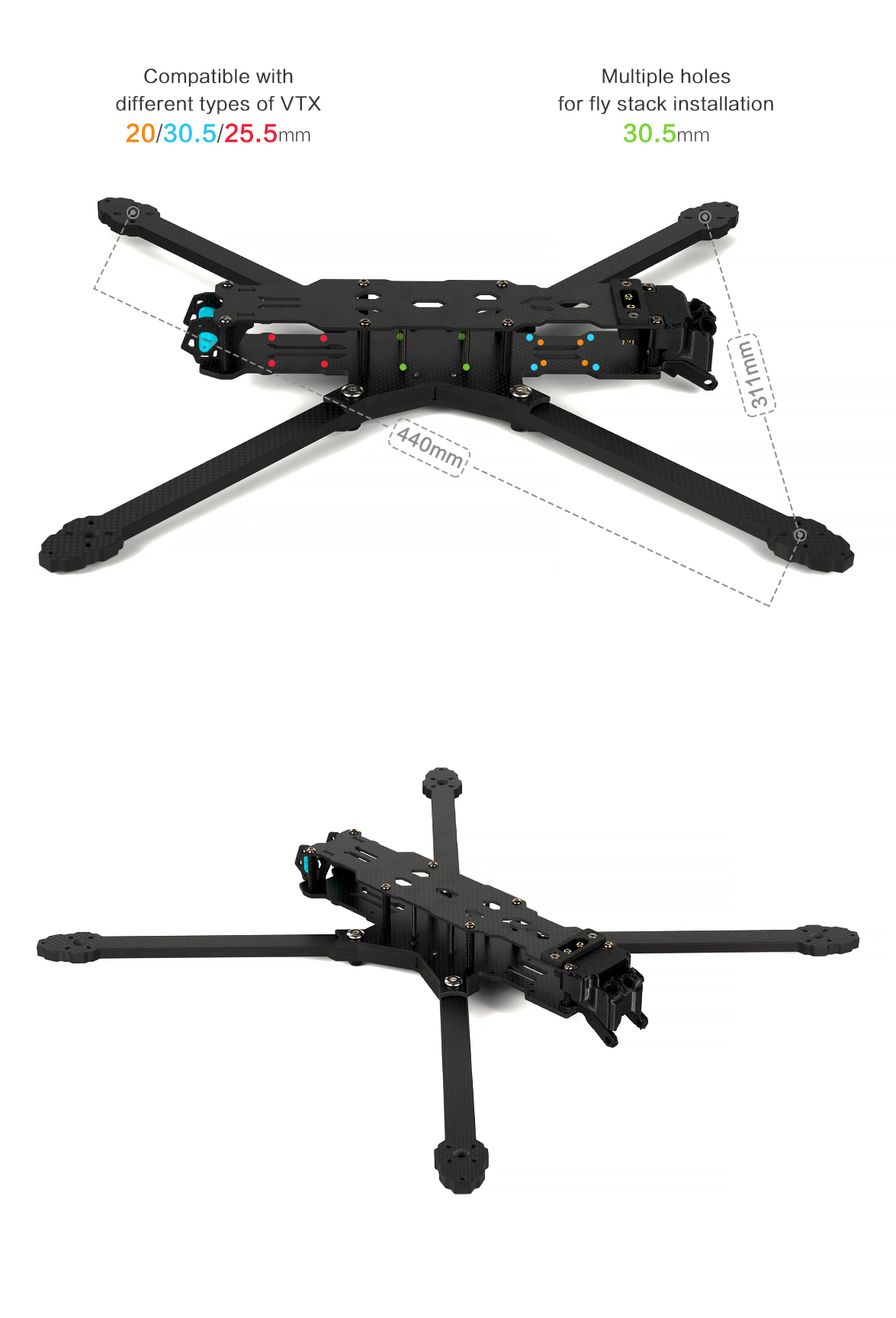

- The frame is compatible with 19-22MM wide FPV camera, and the aluminum side plates can effectively protect the camera. Now upgraded the print section, the lens is fixed more firmly, no jelly.

- The motor mounting holes are M3*16/19mm, AE3115 900kv, and 10″ propellers are recommended.

*Specs

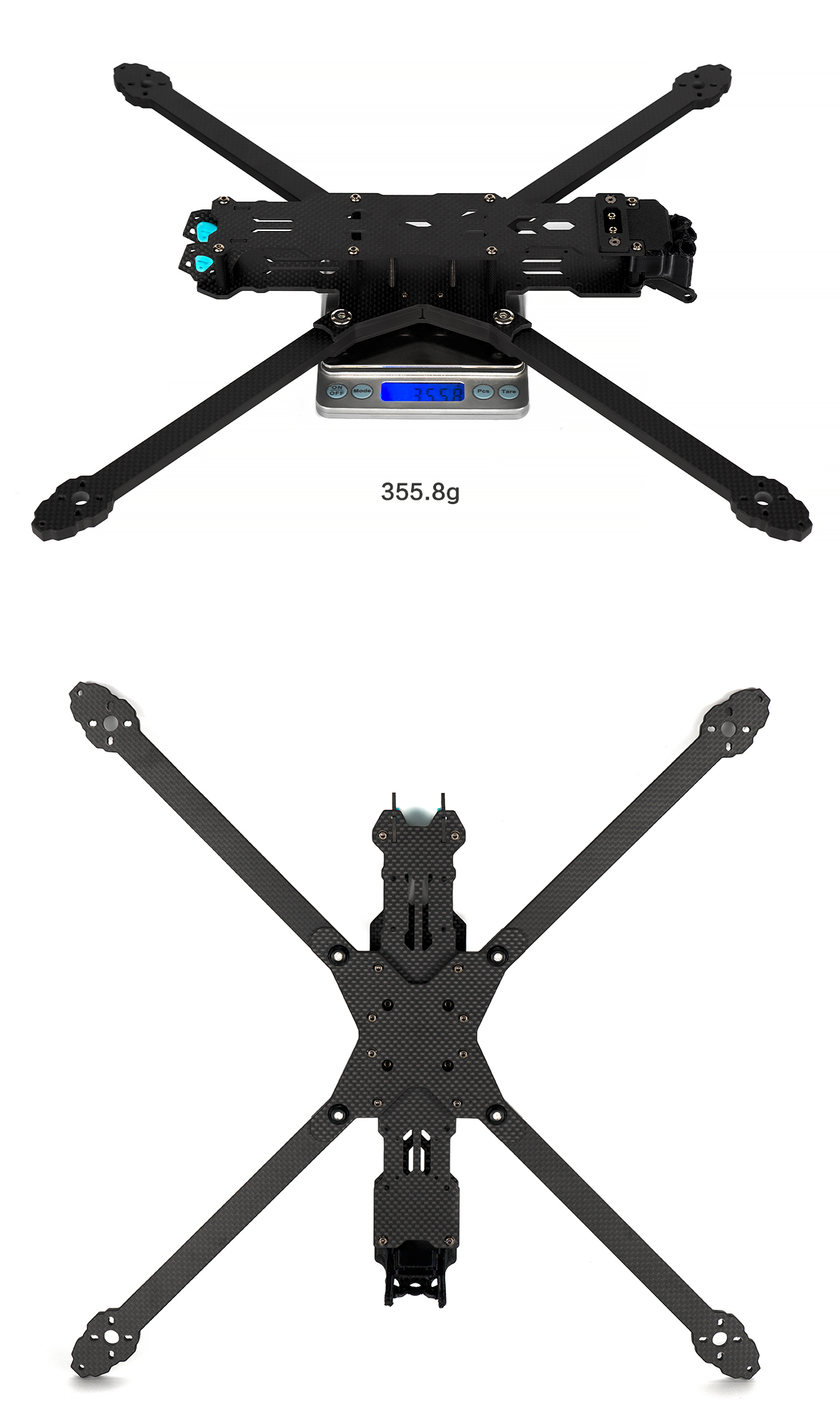

- Wheelbase :402mm  /  Weight: 272±5g /  Carbon Fiber: T700  /  Props: Max 10.0inch

*Recommended Configuration

- MOTORS:  Axisflying AE3115 900kv motors

- Lipos: 7500mAh 6S

- STACK: Axisflying Argus 60A + F405

- Propellers: 10 inch props
