Foreword

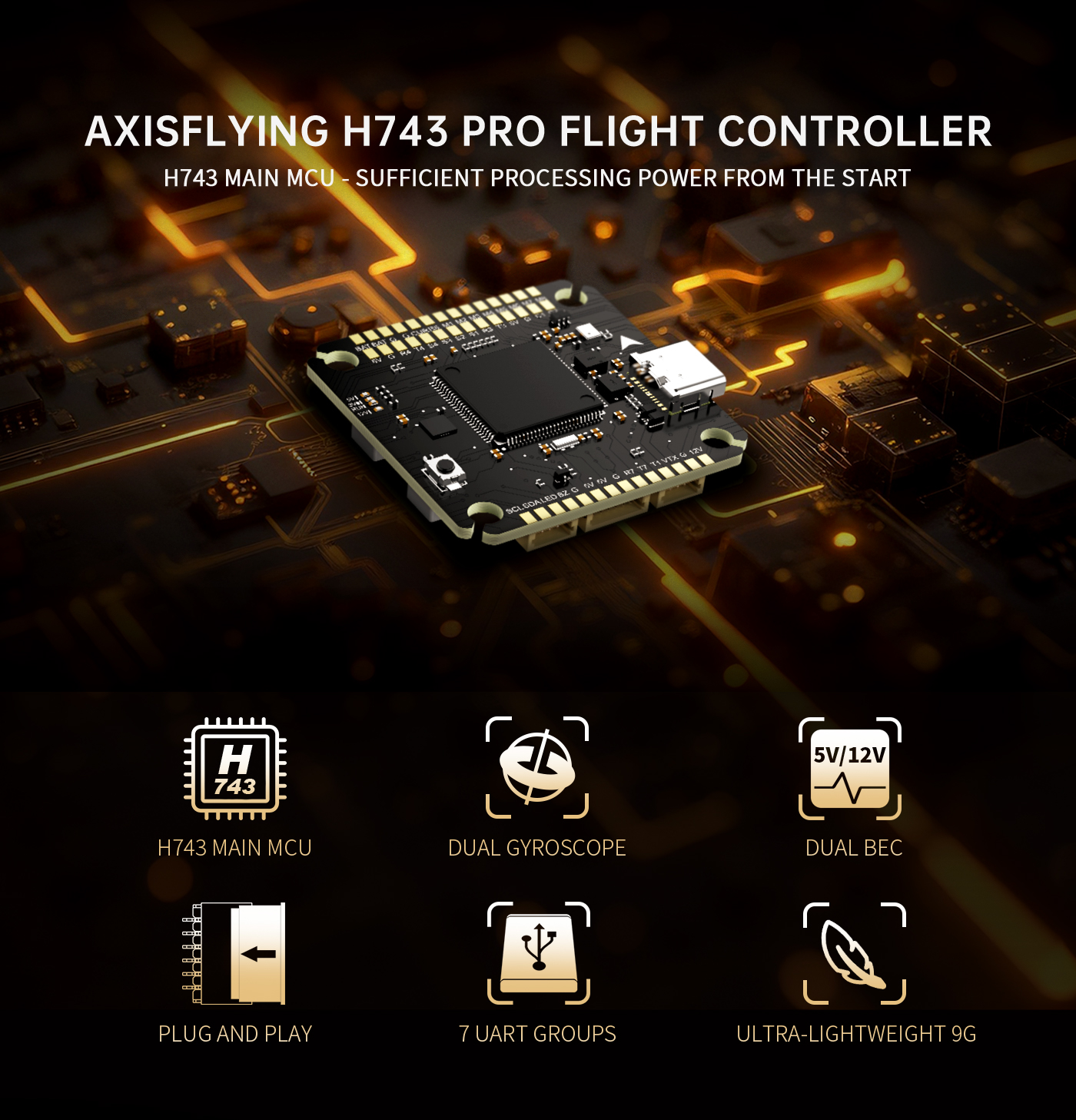

Feature

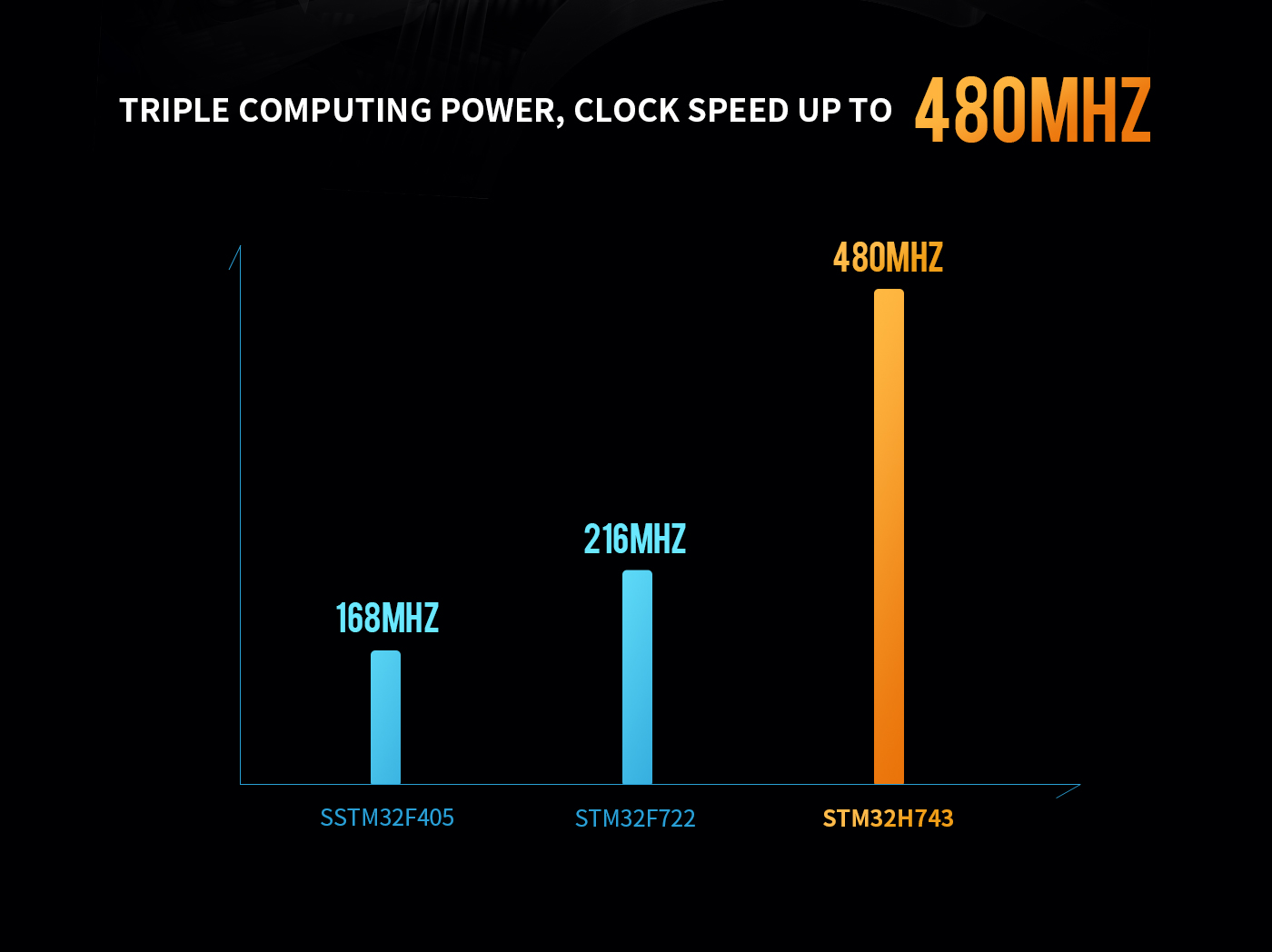

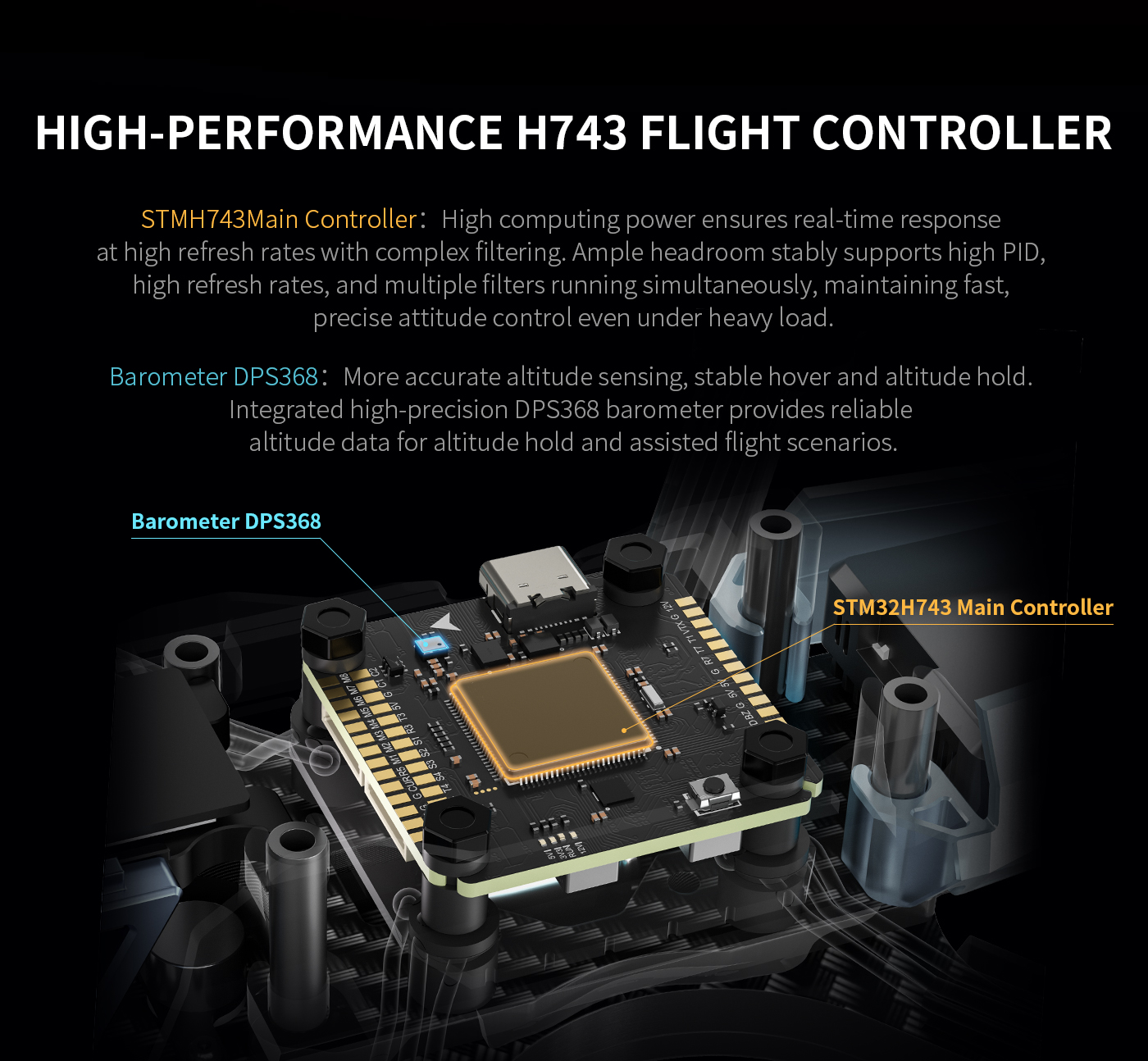

• Flagship STM32H743 main controller, clock speed up to 480MHz for strong computing performance

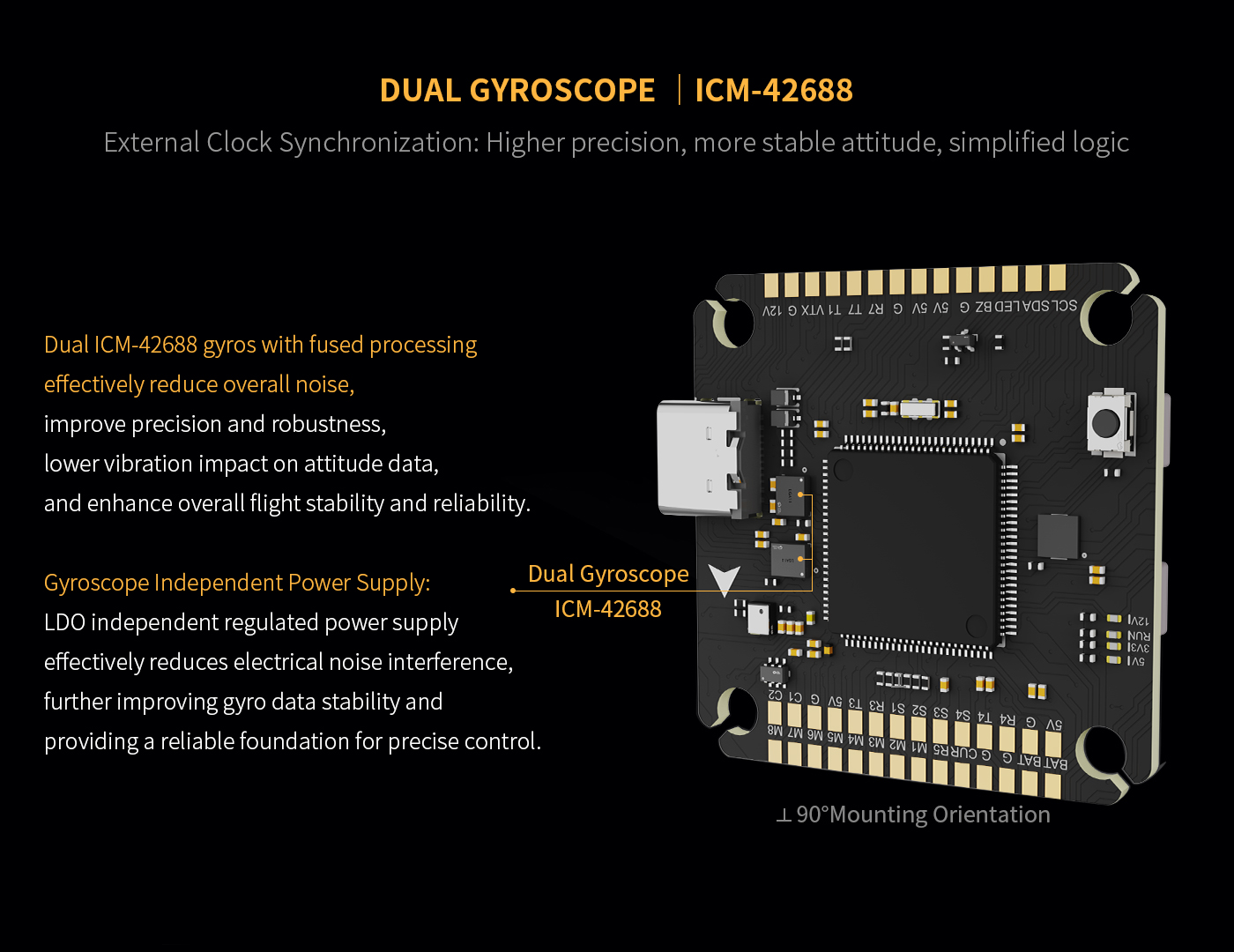

• Dual ICM42688P gyros with external clock sync and independent power supply for ultra‑stable data
• High‑precision DPS368 barometer for accurate altitude hold and stable hovering
• Dual BEC output: 5V/2.5A + 12V/2A for stable power supply to peripherals

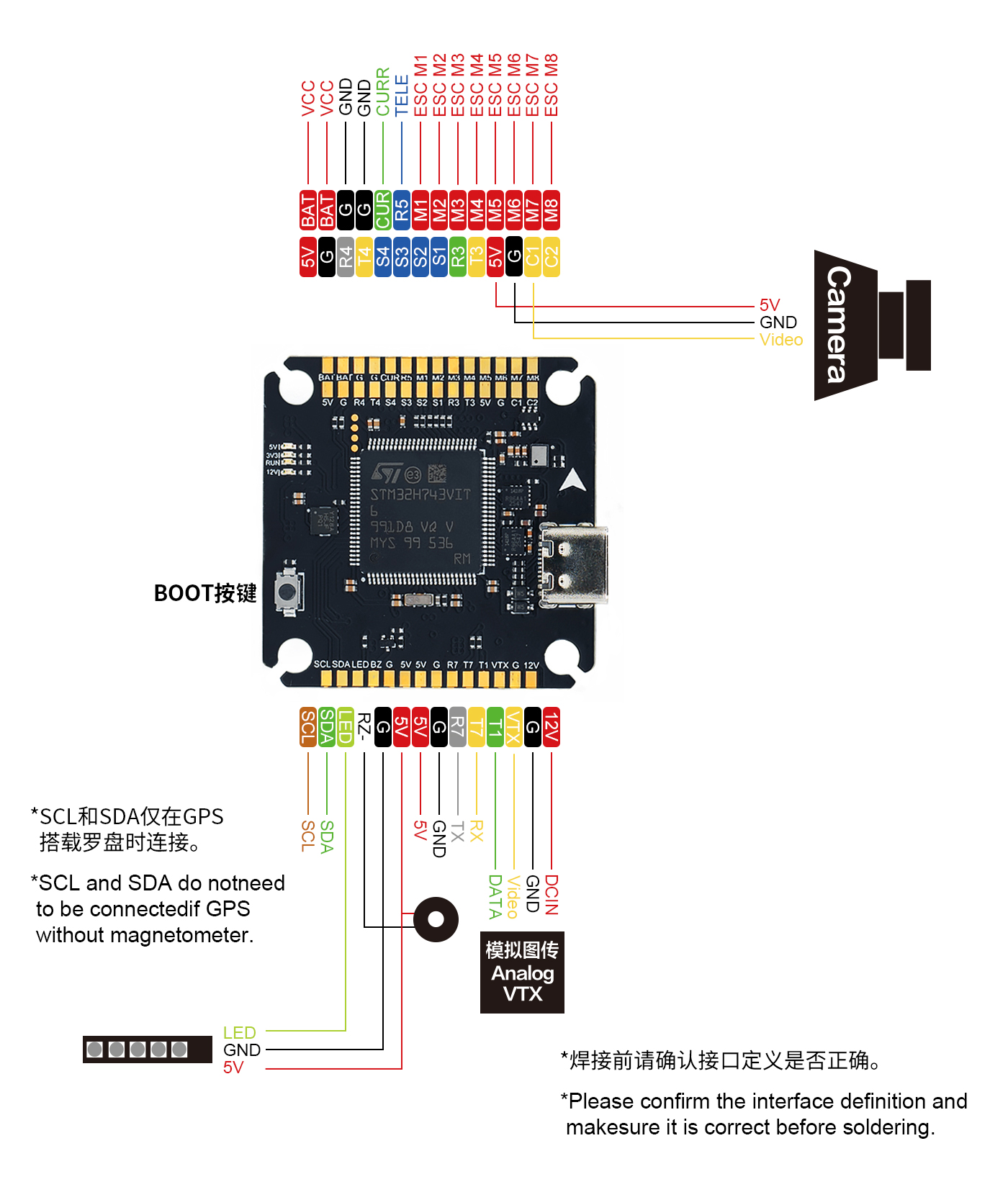

• 7 UART ports for rich expansion (receiver, GPS, VTX, HD system, etc.)
• Onboard OSD, 16M Blackbox, and current sensor supported

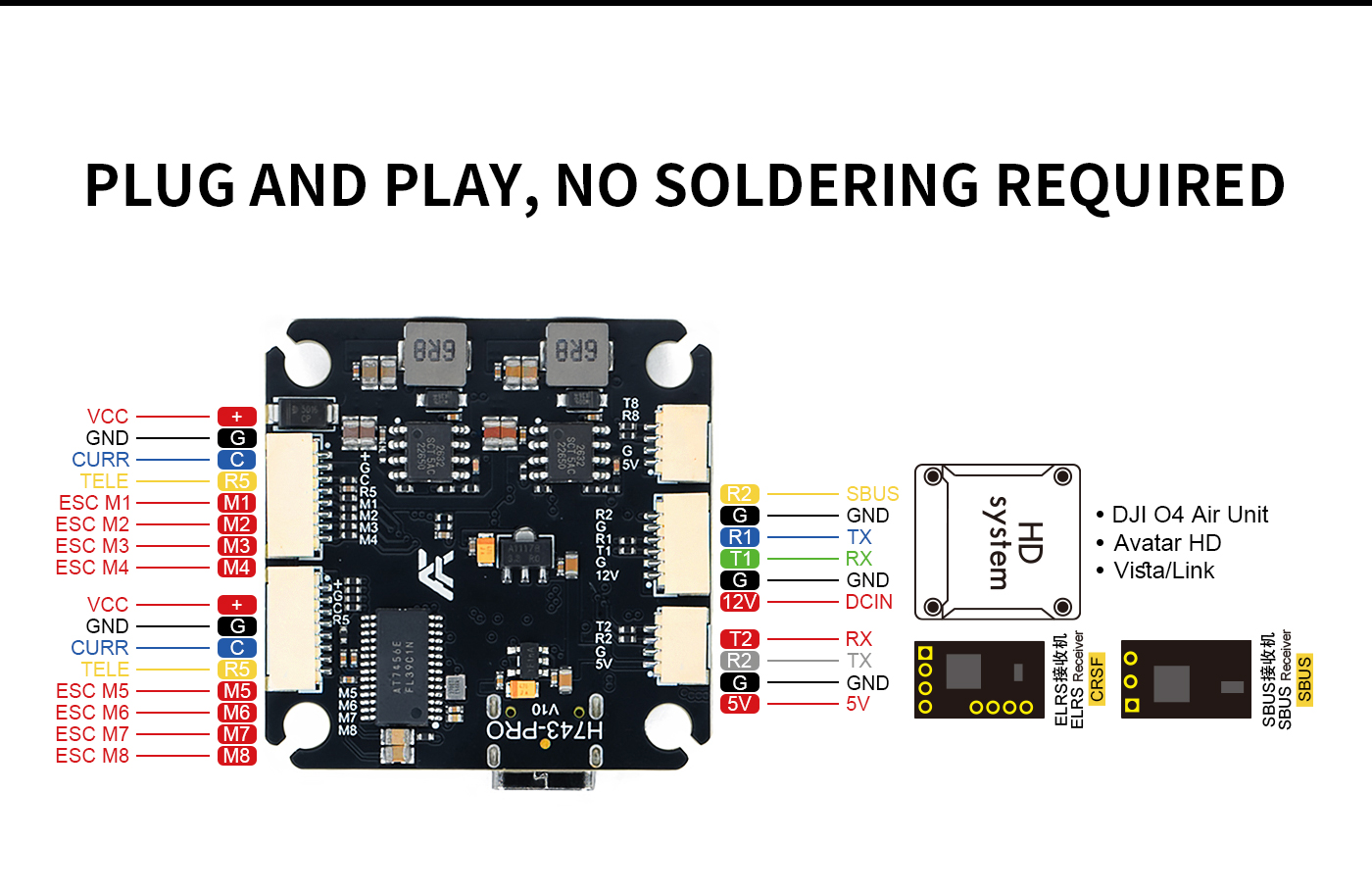

• Plug‑and‑play design, no soldering required for most connections
• Standard 30.5×30.5mm mounting holes for universal stack compatibility

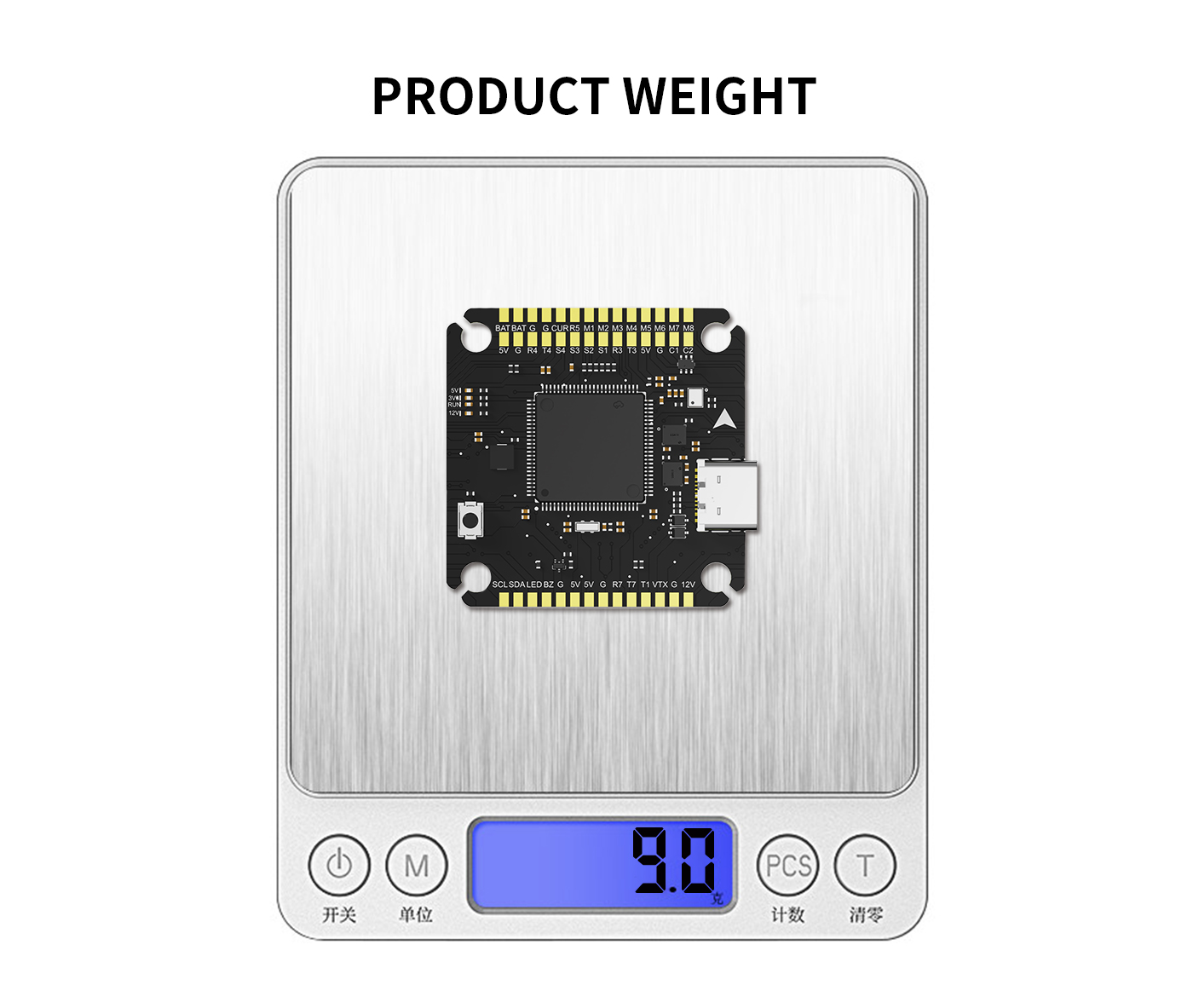

• Ultra‑light weight at only 9g

Recommended Configuration

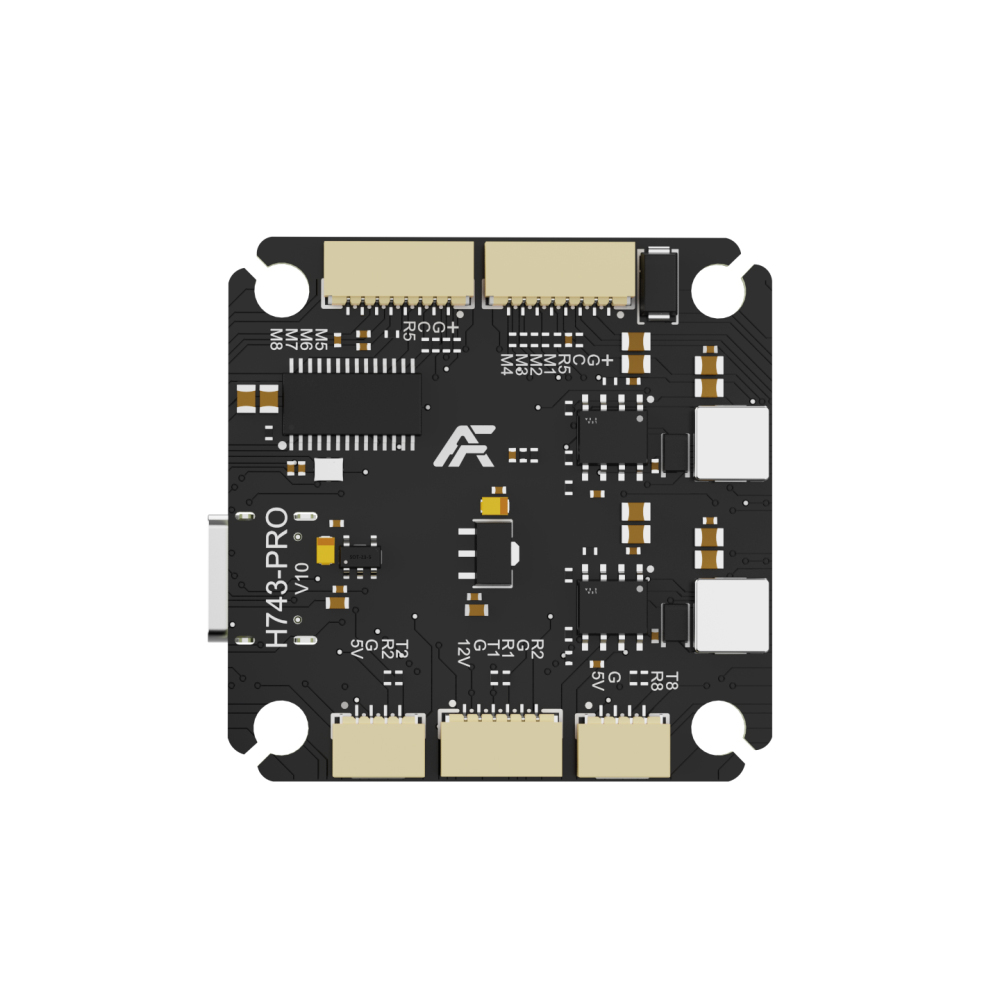

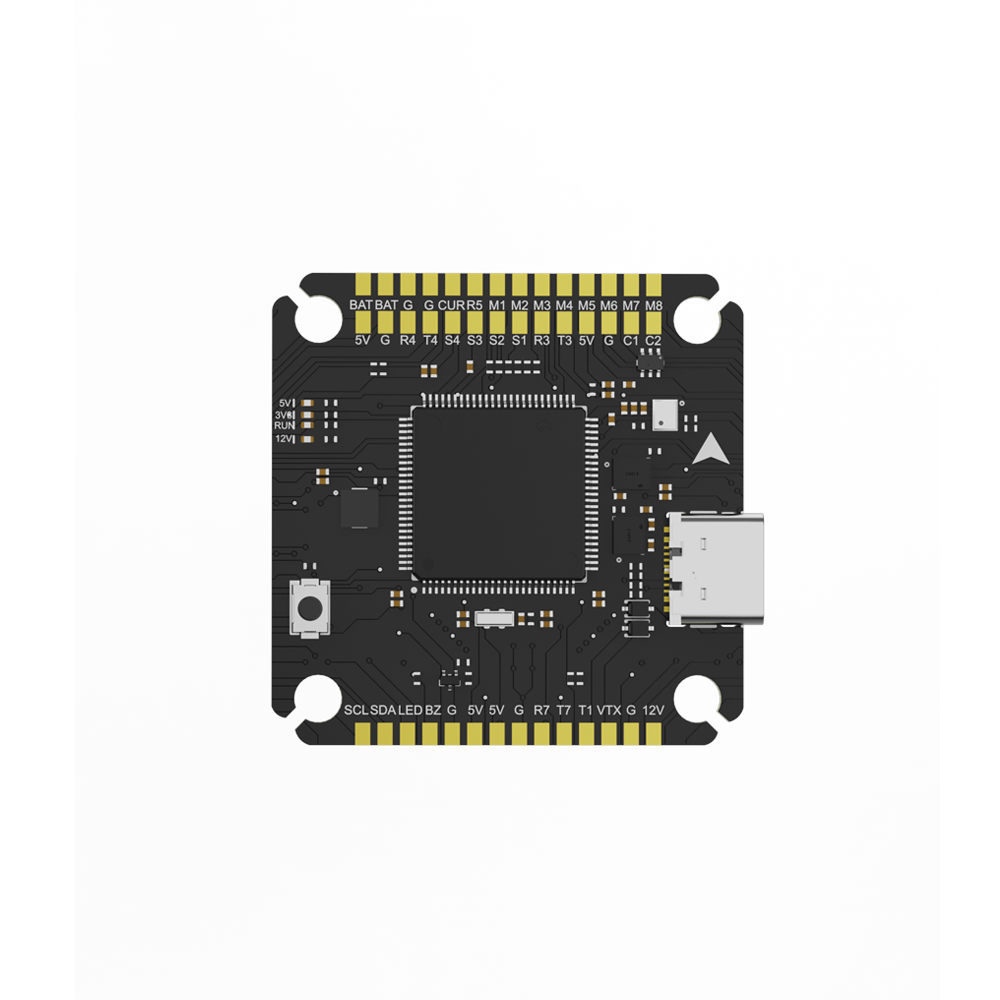

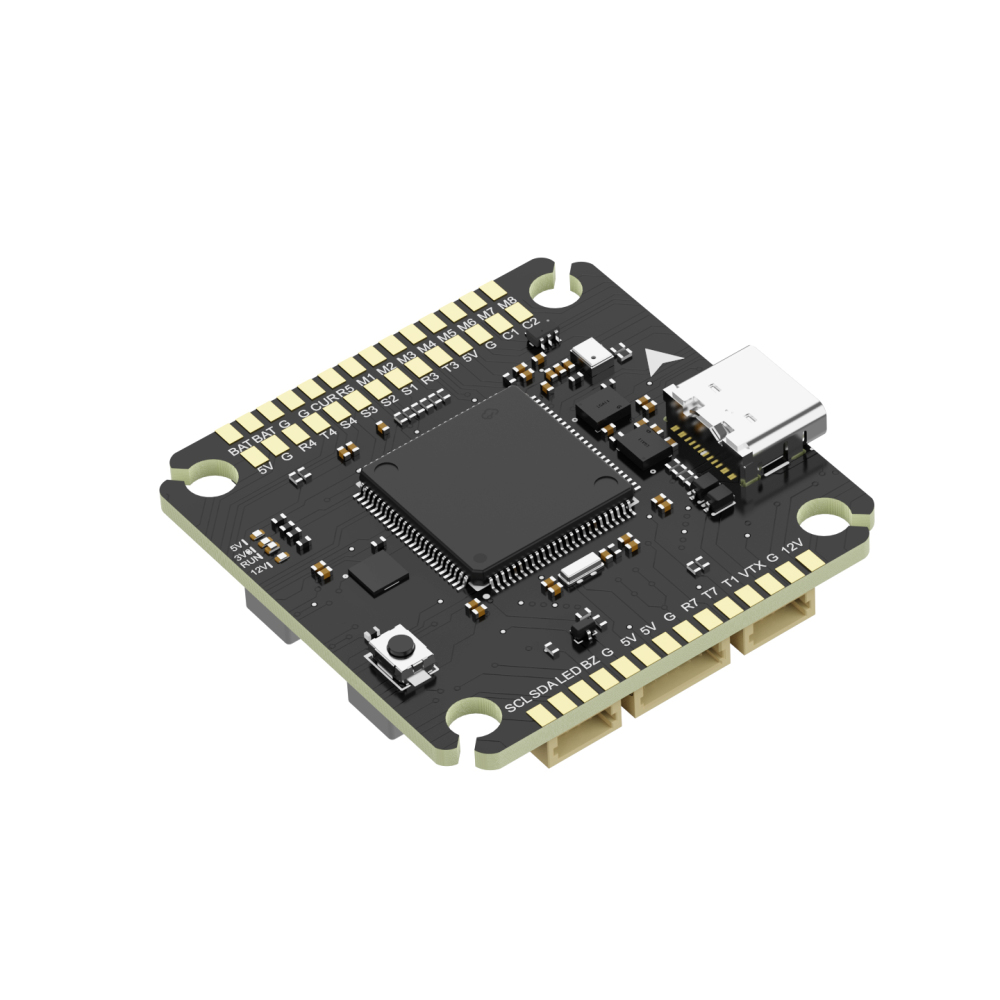

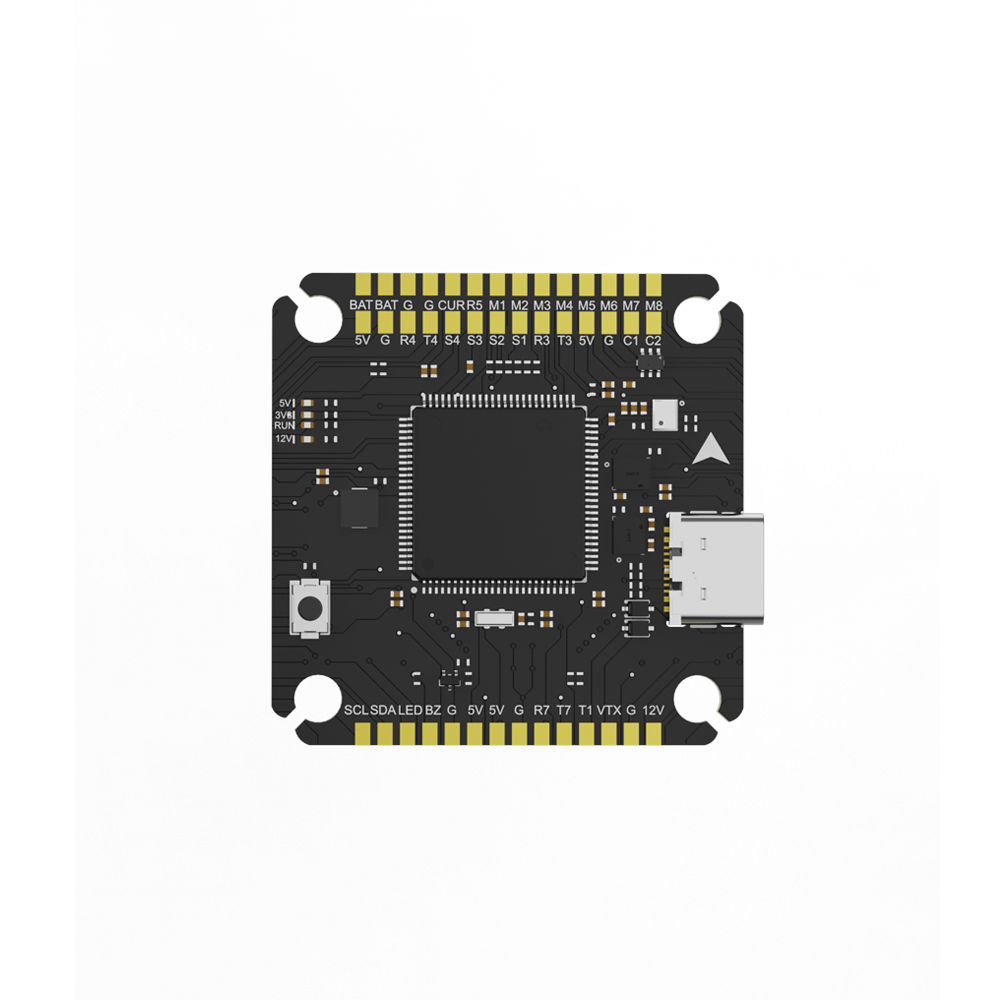

• Model: Axisflying H743 PRO Flight Controller
• Input Voltage: 4–8S LiPo
• Mount: 30.5×30.5mm / M3
• Application: 5–10 inch freestyle, long‑range, heavy‑load and cinematic FPV drones

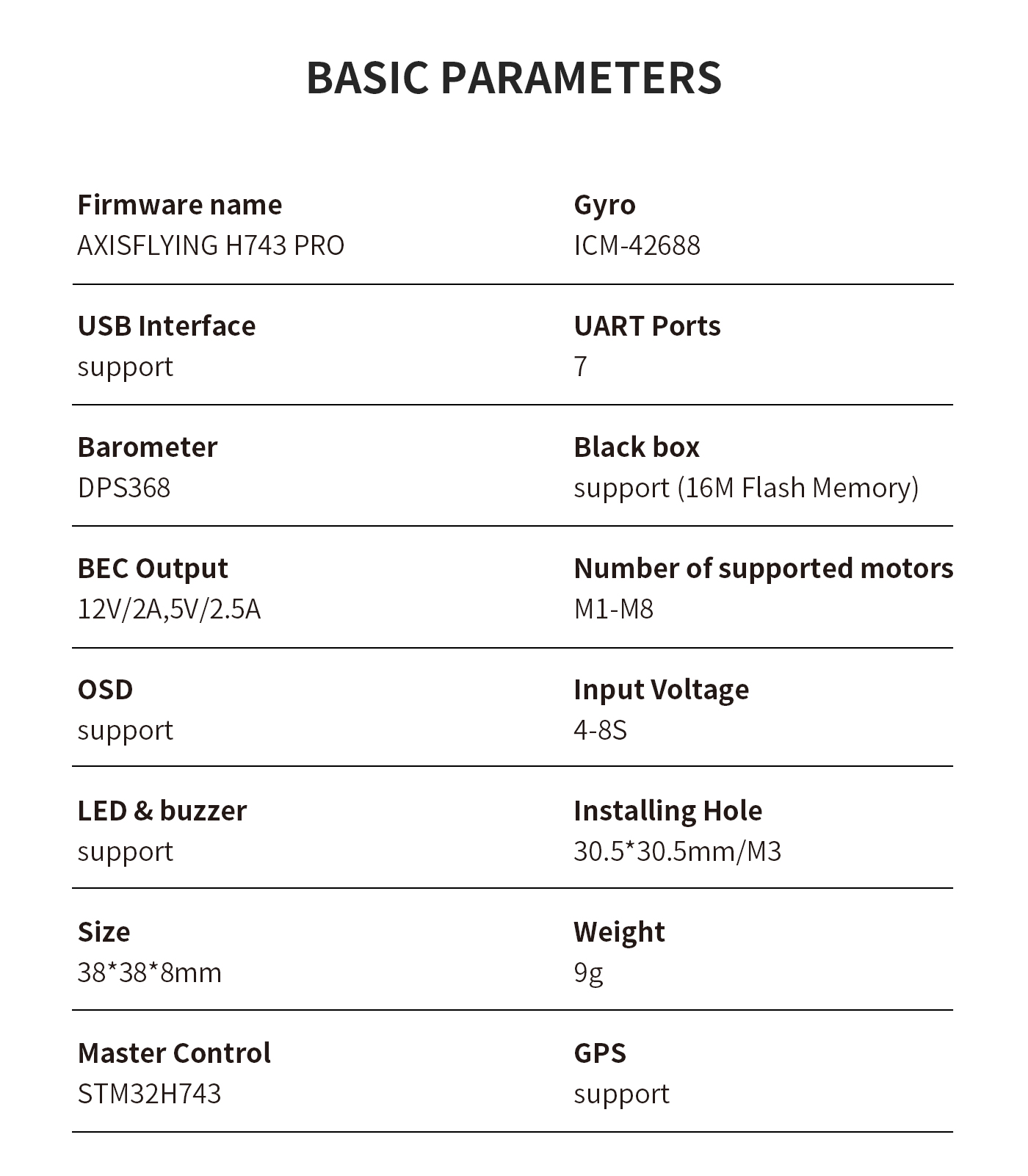

Specifications

• Main Control: STM32H743
• Gyro: Dual ICM42688P
• Barometer: DPS368
• OSD: Supported
• Blackbox: 16M Flash Memory
• Input Voltage: 4–8S LiPo
• BEC Output: 5V/2.5A, 12V/2A
• UART Ports: 7
• Motor Outputs: M1–M8 (8 motors supported)
• USB Interface: Type‑C
• LED & Buzzer: Supported
• Current Sensor: Supported
• Install Hole: 30.5×30.5mm / M3

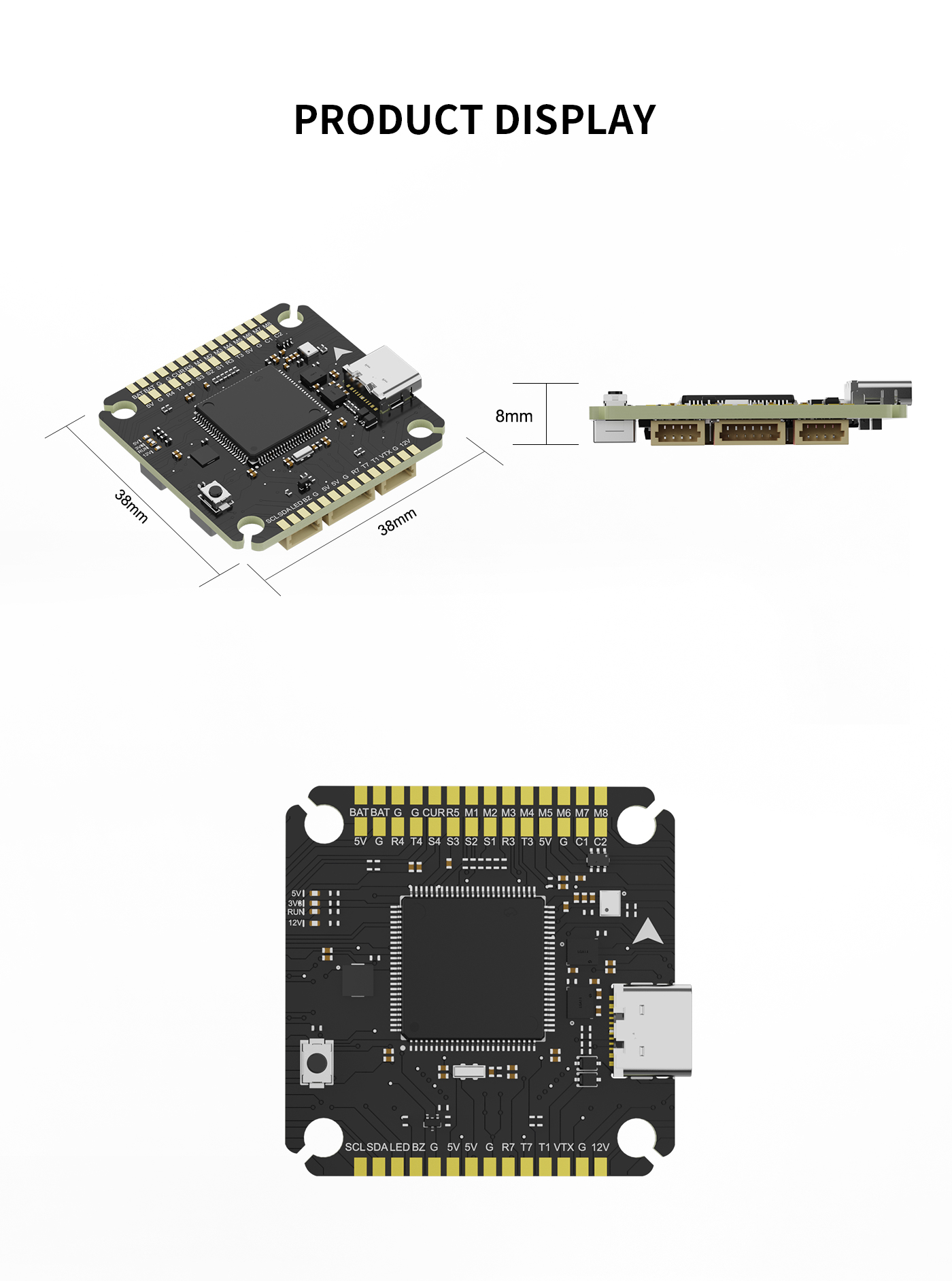

• Size: 38×38×8mm
• Weight: 9g

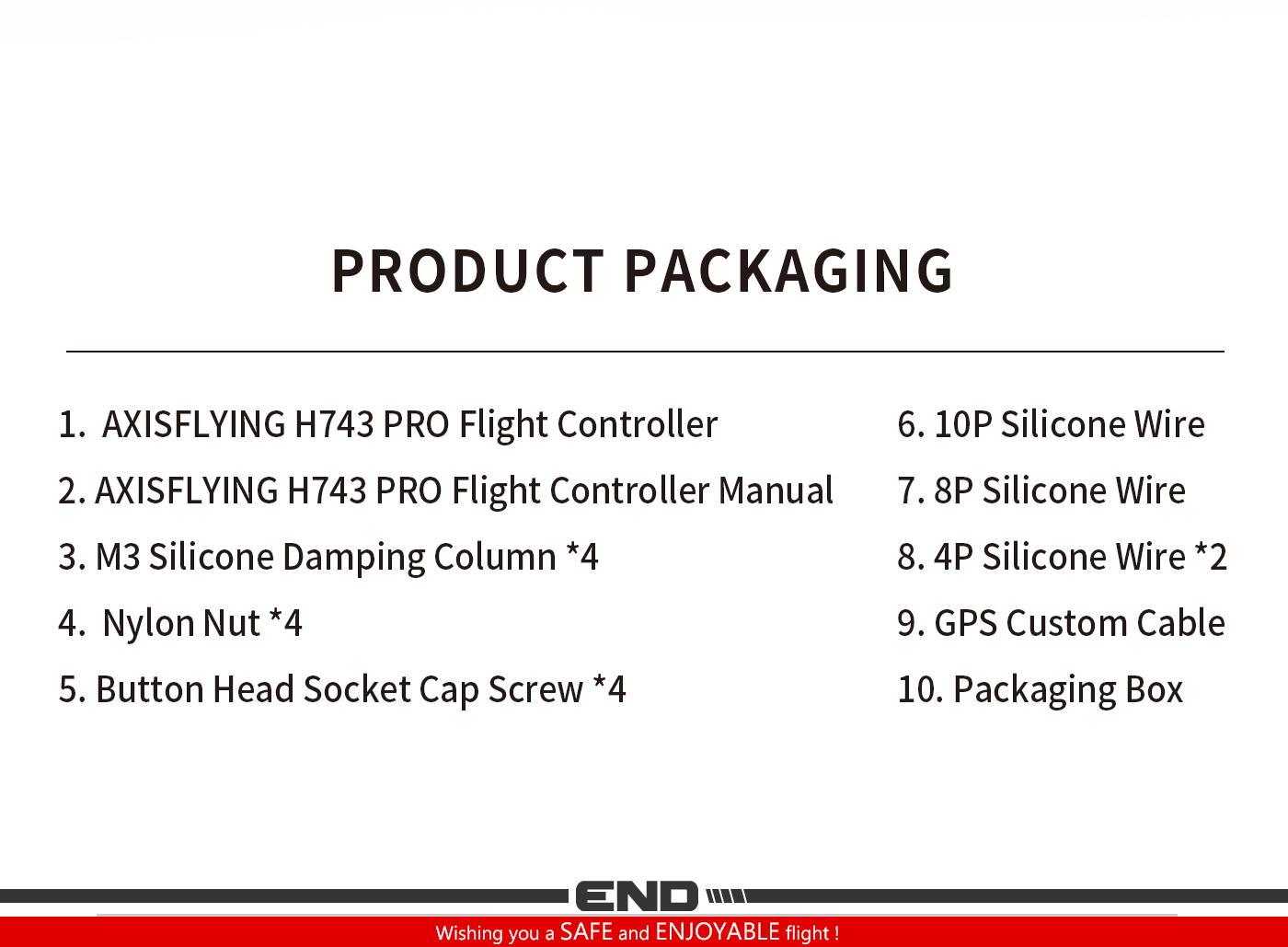

Package Contents

1. AXISFLYING H743 PRO Flight Controller ×1
2. User Manual ×1
3. M3 Silicone Damping Column ×4
4. Nylon Nut ×4
5. Button Head Socket Cap Screw ×4
6. 10P Silicone Wire ×1
7. 8P Silicone Wire ×1
8. 4P Silicone Wire ×2
9. GPS Custom Cable ×1
10. Packaging Box ×1
