Foreword

Feature

• Official collaboration: Axisflying × SyncFPV × Supafly
• Specially tuned for 5-inch freestyle & bando flight

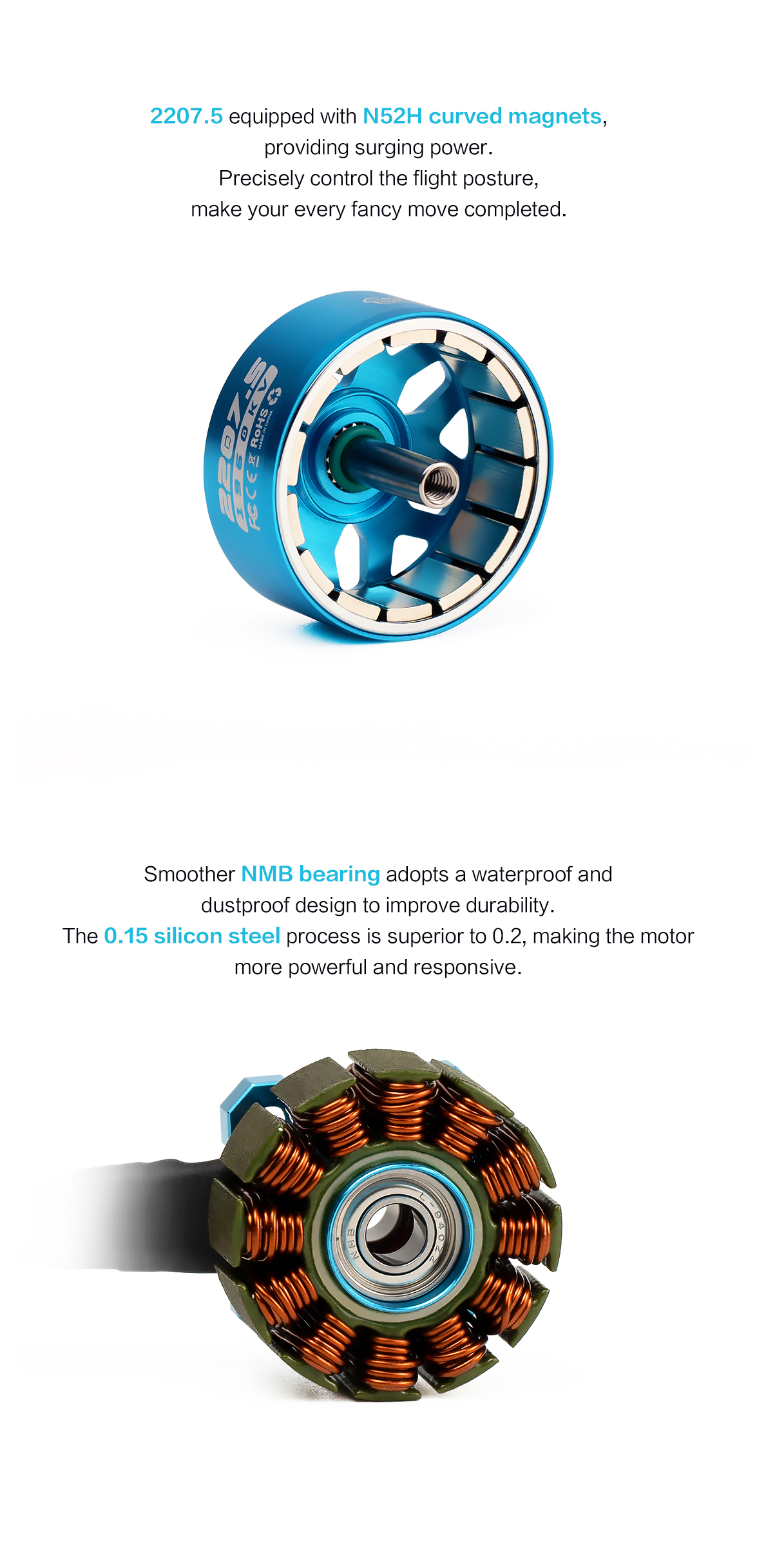

• 12N14P structure with high-performance arc magnets
• Strong low-end torque & instant throttle response
• High-temperature enameled wire & imported NMB bearings

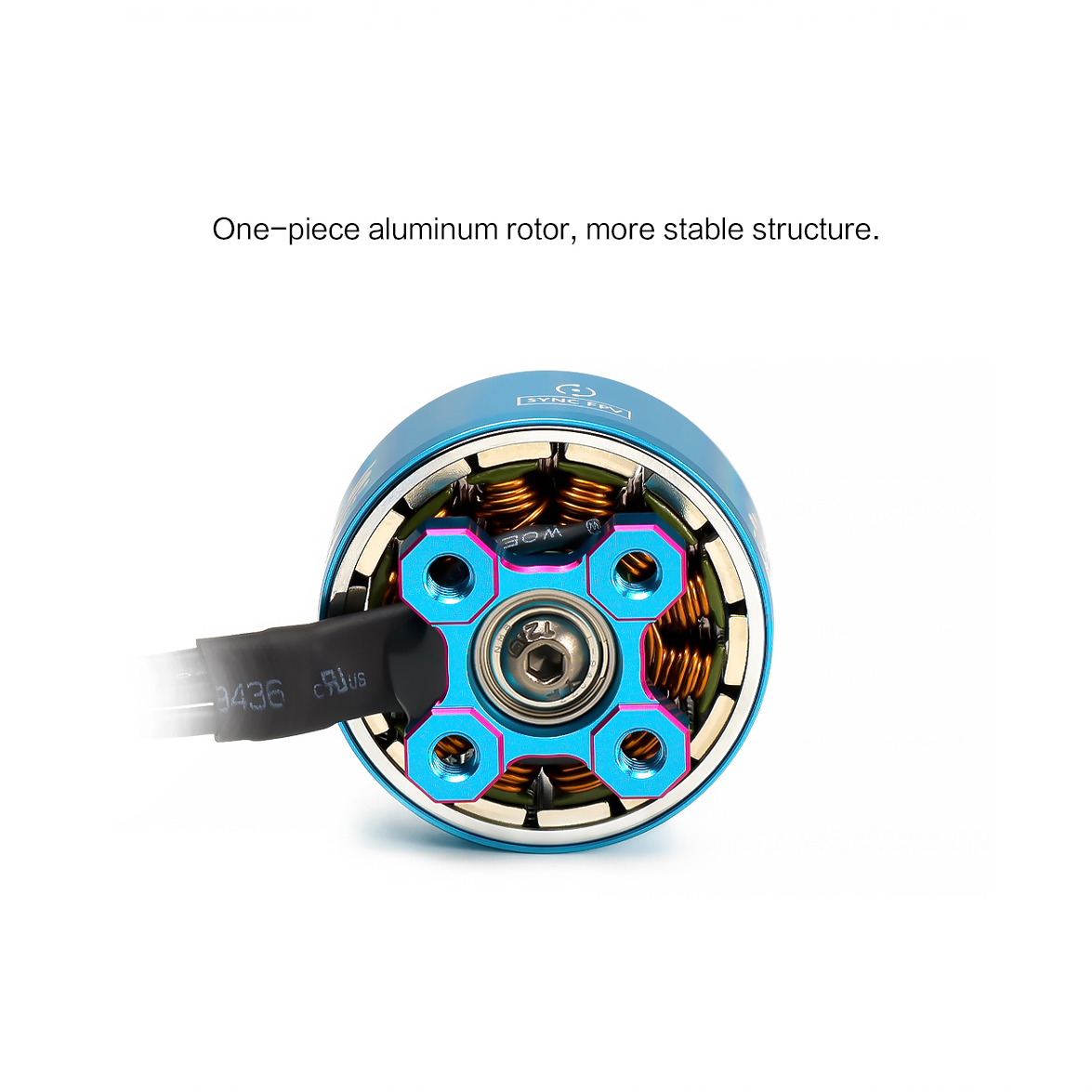

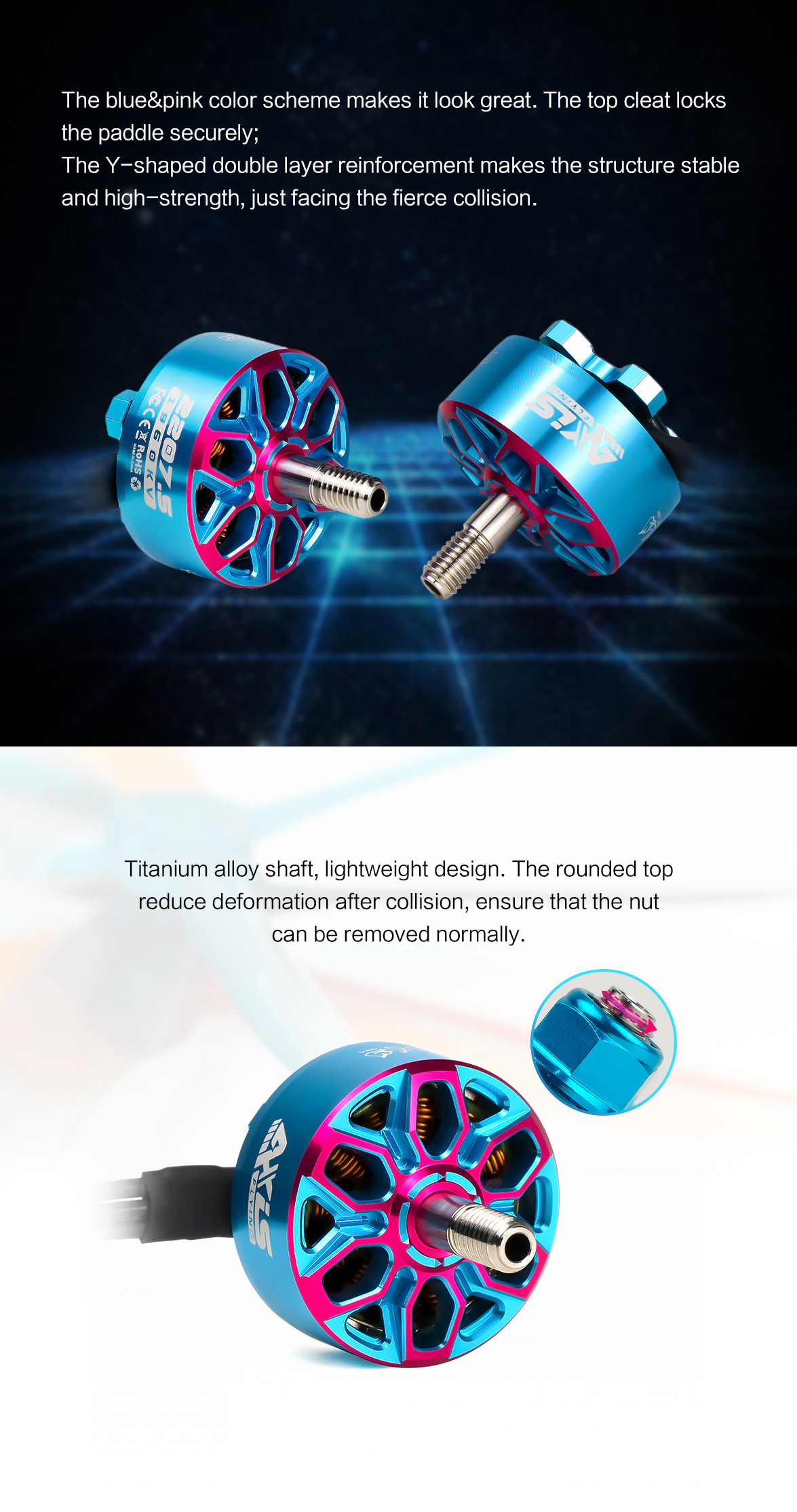

• One-piece bell for better crash resistance
• Lightweight & well-balanced for long-time aggressive flying
• Perfect match with BB4943.5 propellers

Recommended Configuration

• Motor: Axisflying 2207.5 Collaboration (1860KV / 1960KV)
• Voltage: 6S LiPo
• Props: BB4943.5
• Application: 5-inch freestyle, bando, hardcore acro

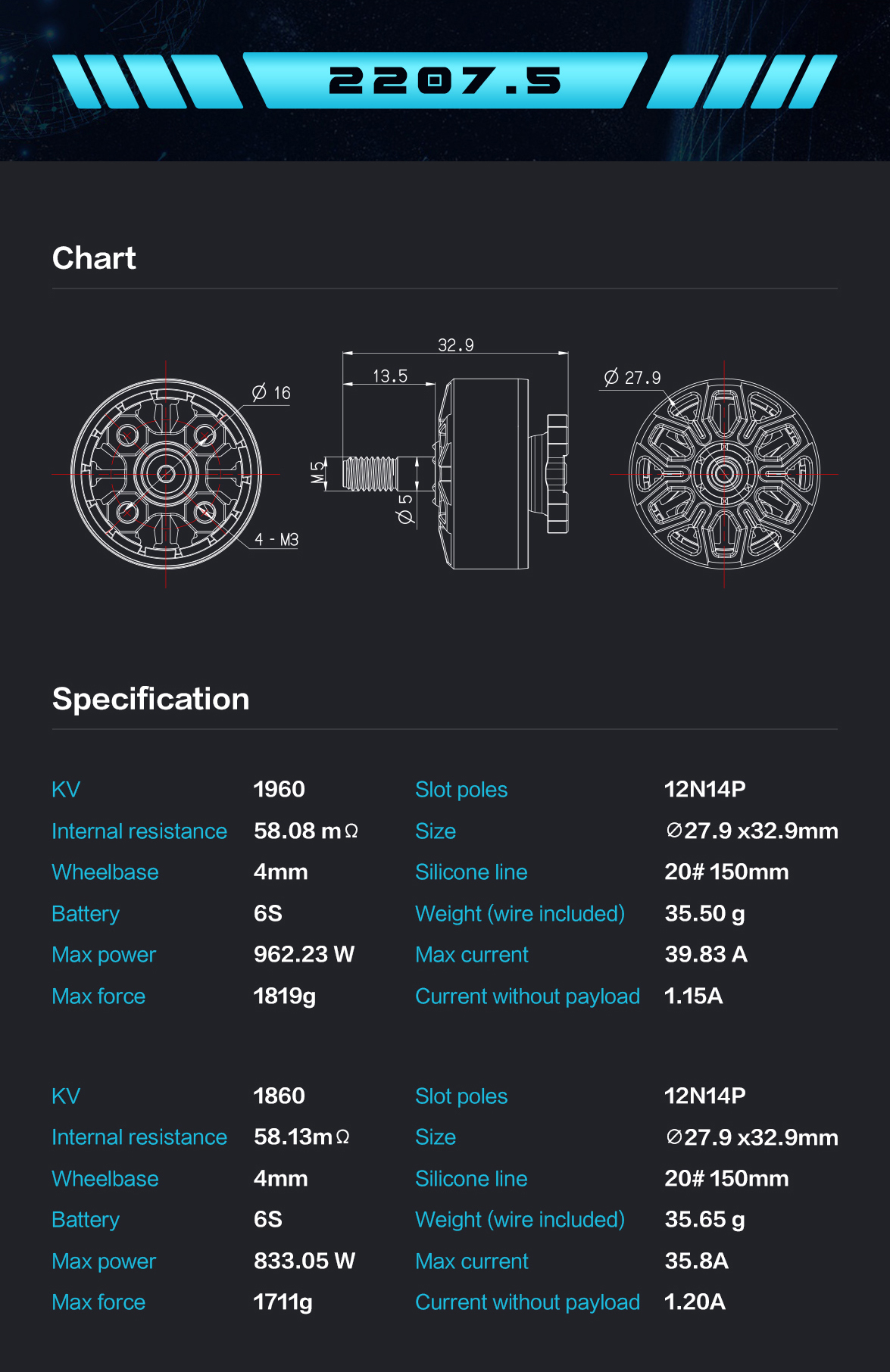

Specifications

1960KV (Collaboration Edition)

• KV: 1960KV
• Configuration: 12N14P
• Internal Resistance: 58.08mΩ
• Size: Φ27.9×32.9mm
• Shaft Diameter: 4mm
• Silicone Wire: 20# 150mm
• Rated Voltage: 6S
• Weight (excl. cable): 35.50g
• Max Power: 962.23W
• Peak Current: 39.83A
• Max Thrust: 1819g
• Idle Current: 1.15A
• Mount: 4-M3

1860KV (Collaboration Edition)

• KV: 1860KV
• Configuration: 12N14P
• Internal Resistance: 58.13mΩ
• Size: Φ27.9×32.9mm
• Shaft Diameter: 4mm
• Silicone Wire: 20# 150mm
• Rated Voltage: 6S
• Weight (excl. cable): 35.65g
• Max Power: 833.05W
• Peak Current: 35.8A
• Max Thrust: 1711g
• Idle Current: 1.20A
• Mount: 4-M3

Package Contents

1. 2207.5 Collaboration Motor ×1
2. M3×8mm mounting screws ×5
3. M3×4mm shaft lock screw ×1
4. M5 lock nut ×1
5. Damping ring ×1
6. Gasket ×1

US Tariff Information

• Tariff: 30% + Section 301 additional duty (as of May 2026)
• Type 86 ($800 duty-free) is terminated; all commercial shipments dutiable
