*Forword

Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Axisflying combines CNC aluminum parts with high quality carbon plates to bring the MANTA series of freestyle frame with a unique and innovative design in the industry.

*Feature

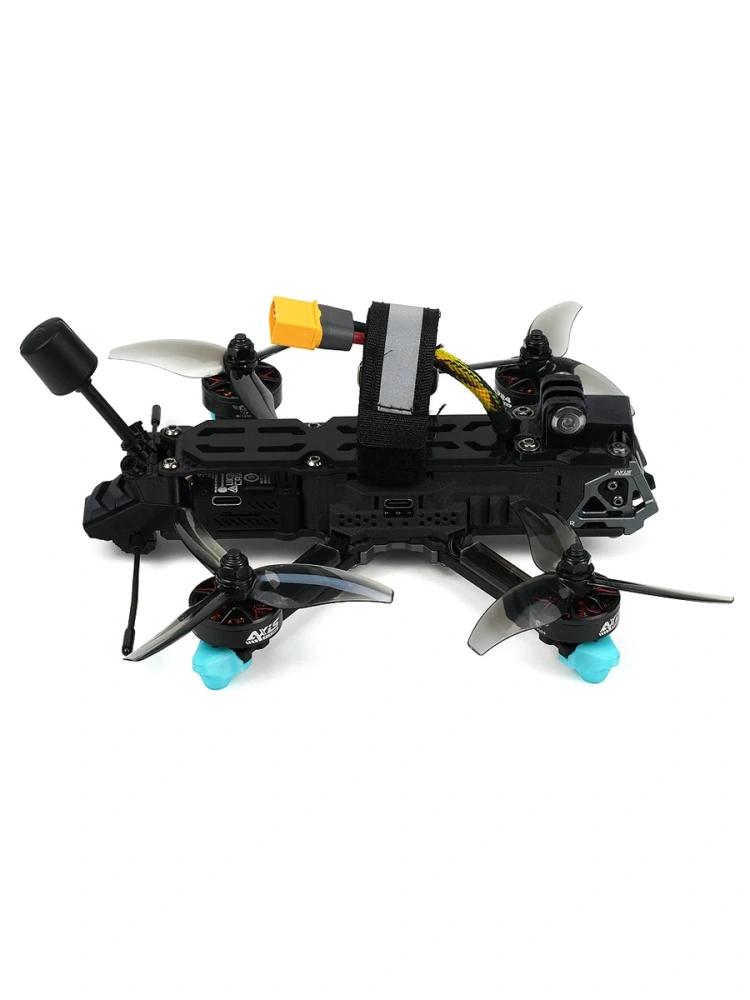

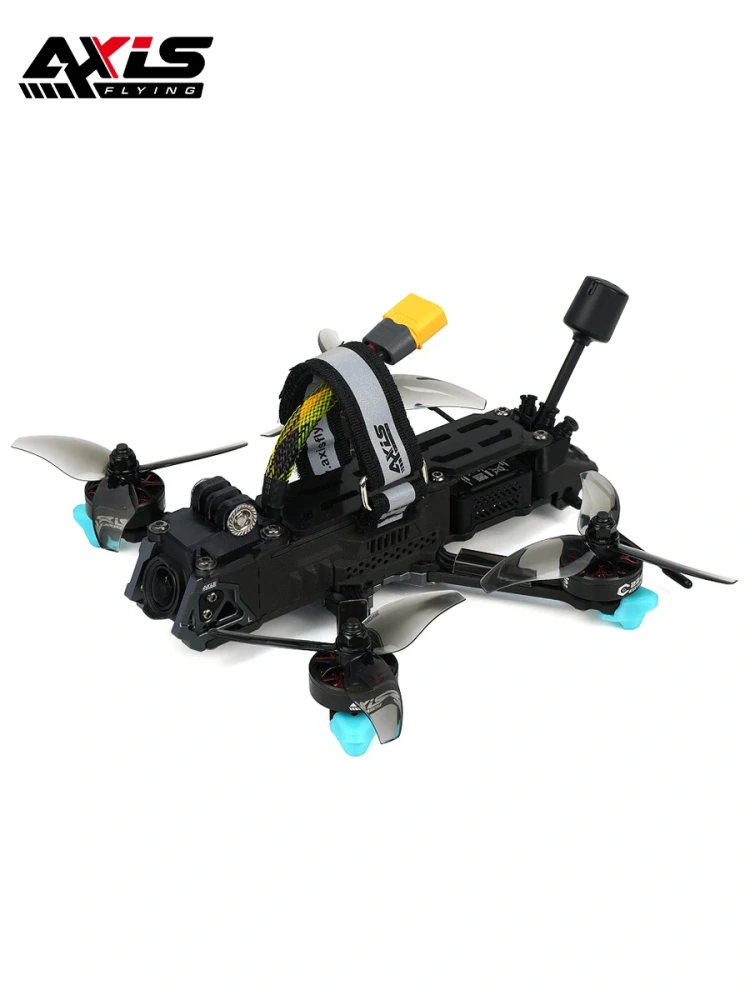

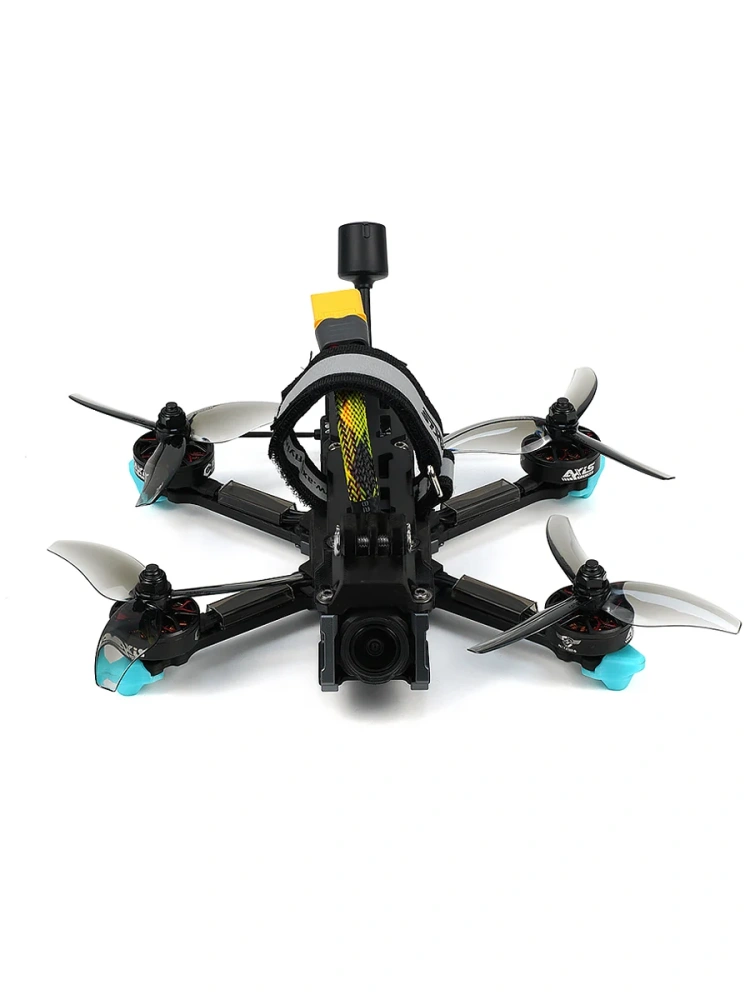

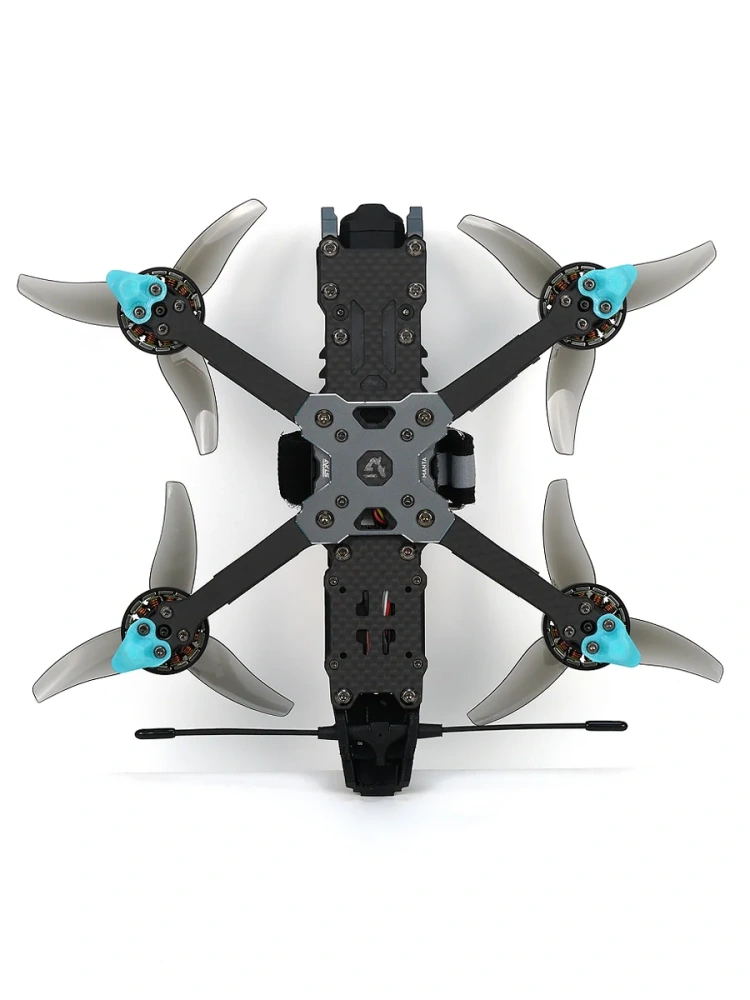

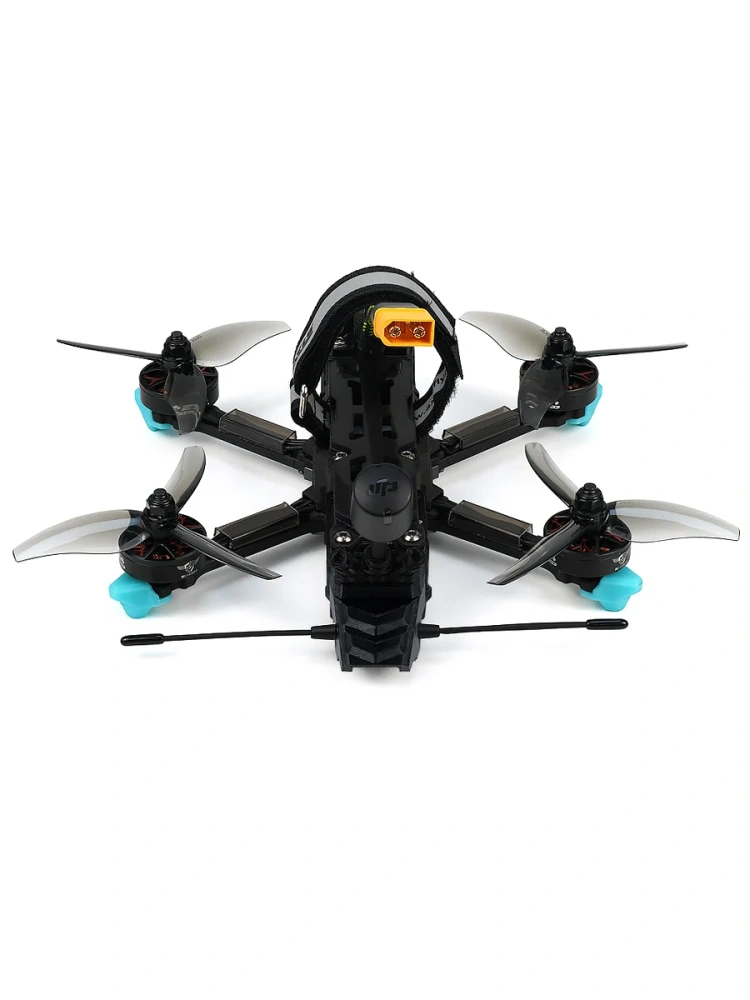

- MANTA 3.6 frame is specially designed for 3.6-inch Freestyle and Cinematic, launched in Squashed X.

- Squashed X design for a flexible flight experience, props are not visible from the FPV camera, more suitable for freestyle with high                            maneuverability.

- The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable    and safe.

- Manta3.6 will be equipped with a dedicated Flystack - an Argus mini FC and ESC independently developed and produced by Axisflying, using BZ121      compass and MPU6000 gyroscope.

- The propellers of Manta3.6 are also customized, available in green and gray.

- It is also compatible with VTX and cameras such as DJI O3, Analog, Link, Walksnail, etc. Free to change and match.

- High performance is the core advantage of Manta3.6. It only takes 0.3 seconds to accelerate from 0-100kph under no-load condition, and the flight    time is more than 8 minutes. In the state of mounting GoPro10, the top speed can still reach 180kph.

- Nylon-sintered side plates are installed on both sides of the FPV to protect the core electronic devices while ensuring that heat dissipation is not        affected.

- The power cable can protrude from the front and rear of the FPV, which is convenient for the pilots to adjust the center of gravity of the drone by      themselves.

- Supportting dual antennas.

Recommended configuration

Motor: Axisflying C206 2750KV

Batery: 1100mAh 6S

Fly stack: Axisflying Argus Mini35A+F7

Props: Geman 3630

Specifications

Name: Manta 3.6" Lite

 Arm thickness: 4mm

Srtucture:Suqeshed X
Lens space:14-20mm

Wheelbase: 162mm
Stack mounting: 20mm(M2) &30.5mm(M3)

Bottom plate thick:3mm
VTX mounting: 20mm&25.5mm(M2)

Top plate thick: 2mm
Prop size: Max 3.6 inch

Carbon material: T700
Motor mounting:12*12mm(M2)

Bottom to top distance:20mm
Weight: 108±5
