Foreword
Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Axisflying combines CNC aluminum parts with high quality carbon plates to bring the MANTA series of freestyle frame with a unique and innovative design in the industry.
Feature

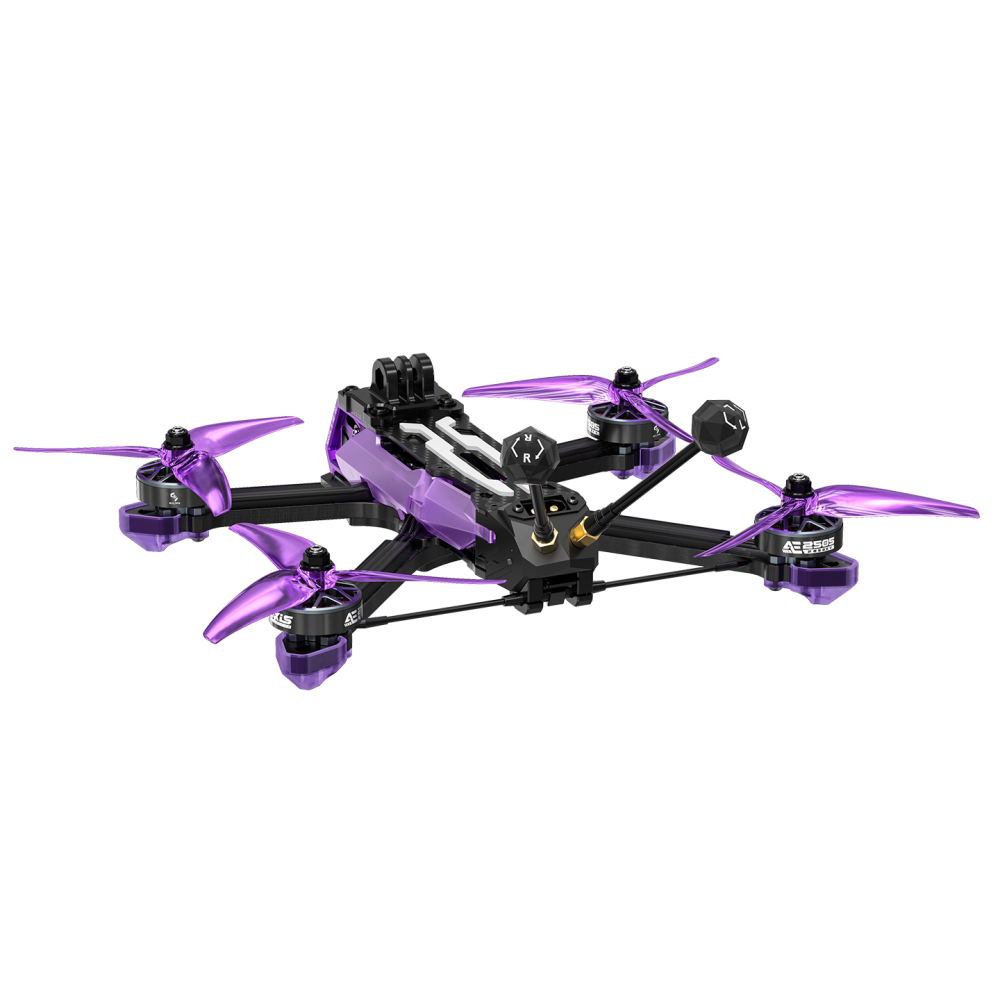

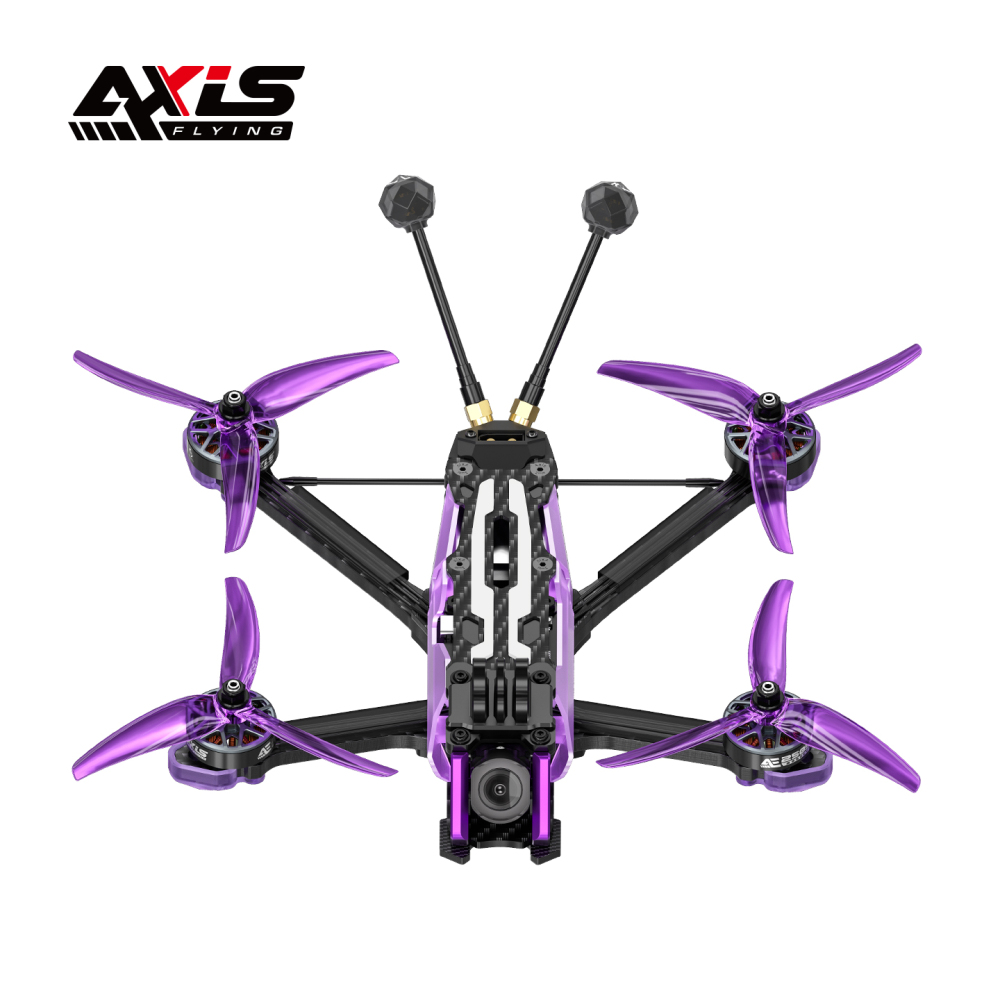

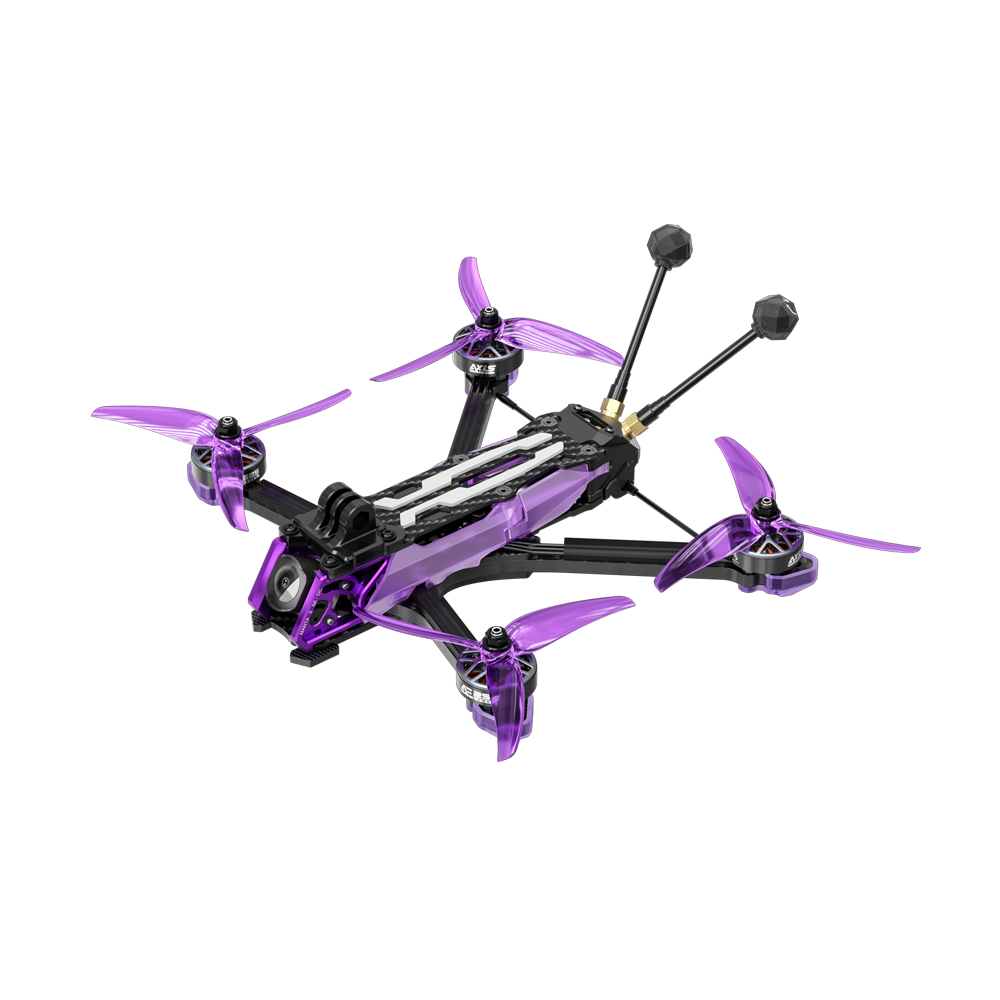

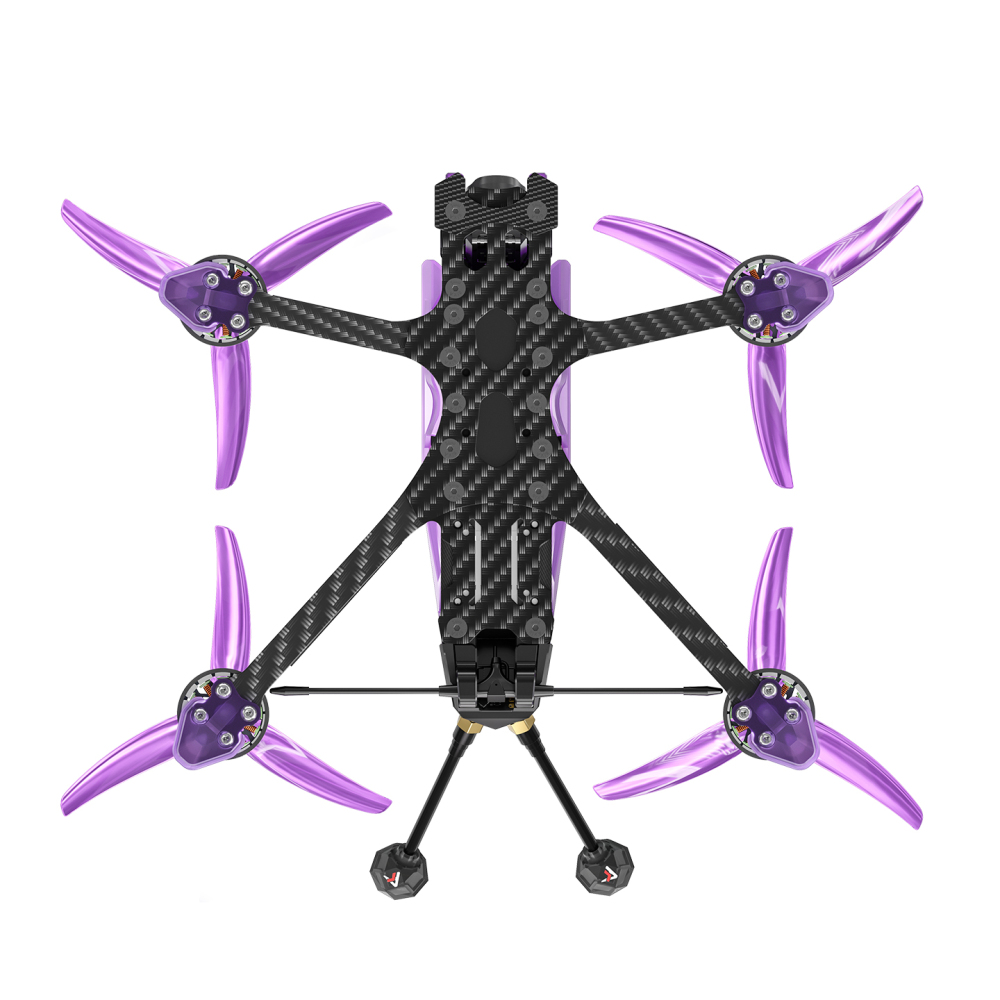

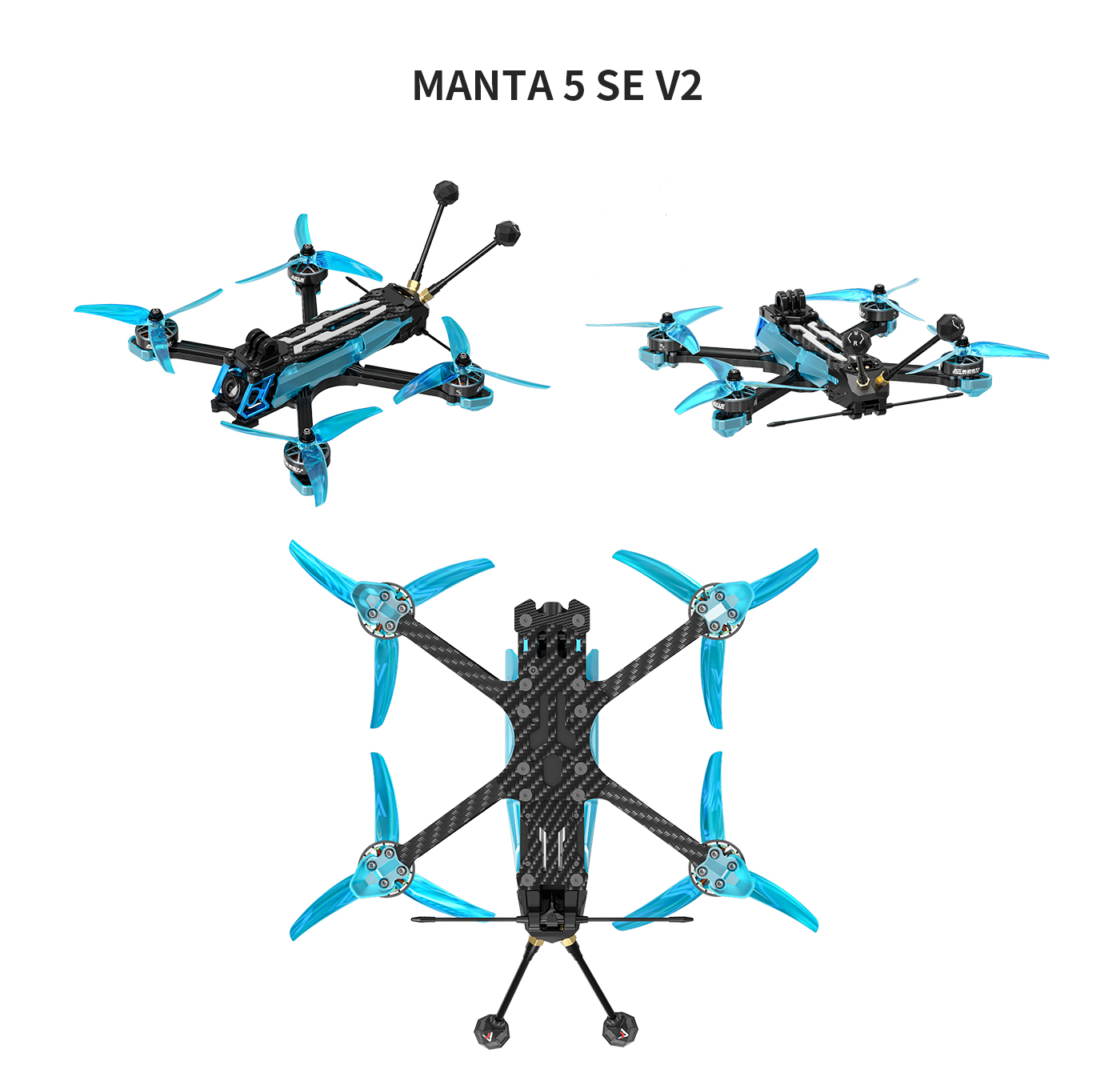

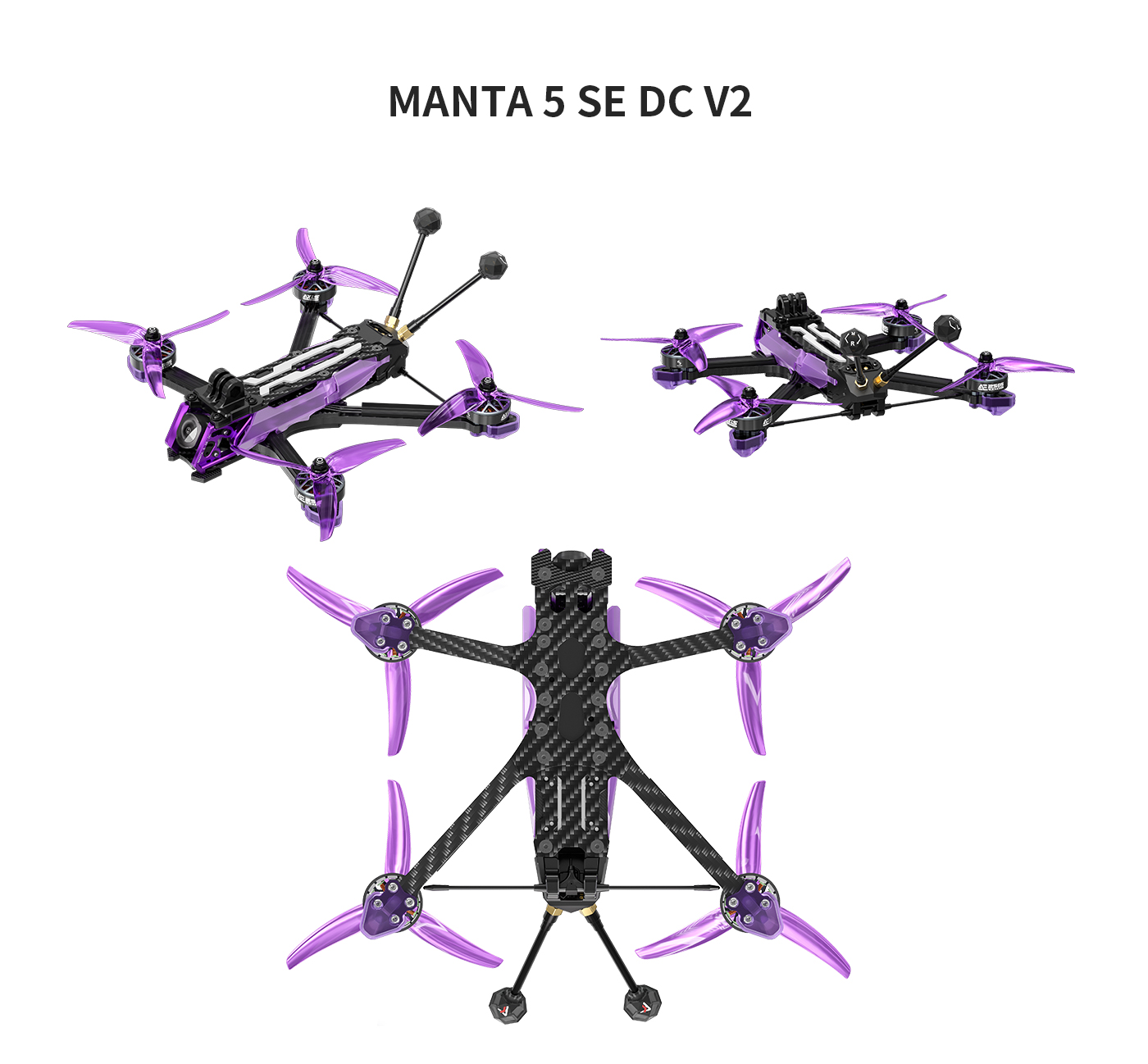

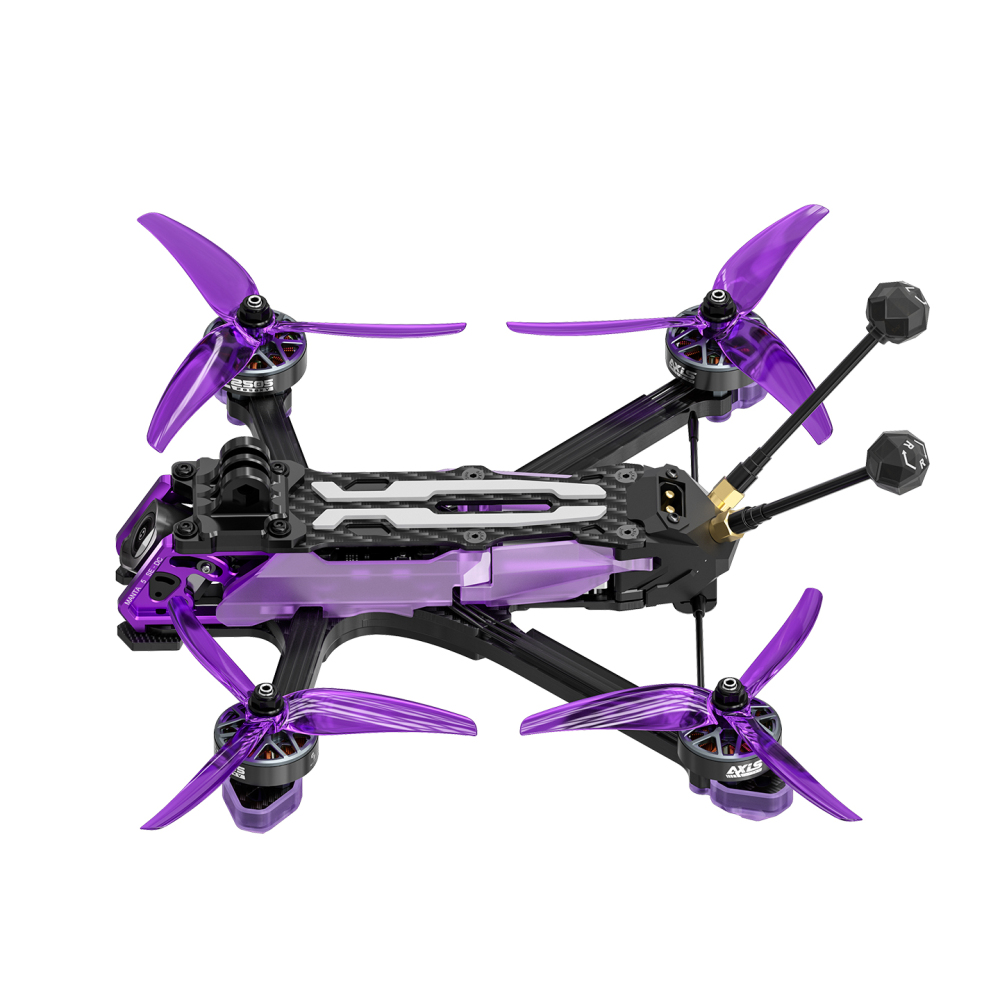

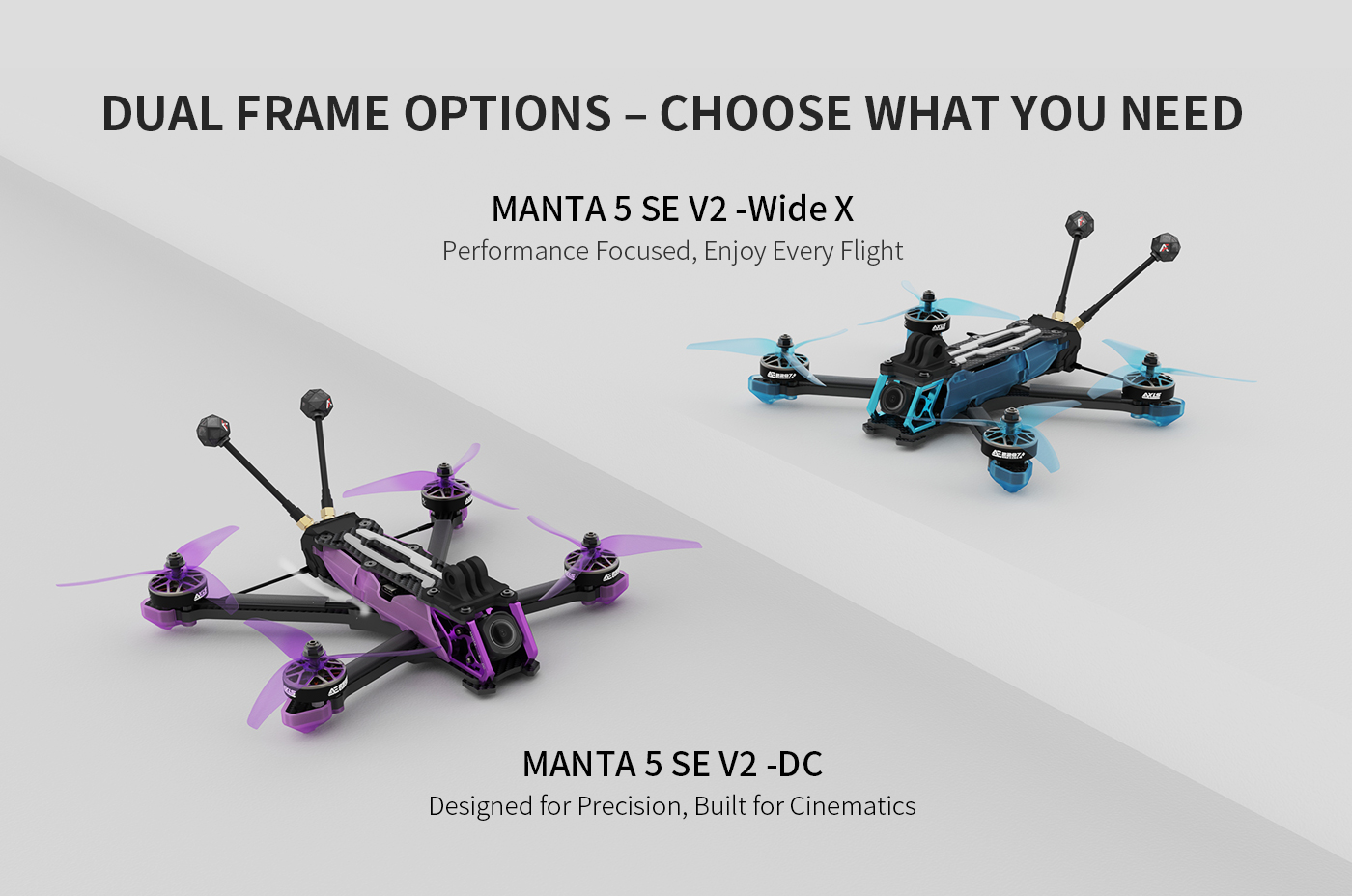

- MANTA 5" SE V2 frame is specially designed for 5-inch Freestyle and Cinematic, available in Squashed X / DC versions.
- Adopts premium carbon fiber plate and injection‑molded protective parts for stronger structure, better durability and cleaner flight look.

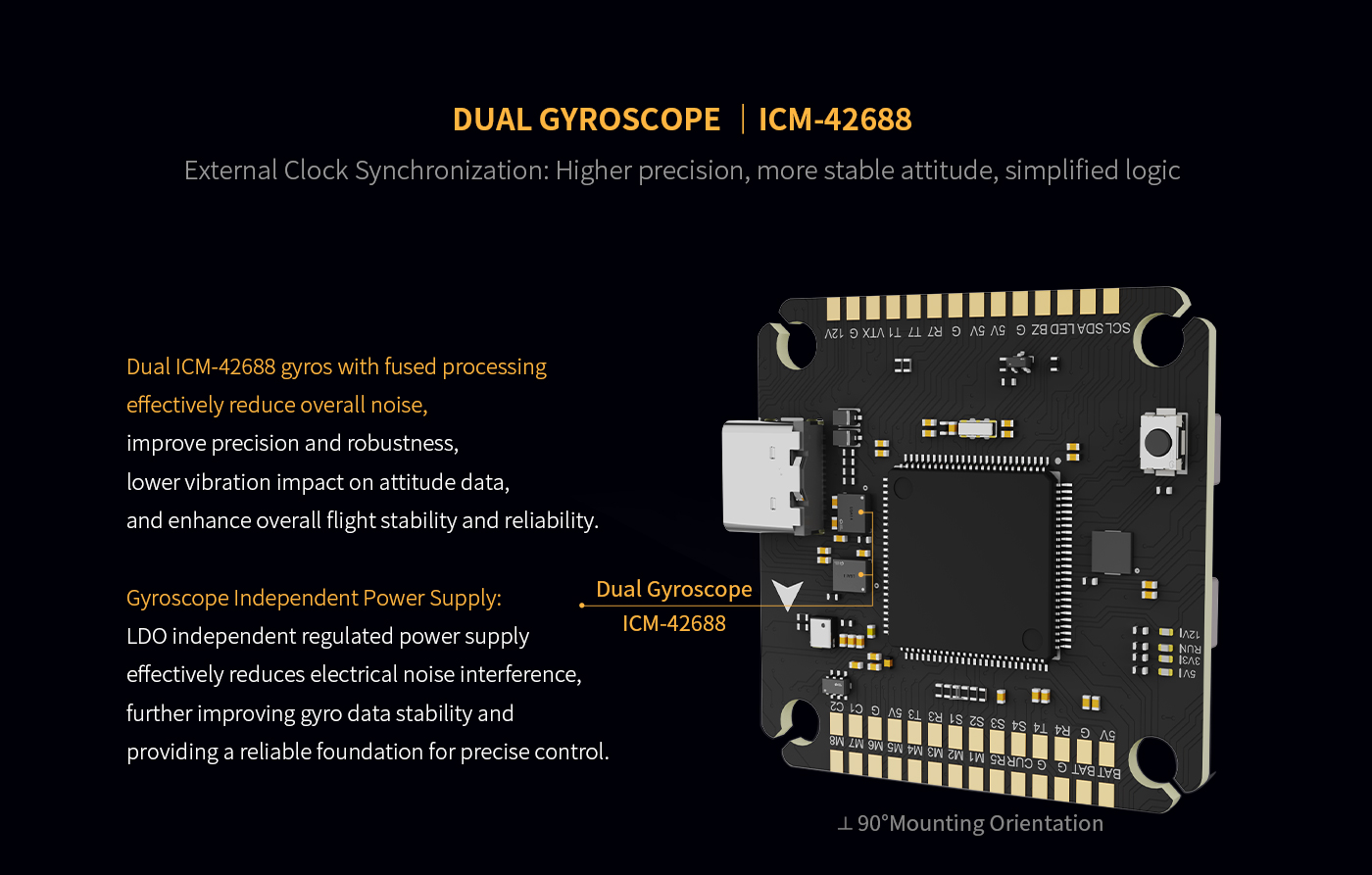

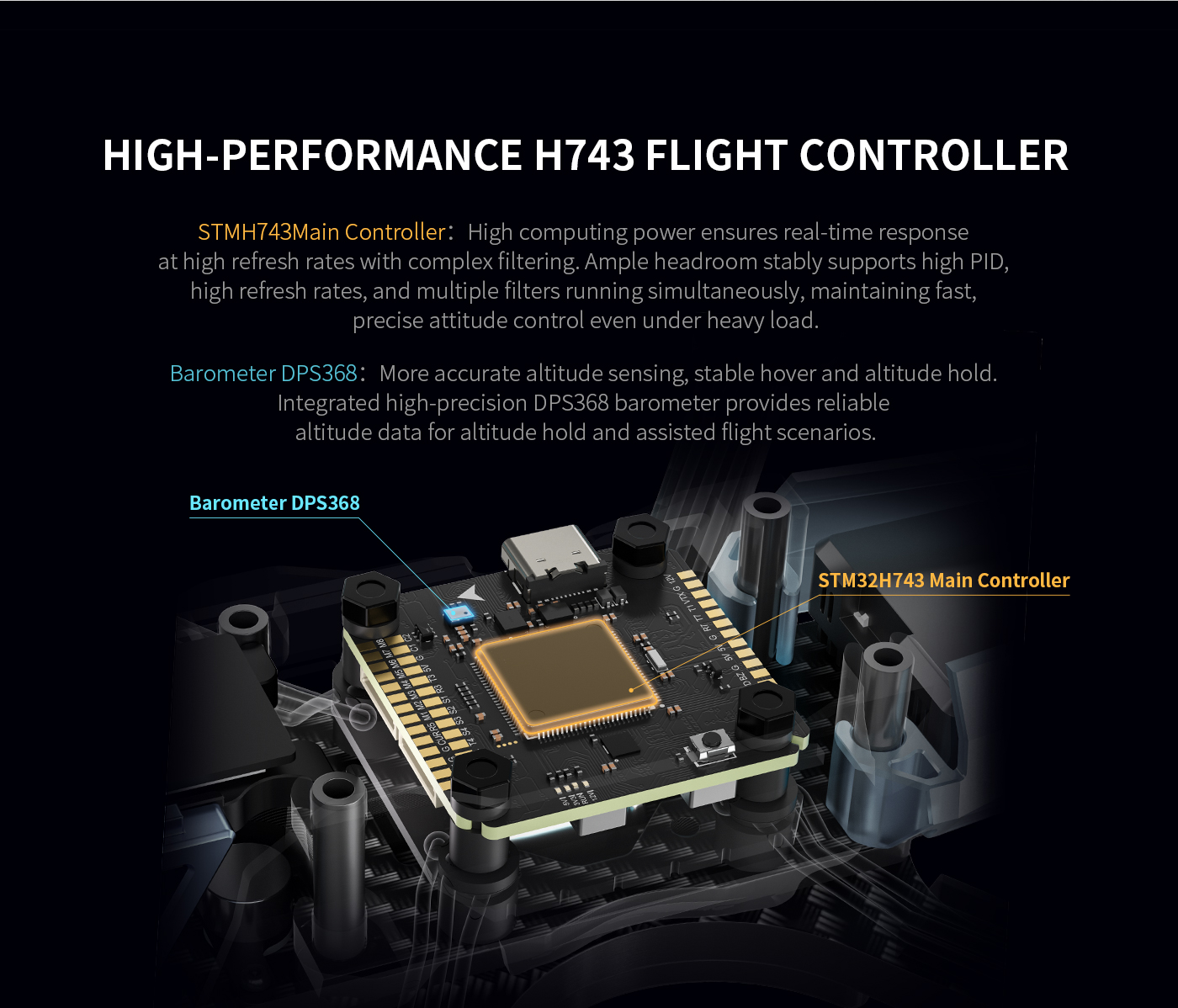

- Equipped with high‑performance H743 flight controller and dual ICM‑42688P gyros for ultra‑stable flight attitude and precise control.

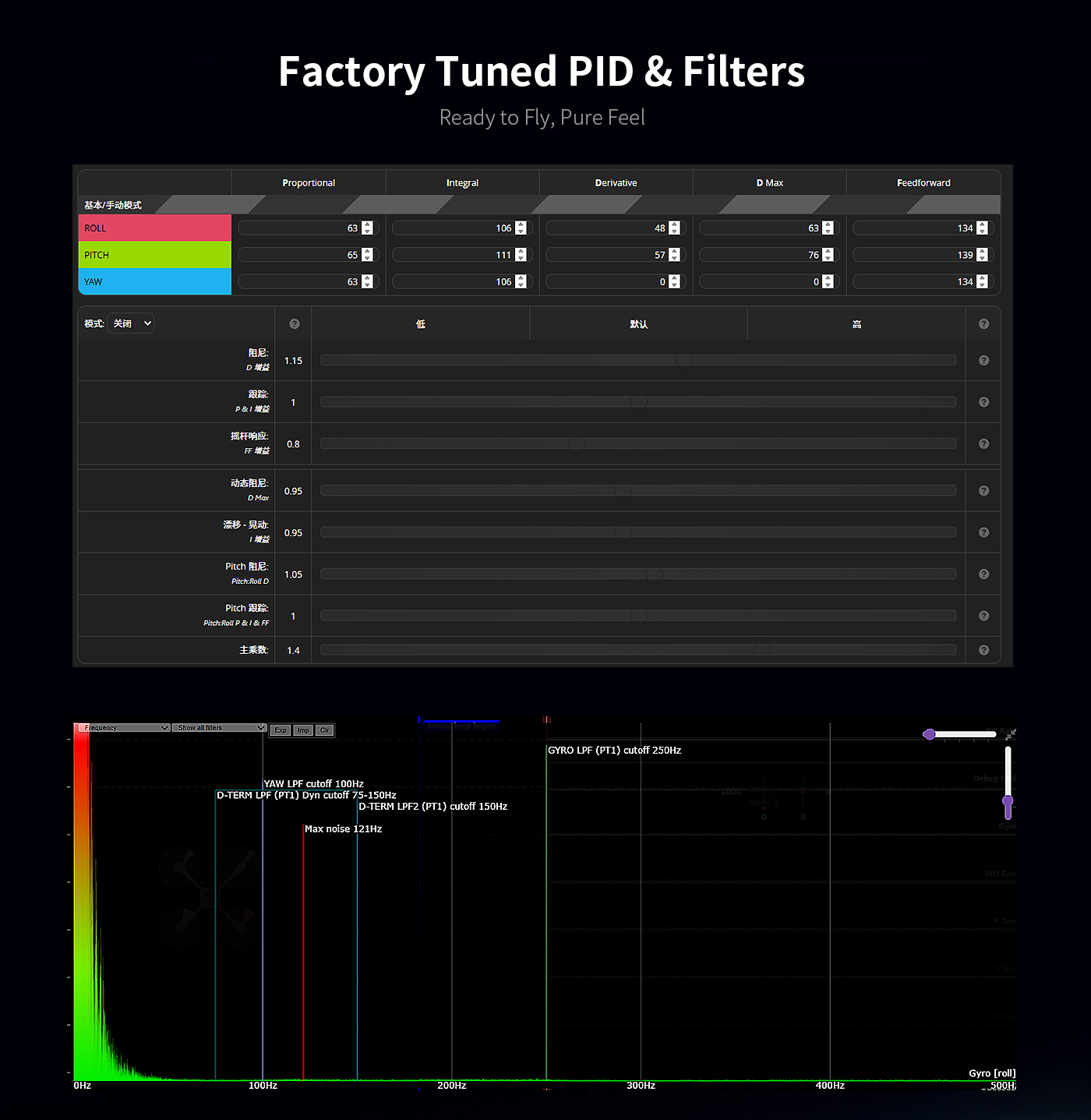

- Factory pre‑tuned PID & filters, ready to fly with pure smooth flight feeling.

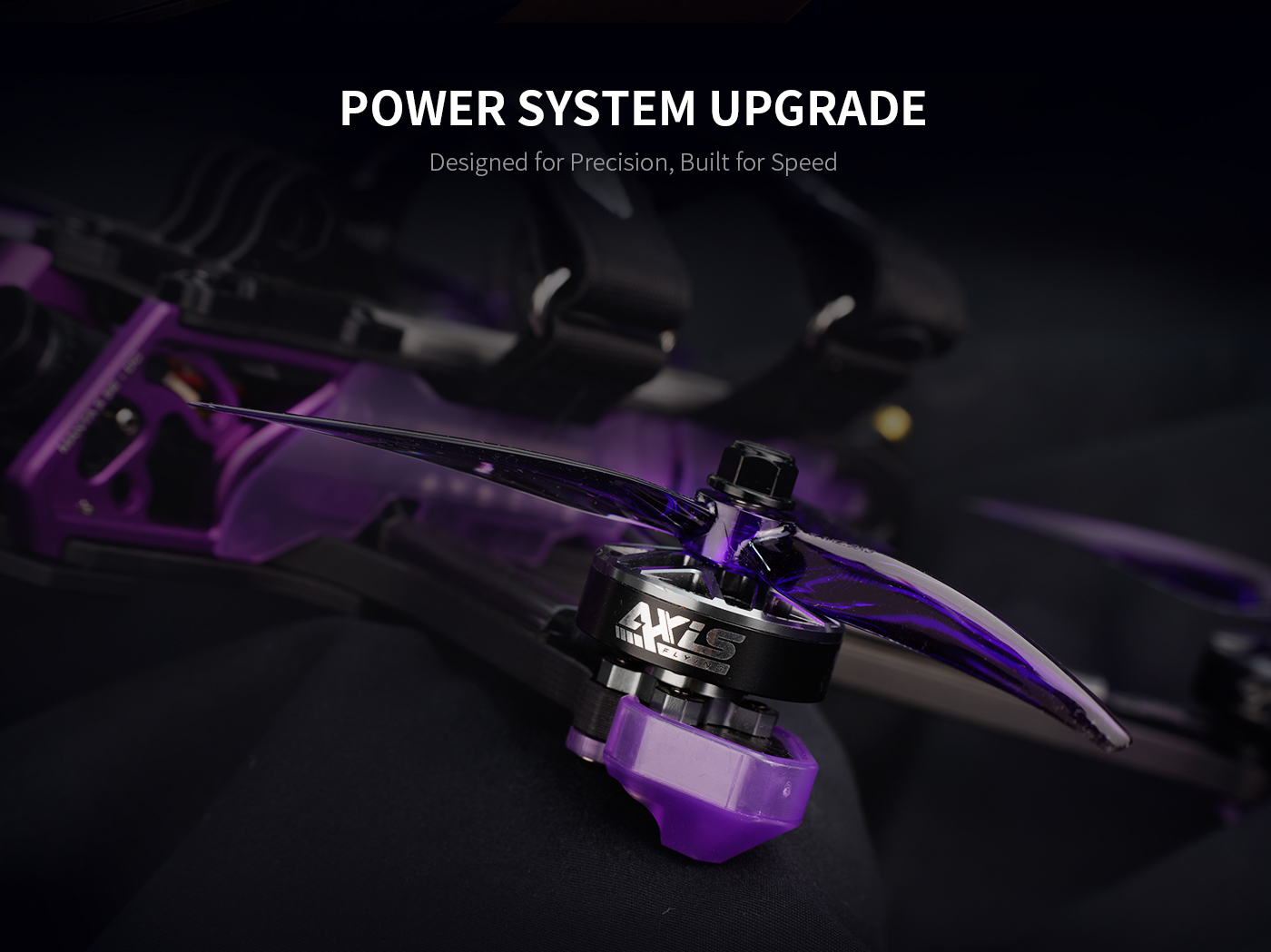

- Upgraded power system: 32‑bit ESC, high‑performance motors, strong and efficient.
- Fixed power lead design, more tidy and reliable; supports GPS position hold.
- Compatible with Analog VTX, DJI O4 Lite / O4 PRO HD system, free to match.

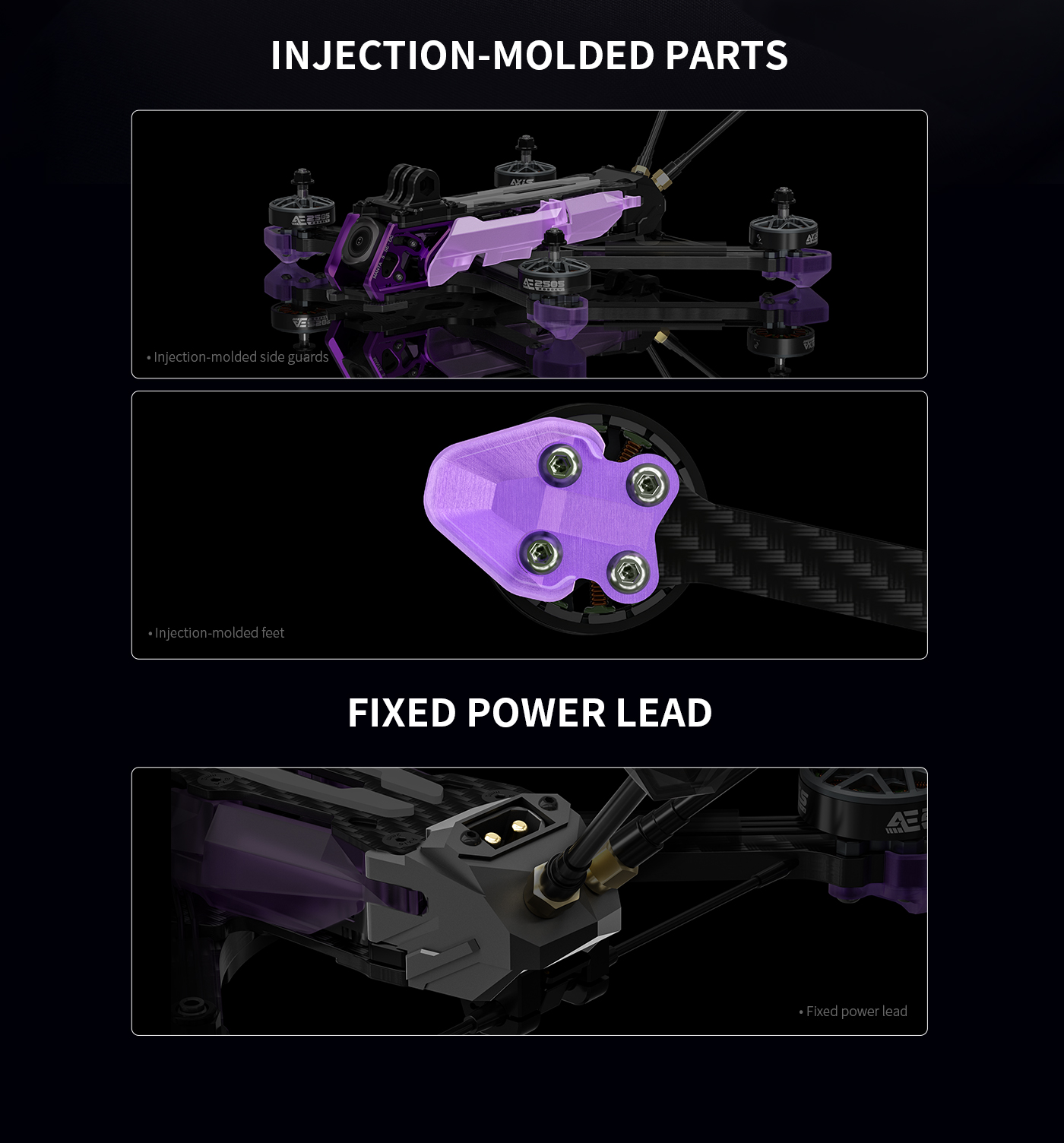

- Injection‑molded side guards and landing feet protect electronics and improve durability.
- Dual antenna supported, stable signal transmission for long‑range flight.

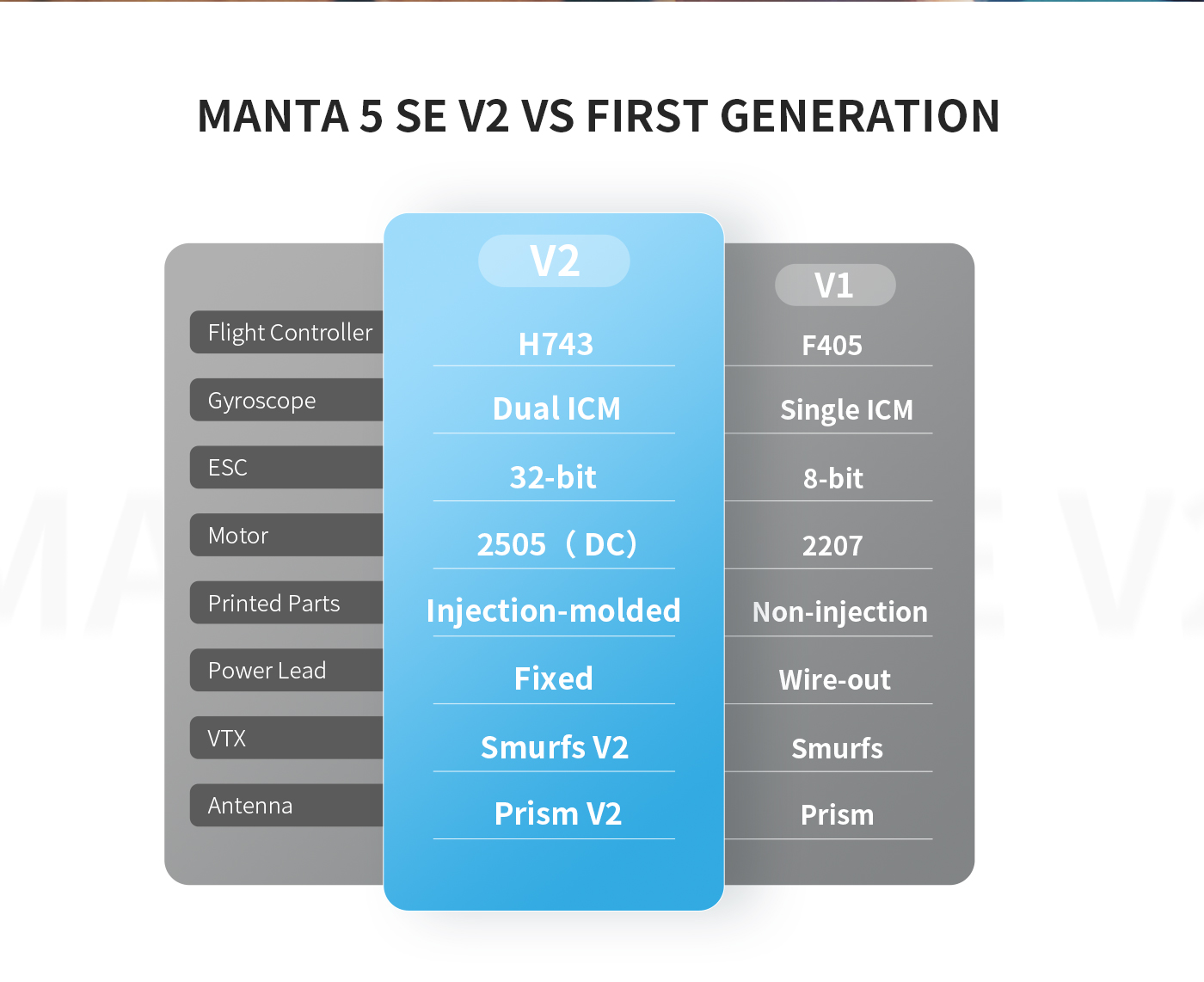

- Comprehensive upgrade from V1, stronger performance, better flying experience.
Recommended configuration
Motor: Axisflying AE2207 V2 1960KV (Squashed X) / AE2505 1750KV (DC)
Battery: 6S 1050–1550mAh LIHV/LiPo
Stack: Axisflying H743 PRO FC + Argus ECO 60A 32‑bit ESC
Props: BB39 / R29
VTX: Axisflying Smurfs V2 5.8G 1.6W / DJI O4 Lite / O4 PRO

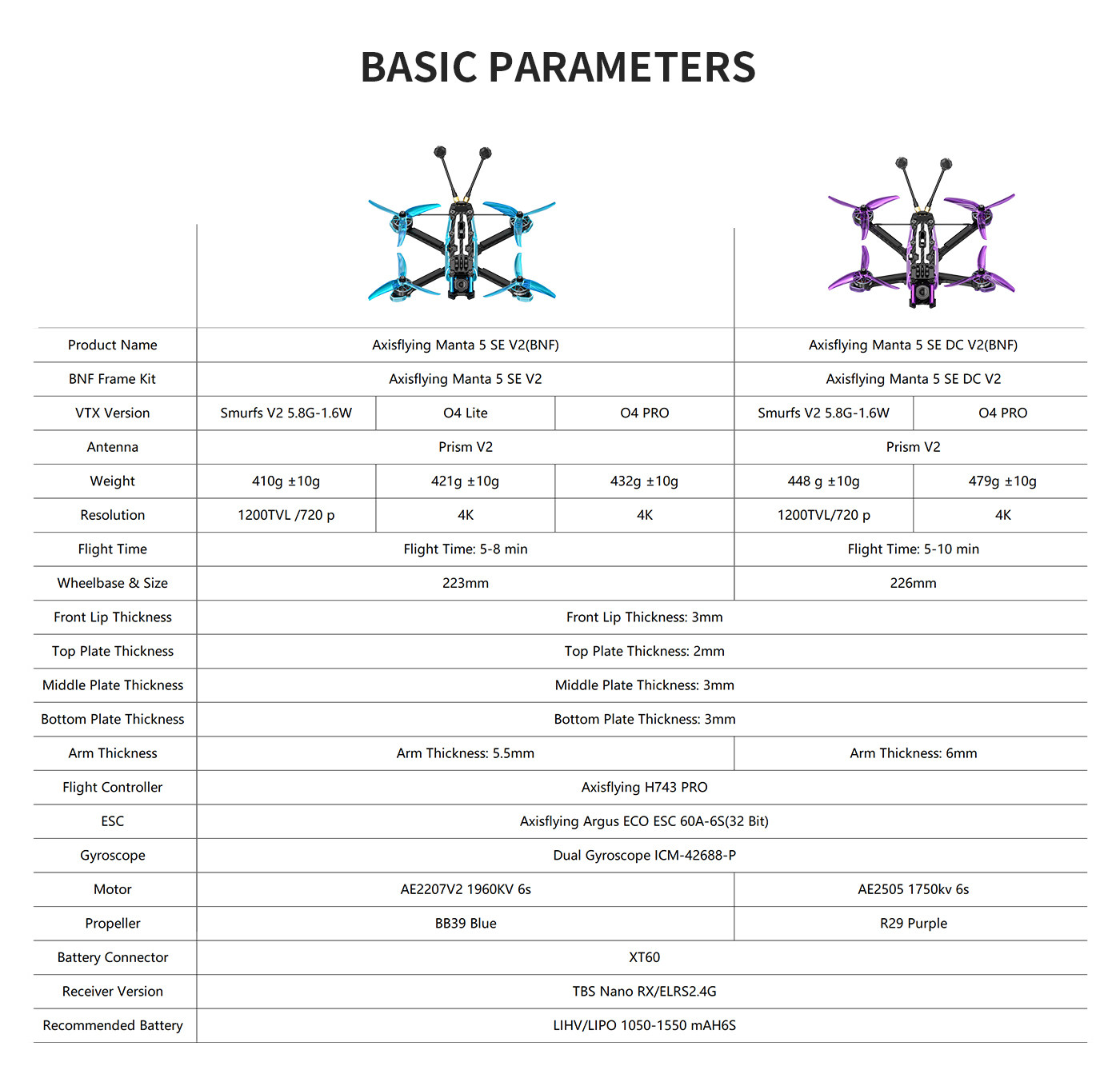

Specifications
Name: Manta 5" SE V2
Structure: Squashed X / DC
Wheelbase: 223mm / 226mm
Arm thickness: 5.5mm–6mm
Top plate thickness: 2mm
Middle plate thickness: 3mm
Bottom plate thickness: 3mm
Carbon material: High‑strength carbon fiber
Stack mounting: 30.5mm (M3)
VTX mounting: Compatible with 20mm / 25.5mm / 30.5mm
Lens space: Compatible with HD camera & 1200TVL analog camera
Motor mounting: Standard 5‑inch motor mount
Flight controller: H743 PRO
Gyro: Dual ICM‑42688P
ESC: Argus ECO 60A 6S 32‑bit
Input voltage: 4–8S
Weight: 410g±10g – 479g±10g (depending on configuration)
Flight time: 5–10 minutes
Battery connector: XT60
