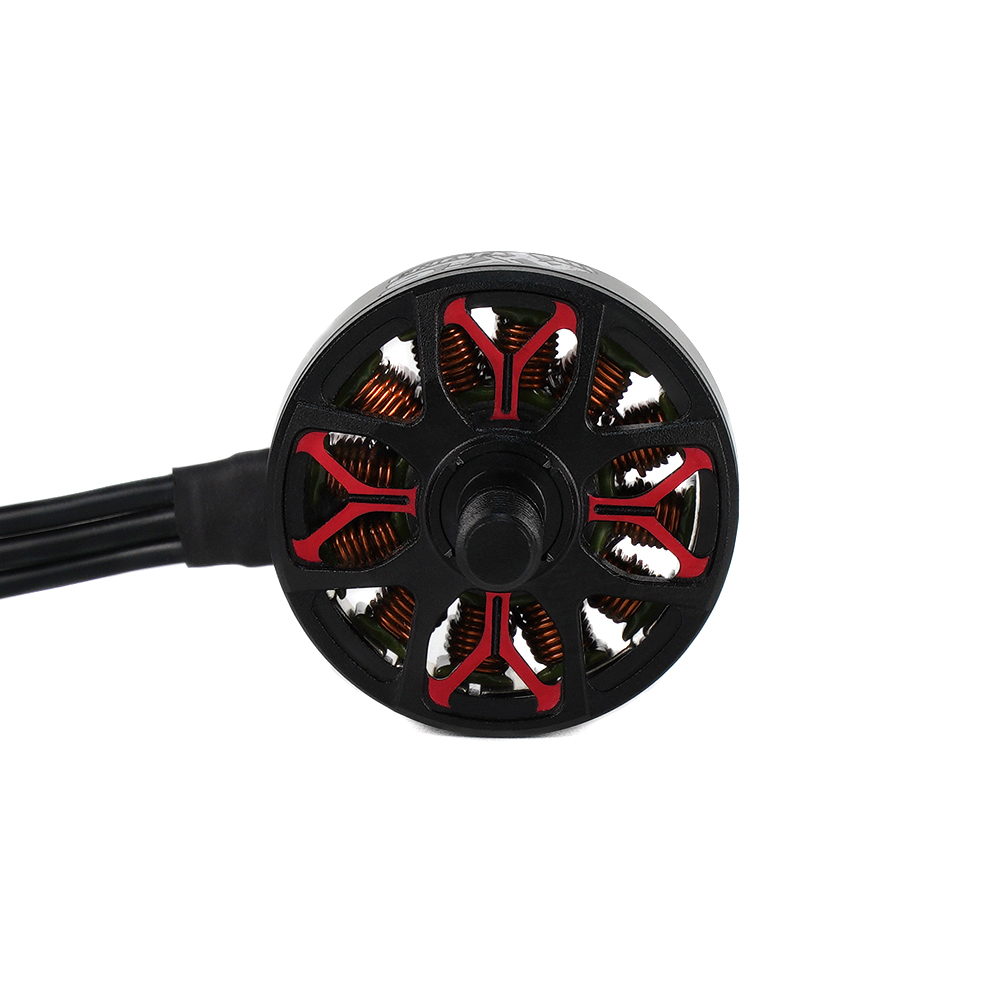

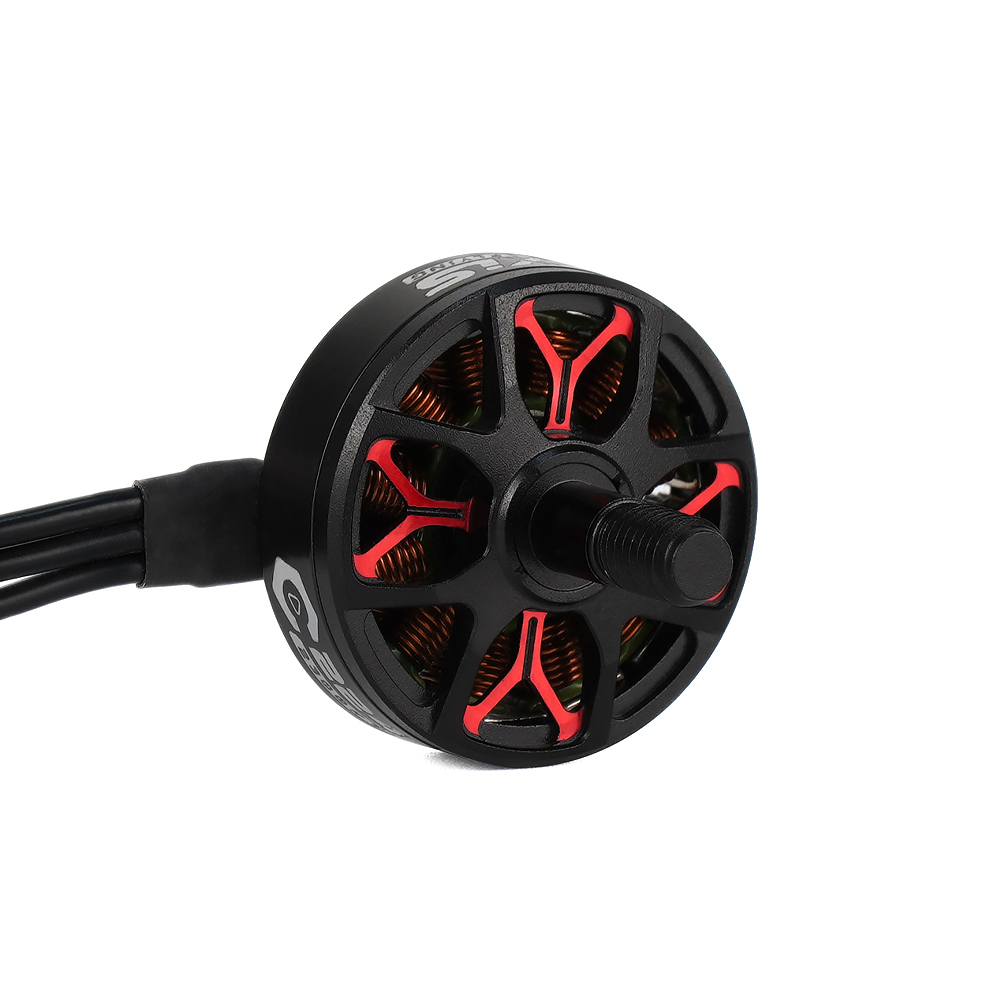

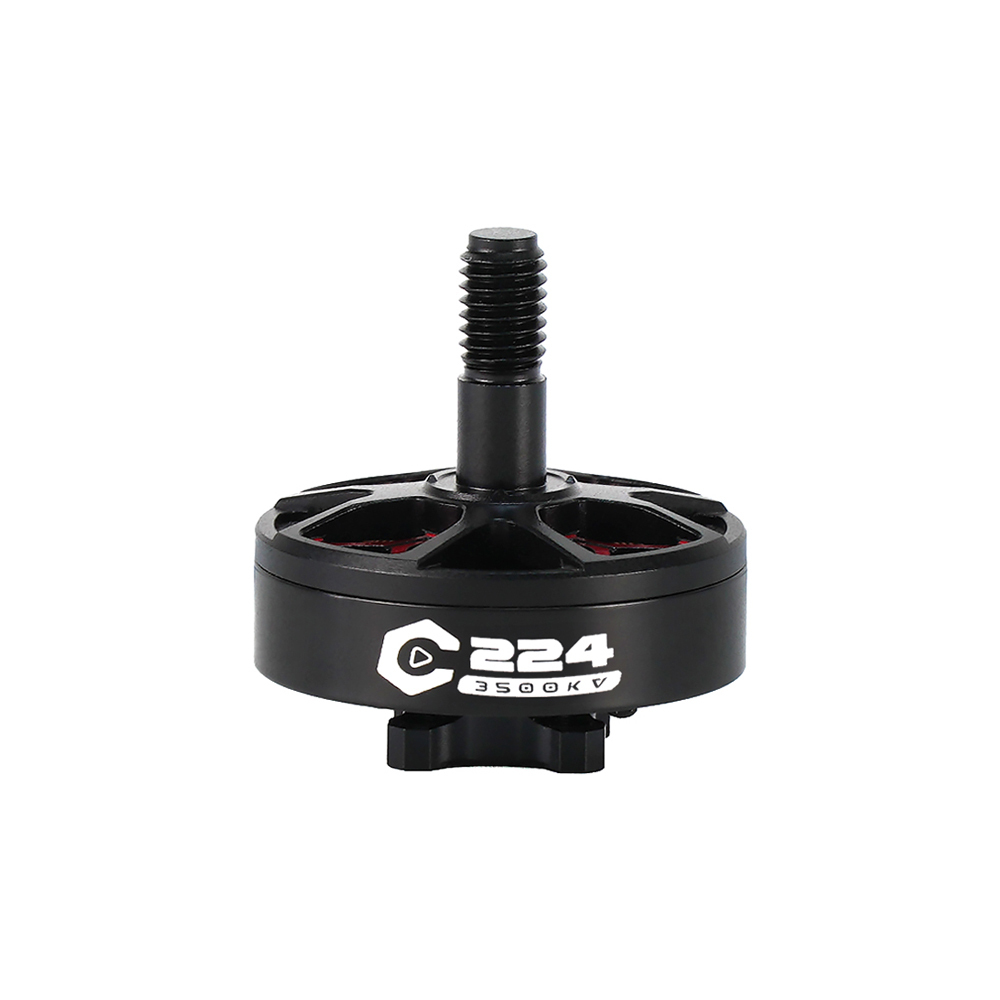

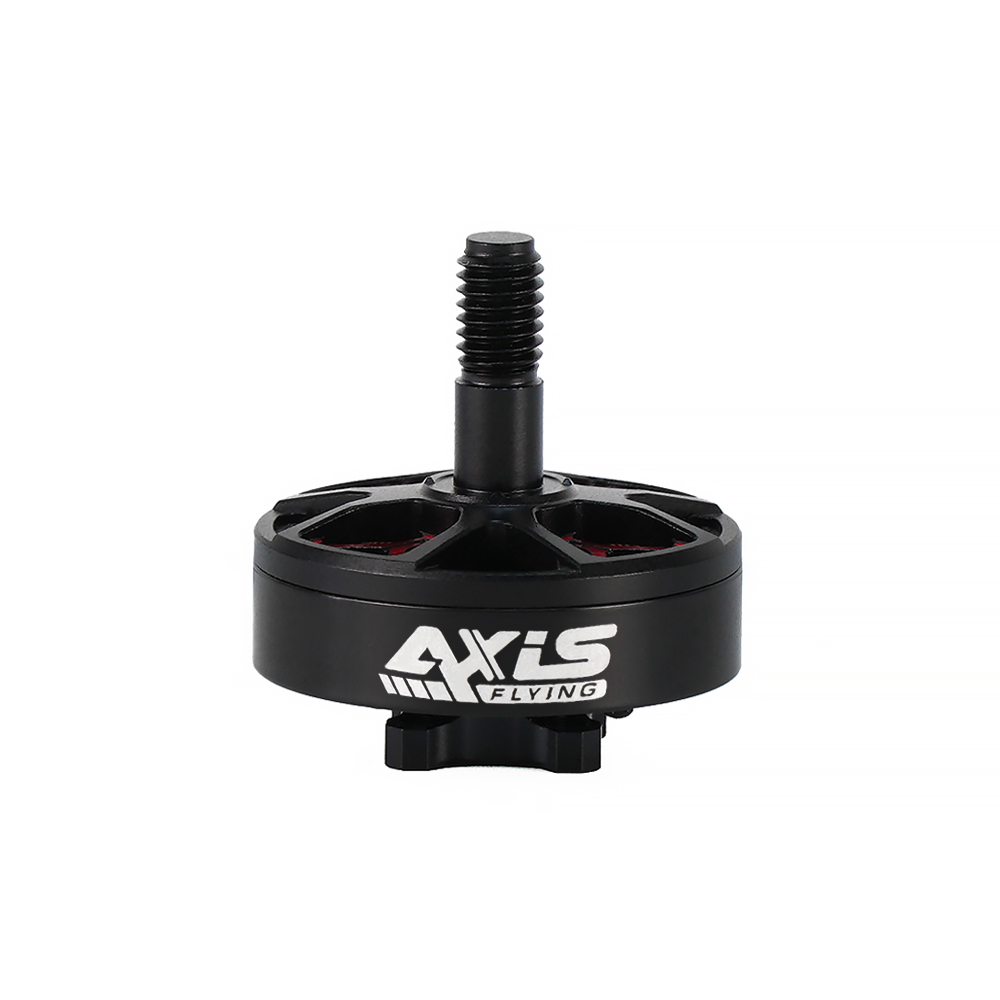

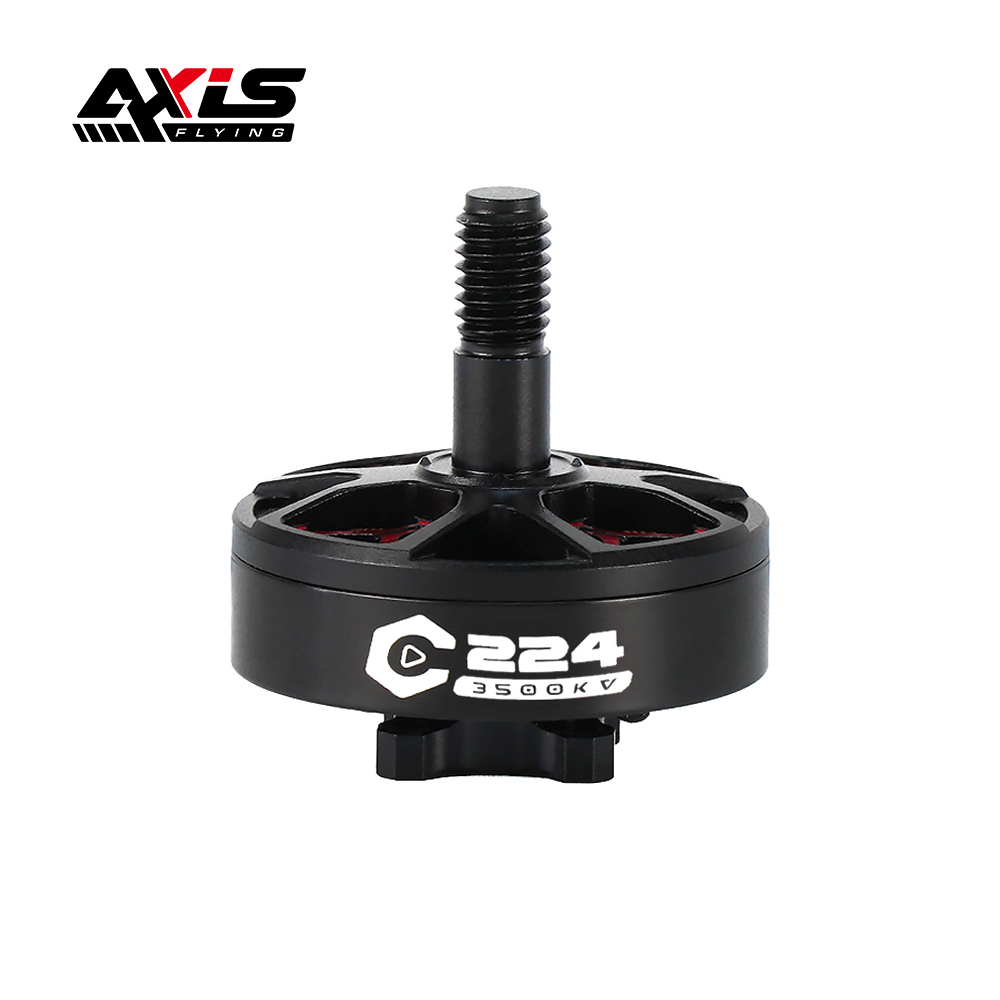

Axisflying fpv brushless motor C224 2204.5 for 3.5inch cinewhoop and cinematic drone

With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

*Forword

- C224 motor is special designed for 3.5inch cinewhoop and cinematic drone that need more powerful and torque.

- It is easy to carry heavy GoPro10 or GoPro11.

- C224 motors run perfect with Gemfan D90-3 or HQ D90-3 props.

- There are 2 KV for options 2300KV @6S ,3500KV@4S

*Bearing Shield Technology

- An IP53 rating dustproof and waterproof bearing placement design.

- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

- Increased thrust effciency and say goodbye to crush motor bearings

*Specs

- 2300KV is for 6S / 3500 KV is for 4S

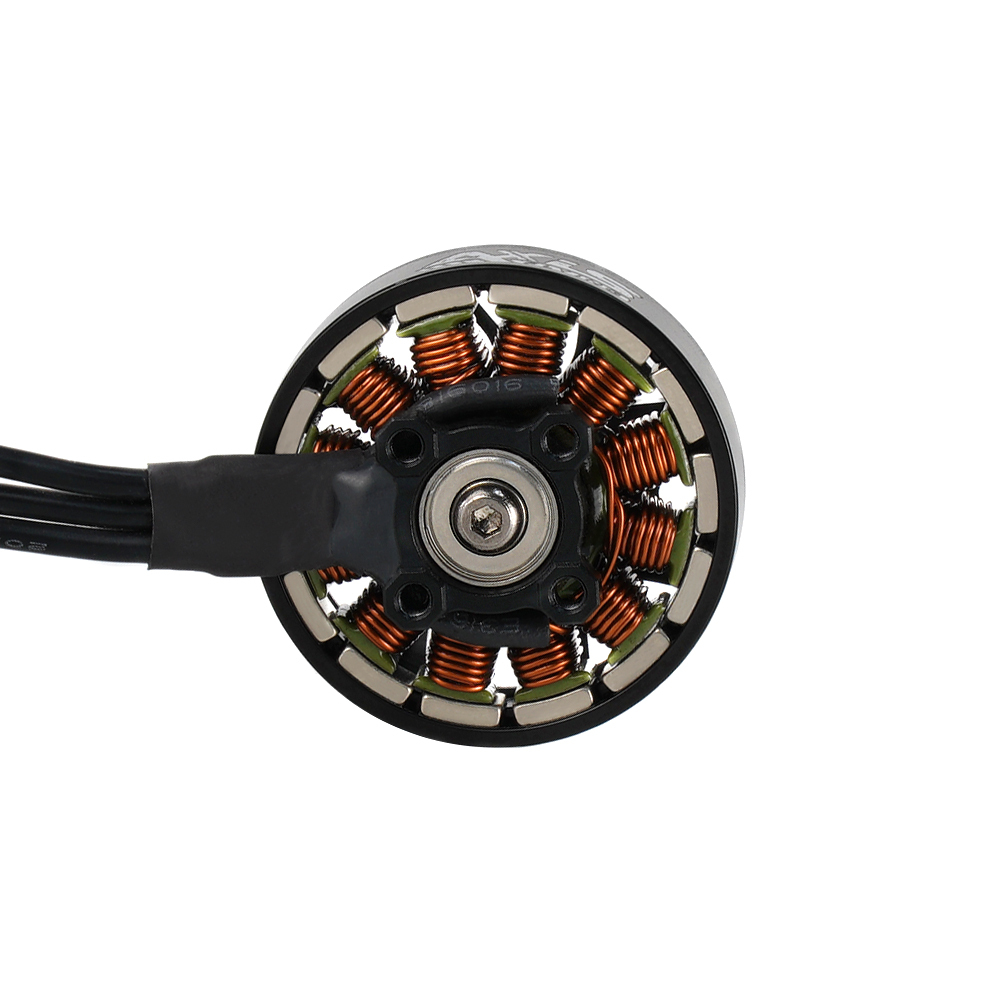

- Configuration: 12N14P / N52H arc magnet

- Motor stator size: 2204.5

- Motor mounting hole size: 4*M2 (Φ12mm)

- Motor cables: AWG 20#, 150MM

- Motor dimensions (Dia *Len): Φ26.9*28.8MM  / M5 shaft

- Motor weight (including 150MM cables) : 21g

- The motor is very powerful that can get over 0.85KG and most current is about 25A

*Package

- 1* C224 motor

- 4* M2*5 screws for motor

- 1* M3*4 screw for lock shaft

- 1* M5 Flanged Nylon Insert lock nut

- 1* O-ring

- 1* Washer
